4 - 6 EA3600 Network Connect Product Reference Guide
The EA3600 is now assigned to the PLC I/O system and appears in the Distributed I/O tree under the
PROFINET network.

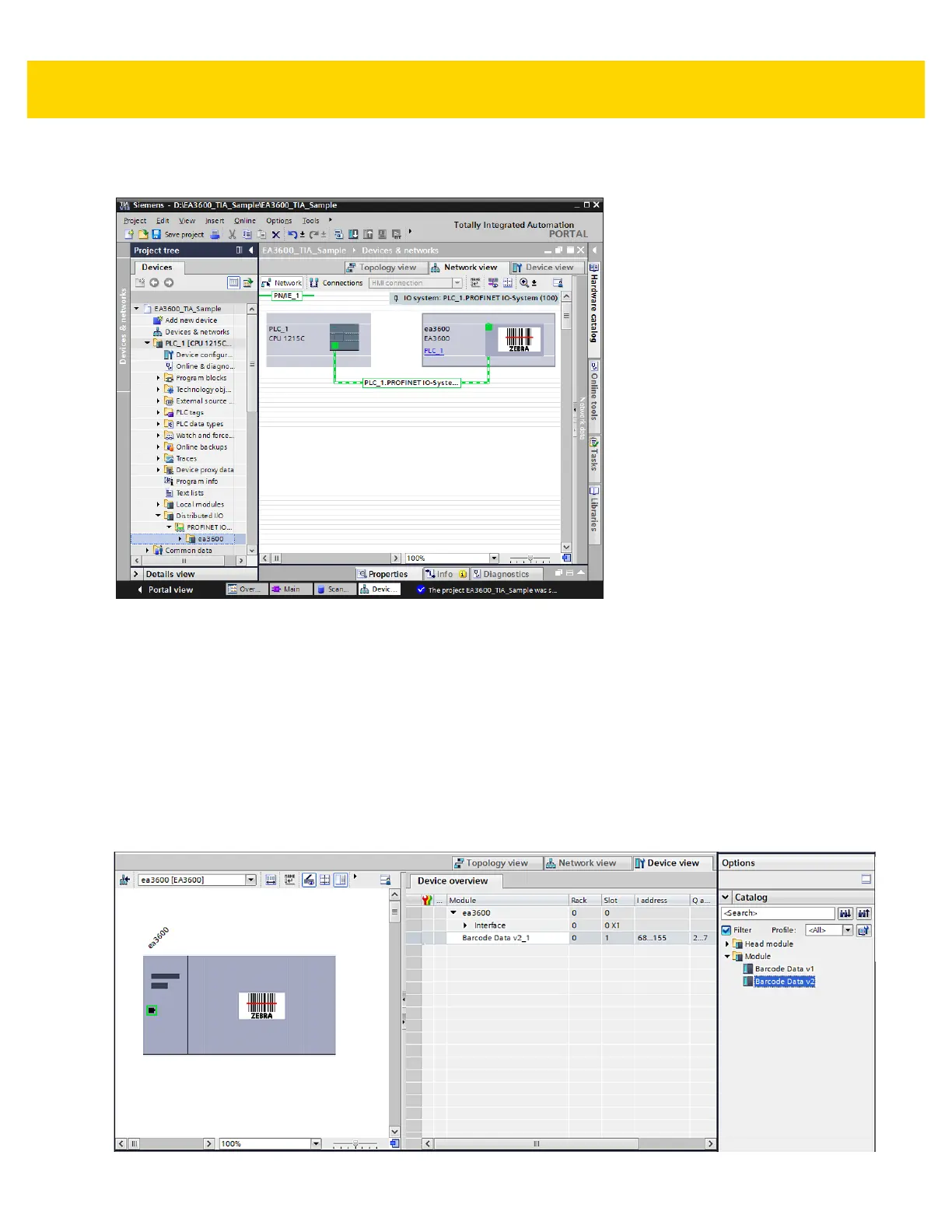

Figure 4-7 Network View with Controller Set
I/O Data Mapping
When the EA3600 is added to the I/O Configuration, input and output data is automatically mapped in the
controllers I/O system based on the GSDML file information. The I/O mapping can be viewed in TIA Portal by
selecting the EA3600 module and going to the Device view tab. The Device Overview provides the input and
output address mapping.
Starting with GSDML file GSDML-V2.33-Zebra-EA3600-2-20181115.xml and EA3600 firmware
CADRJ00-001-R06D0, two versions of I/O mapping are supported. When adding an EA3600 device, the mapping
defaults to the new I/O structure (Barcode Data v2) and is named Barcode Data v2_1 as shown in Figure 4-8.
Figure 4-8 Device Overview Tab - Barcode Data v2_1
