5 - 10 EA3600 Network Connect Product Reference Guide
Configuring Using the EA3600 Add On Profile
Installing the AOP
An Add On Profile (AOP) was developed for making development easier with the EA3600 and Logix Studio 5000
v24.
To install the EA3600 AOP:
1. Download and unzip the file ZT_BAR_Rel16_RELEASE_2.zip on the same computer that is running Logix
Studio 5000.
2. Shutdown any running instances of Logix Studio 5000 and RSLinx Classic.
3. Run the executable file MPSetup.exe and click Next at the Welcome screen.

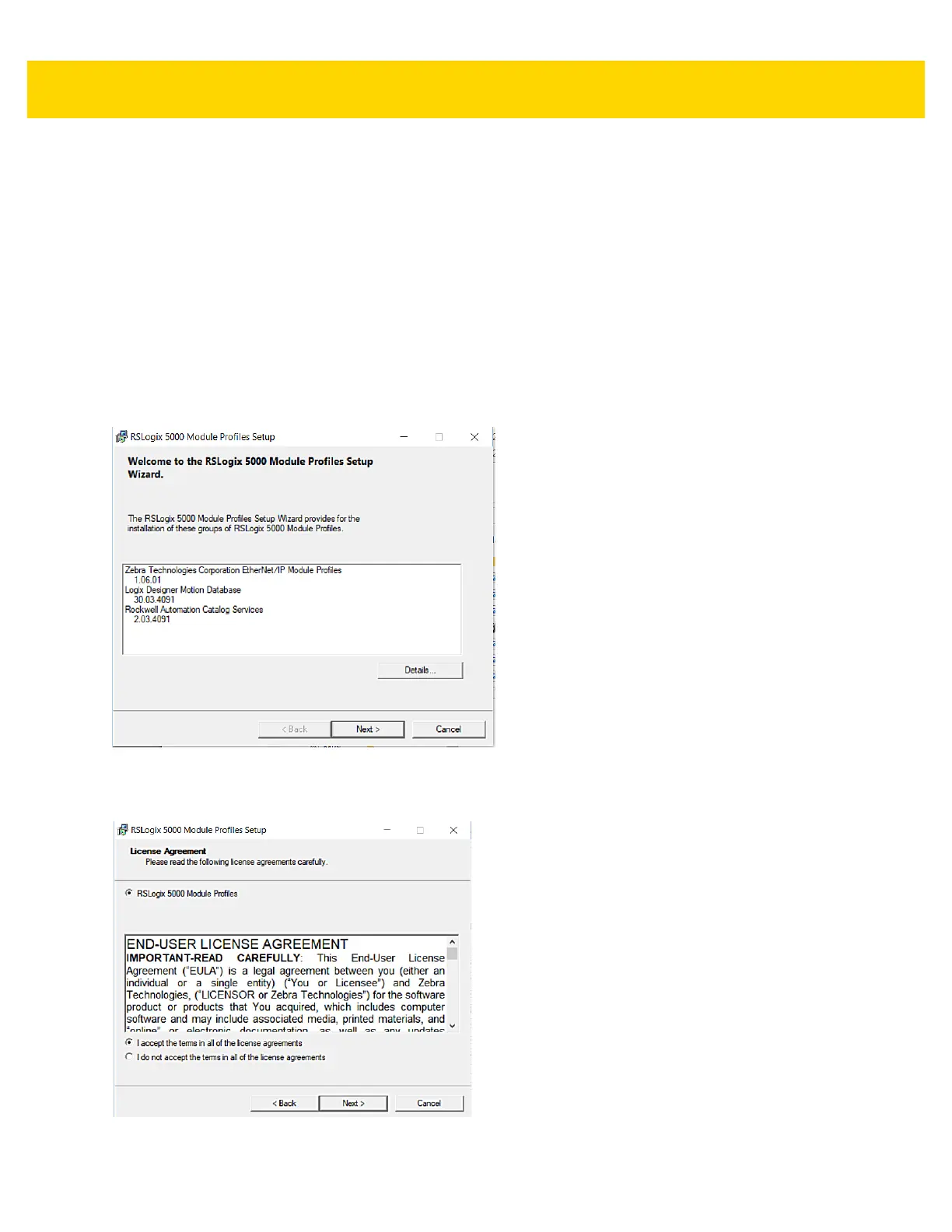

Figure 5-12 RSLogix 5000 Welcome Screen
4. Click Next after accepting the license agreement.
Figure 5-13 RSLogix 5000 License Agreement
