EtherNet/IP Interface 5 - 7
Table 5-1 refers to Figure 5-6.
Configuring Using Generic EtherNet/IP Module
The I/O communications with the EA3600 may also be configured using a Generic EtherNet/IP Module. This is the
required means of configuration for RSLogix versions earlier than v20; however, it may also be used in versions 20
and later, if desired.
Adding the EA3600 to the I/O Configuration
In order for the PLC to communicate with the EA3600, it must be added to the I/O Configuration in the program.
To add the PLC to the I/O configuration program:
1. Expand the I/O configuration tree in the Organizer pane to display the Ethernet network interface.

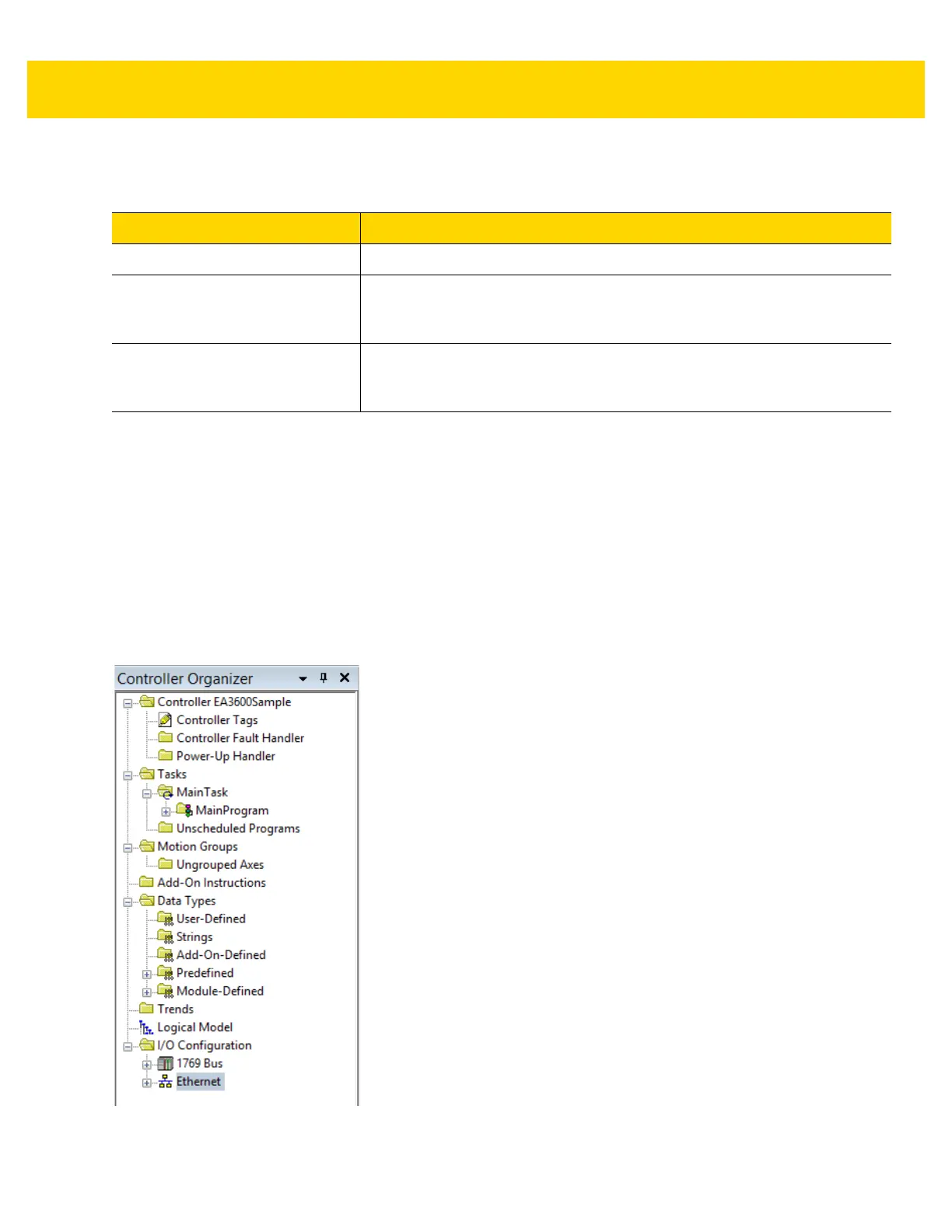

Figure 5-7 I/O Tree Showing Network Interface
2. Right click on the Ethernet interface node in the tree and select New Module…
Table 5-1 EA3600 I/O Tags
Name Data Type Description
scannerName:I.ConnectionFaulted A Boolean tag that indicates if the I/O connection with the EA3600 is faulted.
scannerName:I.Data The Input data buffer holding data this is received from the EA3600. The
buffer is 250 words (500 bytes) long and is formatted as described in
Status
and Barcode Data Assembly on page 5-2
.
scannerName:O.Data The Output data buffer holding data that is sent to the EA3600. The buffer is 3
words (6 bytes) long and is formatted as described in
Barcode Transfer
Control Assembly on page 5-2
.
