5 - 4 EA3600 Network Connect Product Reference Guide
Add the EA3600 to the I/O Configuration
In order for the PLC to communicate with the EA3600, it must be added to the I/O configuration in the program.
To add the I/O configuration:
1. Expand the I/O Configuration tree in the Organizer pane to display the Ethernet network.

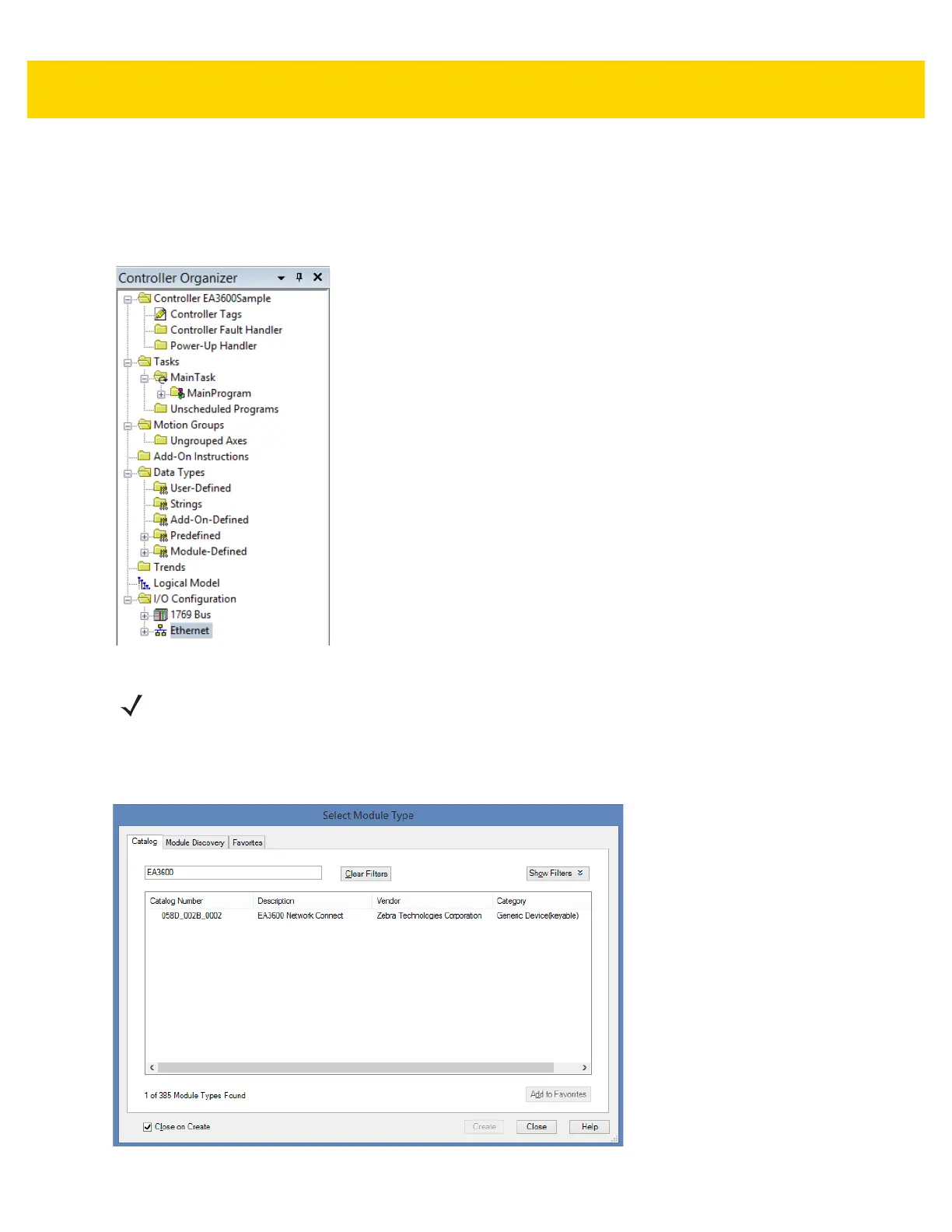

Figure 5-1 I/O Configuration Tree
2. Right-click on the Ethernet node in the tree and select New Module…
3. The Select Module Type dialog displays. Change the Vendor filter to only select Zebra Technologies. The
EA3600 displays in the device list.
Figure 5-2 Select Module Type
NOTE In Figure 5-1, a 1756-EN2T is used as the Ethernet interface. This may be another type of Ethernet
interface module depending on the application.
