5 - 14 EA3600 Network Connect Product Reference Guide
4. Select the EA3600 from the list and click Create button.
5. The New Module dialog displays. Enter the desired name and IP address of the EA3600.

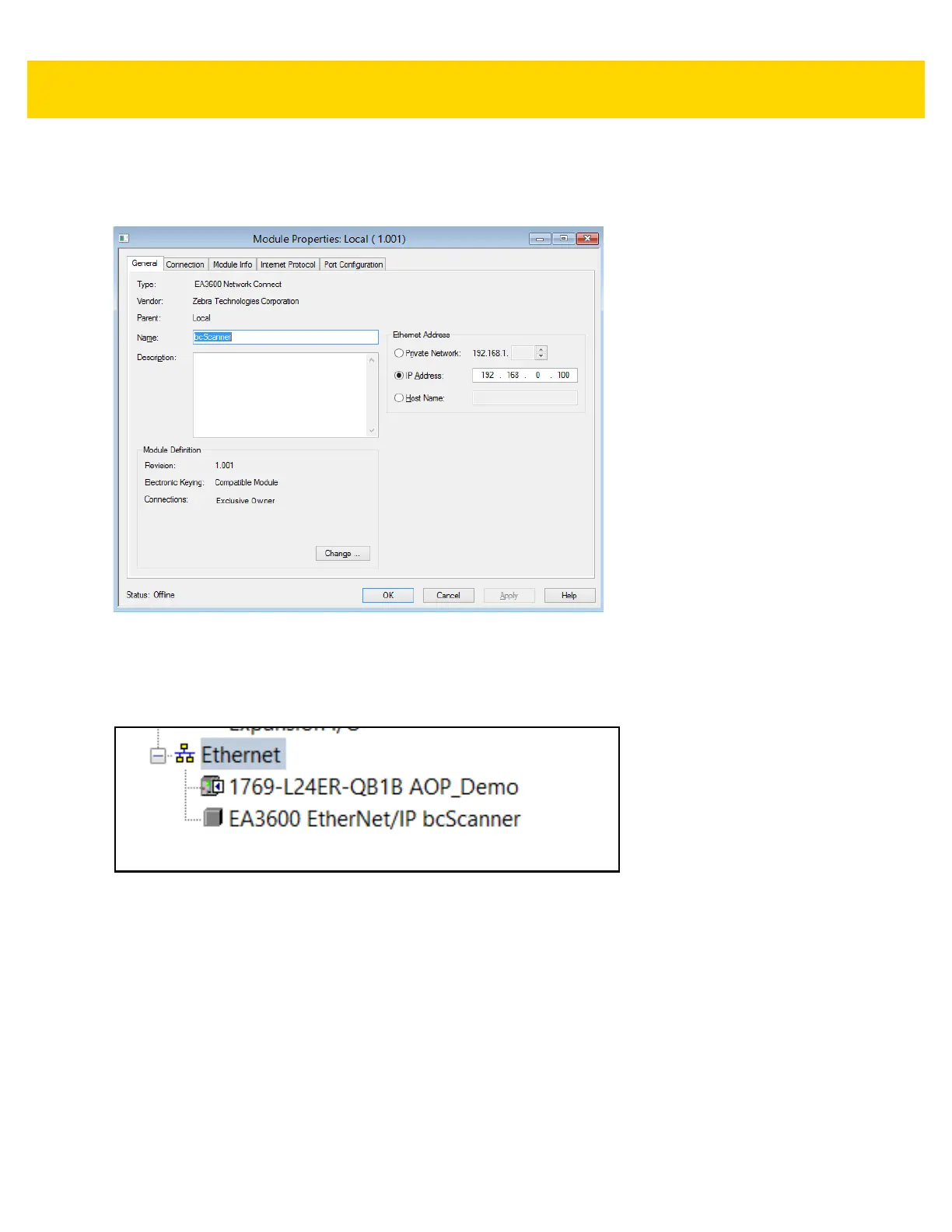

Figure 5-20 New Module, Setting Name and IP Address
6. Click OK.
7. The EA3600 is added to the I/O configuration and appears in the tree.
Figure 5-21 EA3600 Added to the Tree
