Accessories
42
1-Slot Ethernet Charge Cradle
The 1-Slot USB Charge Cradle:
• Provides 5 VDC power for operating the device.
• Charges the device’s battery.
• Provides USB communication with host computer.
• Provides USB and Ethernet communication using the Ethernet Bracket and Module adapter.

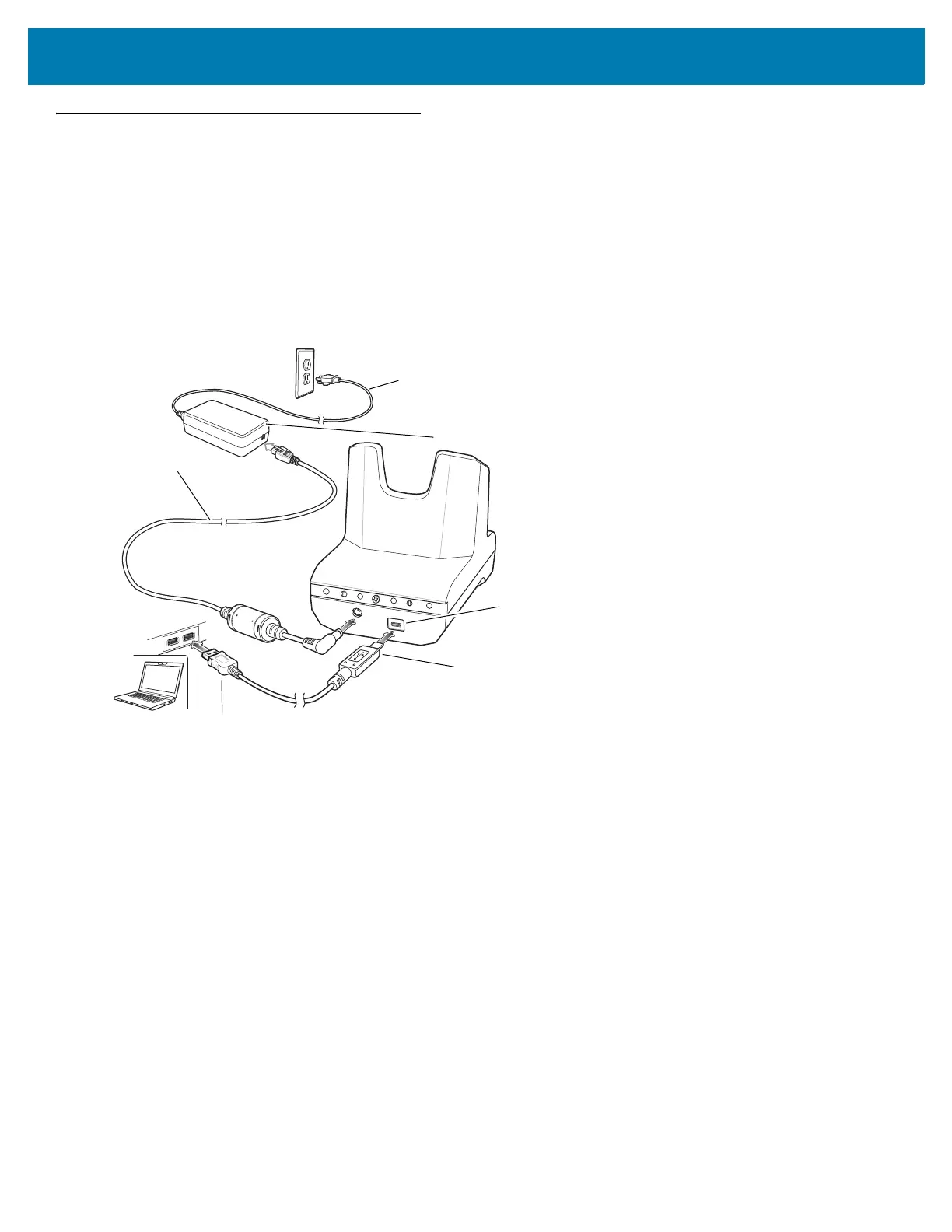

Figure 26 1–Slot USB Charge Cradle Setup
Ethernet Bracket Installation
To install the Ethernet Bracket:
1. Turn over the Ethernet Bracket.
2. Remove the thumbscrew securing the plate to the bracket.
AC Line Cord
Power Supply
USB micro-B Connector
DC Line Cord
USB micro-AB Port
USB A Connector
To Next Page
