Accessories
47
Ethernet LED Indicators
There are two LEDs on the USB/Ethernet Module RJ-45 port. The green LED lights to indicate that the transfer rate
is 100 Mbps. When the LED is not lit the transfer rate is 10 Mbps. The yellow LED blinks to indicate activity, or
stays lit to indicate that a link is established. When it is not lit it indicates that there is no link.

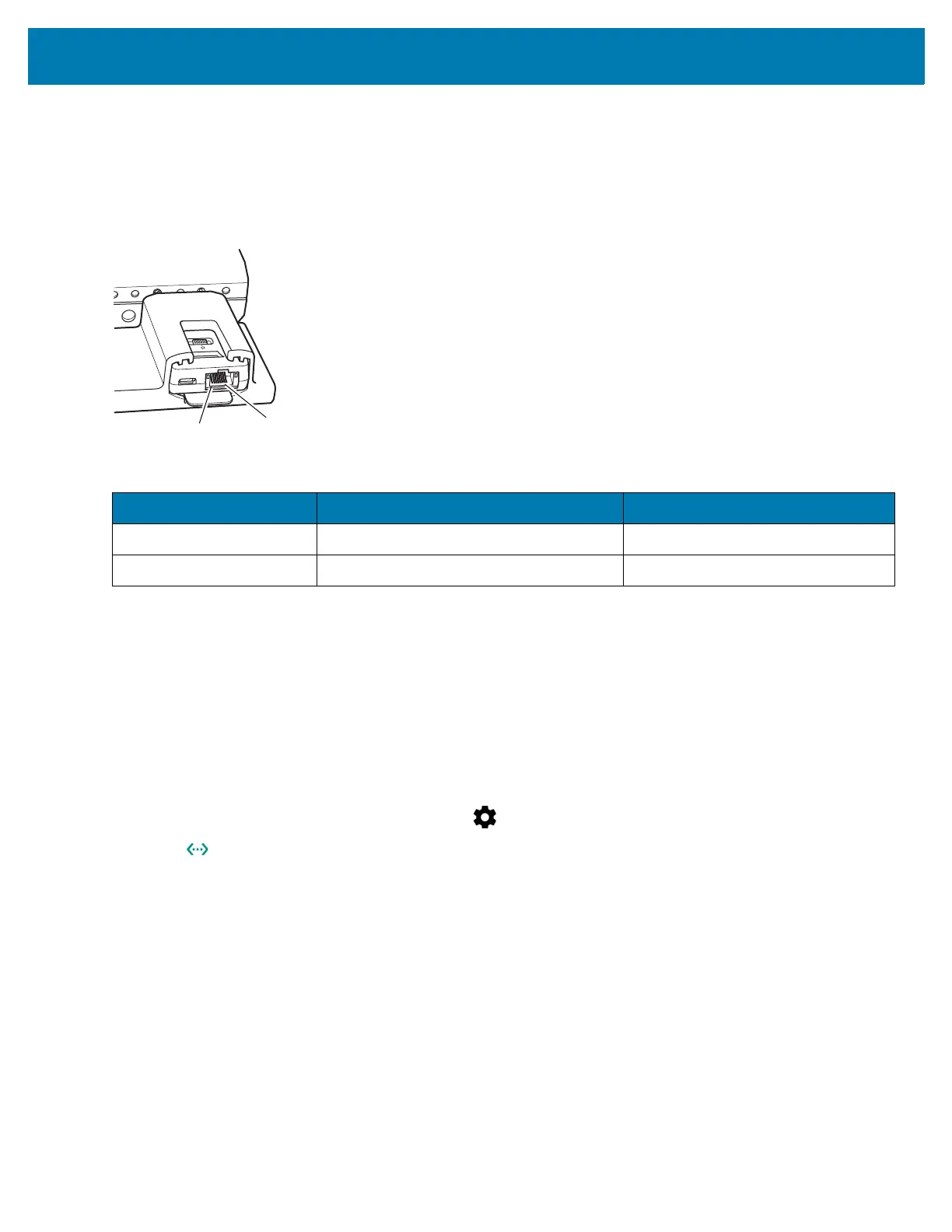

Figure 36 LED Indicators
Ethernet Settings
The following settings can be configured when using Ethernet communication:
• Proxy Settings
• Static IP.
Configuring Ethernet Proxy Settings
The TC25 includes Ethernet cradle drivers. After inserting the TC25, configure the Ethernet connection:
1. Swipe down from the status bar and then touch .
2. Touch Ethernet.
3. Place the TC25 into the Ethernet cradle slot.
4. Slide the switch to the ON position.
5. Touch and hold Eth0 until the menu appears.
6. Touch Modify Proxy.
7. Touch the Proxy drop-down list and select Manual.
Table 2-1 USB/Ethernet Module LED Data Rate Indicators
Data Rate (1) Amber LED (2) Green LED
100 Mbps On/Blink On
10 Mbps On/Blink Off
