Accessories
51
5-Slot Charge Only Cradle
The 5-Slot Charge Only Cra
dle:
•
Provides 5 VDC power for operating th
e TC25.
•
Simultaneously
charg
es up to five TC25s.

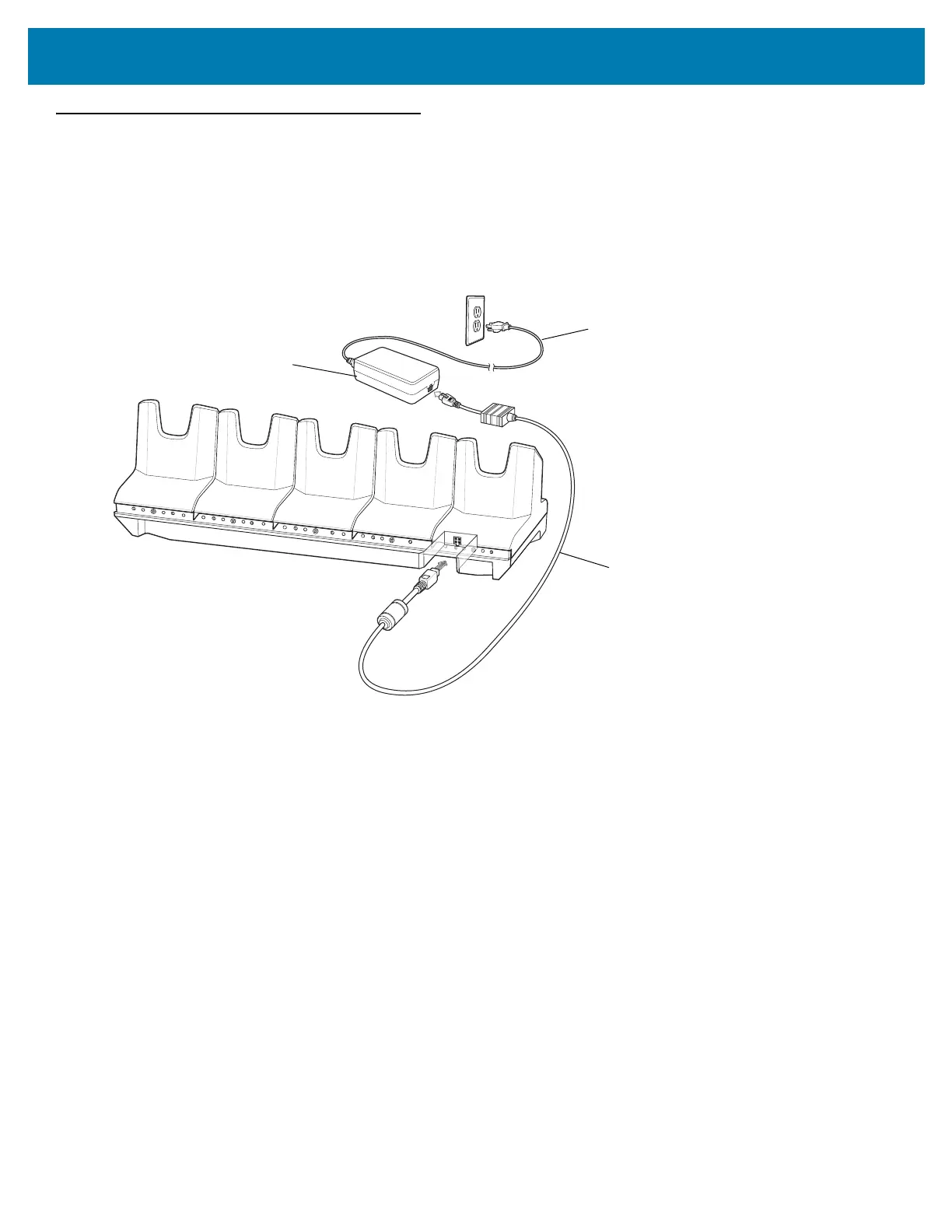

Figure 40
5-Slot Charge Only Cradle Setup
Charging the TC25
To charge a device:
1.
Insert the TC25 into a slot to
begin charging.
AC Line Cord
DC Line Cord
Power Supply
43
