Accessories
65
Wall Installation
Use the Rack/Wall Mount Bracket to mount a 5-Slot Charge Only cradle on a wall. When installing on a wall, first
assemble the bottom tray, install the bottom tray on the wall and then assemble the top tray.
Use mounting hardware (screws and/or anchors) appropriate for the type of wall mounting the bracket onto. The
Mount Bracket mounting slots dimensions are 5 mm (0.2 in.). Fasteners must be able to hold a minimum of 20 Kg
(44 lbs.)
For proper installation consult a professional installer. Failure to install the bracket properly can possibly result in
damage to the hardware.
Bottom Tray Assembly
See steps 1 through 5 on page 58 for instructions.
Bracket Wall Mounting
1. Drill holes and install anchors according to the template supplied with the bracket.
2. Install two screws for bottom of bracket. The screw heads should protrude 2.5 mm (0.01”) from the wall.

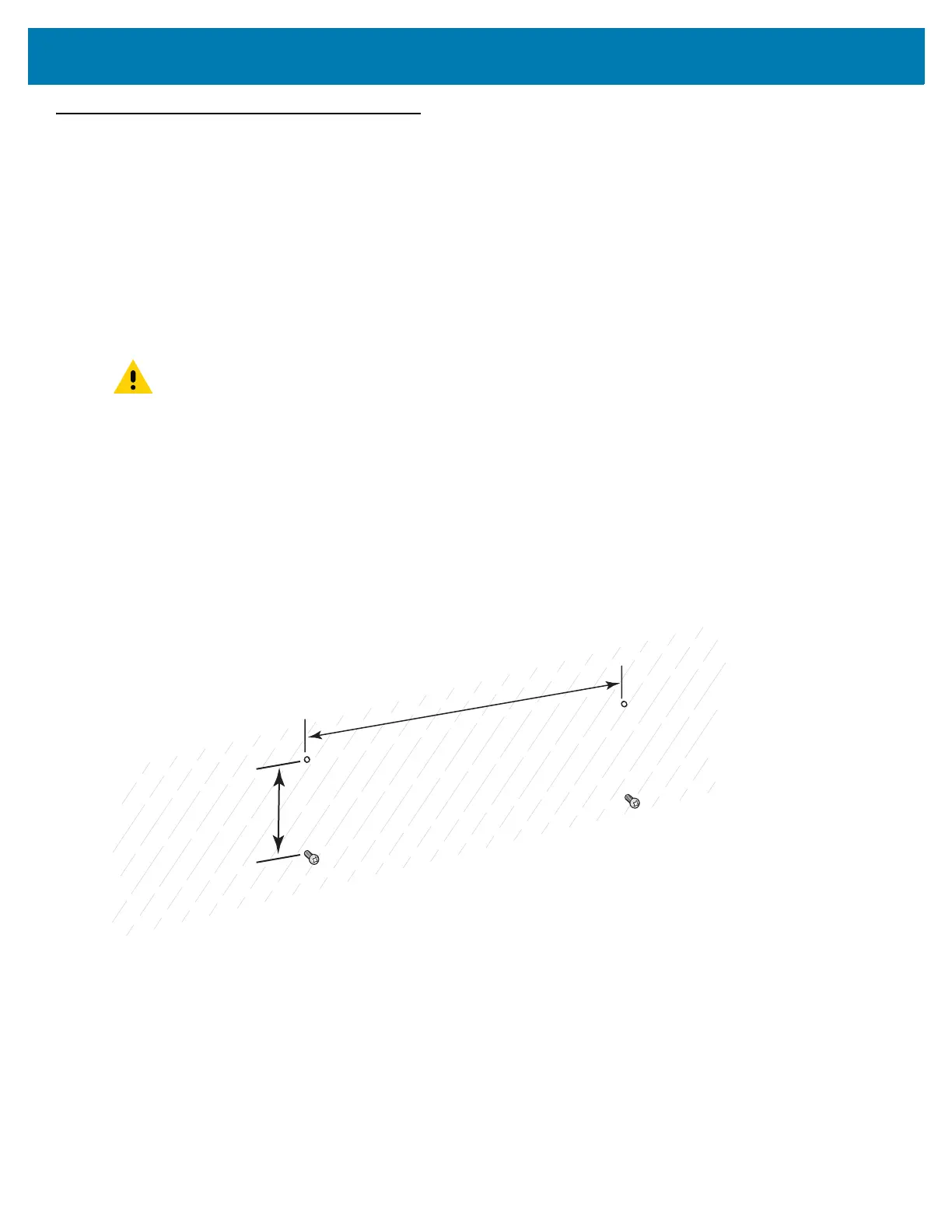

Figure 61 Horizontal Mounting Template
3. Align the mounting bracket’s bottom mounting key holes with the screws.
4. Hang the bracket on the screws.
CAUTION Install mounting bracket with 5-Slot Charge Only cradle at a maximum height of four feet from ground.
