Zebra TC25 Integrator Guide

Accessories
66

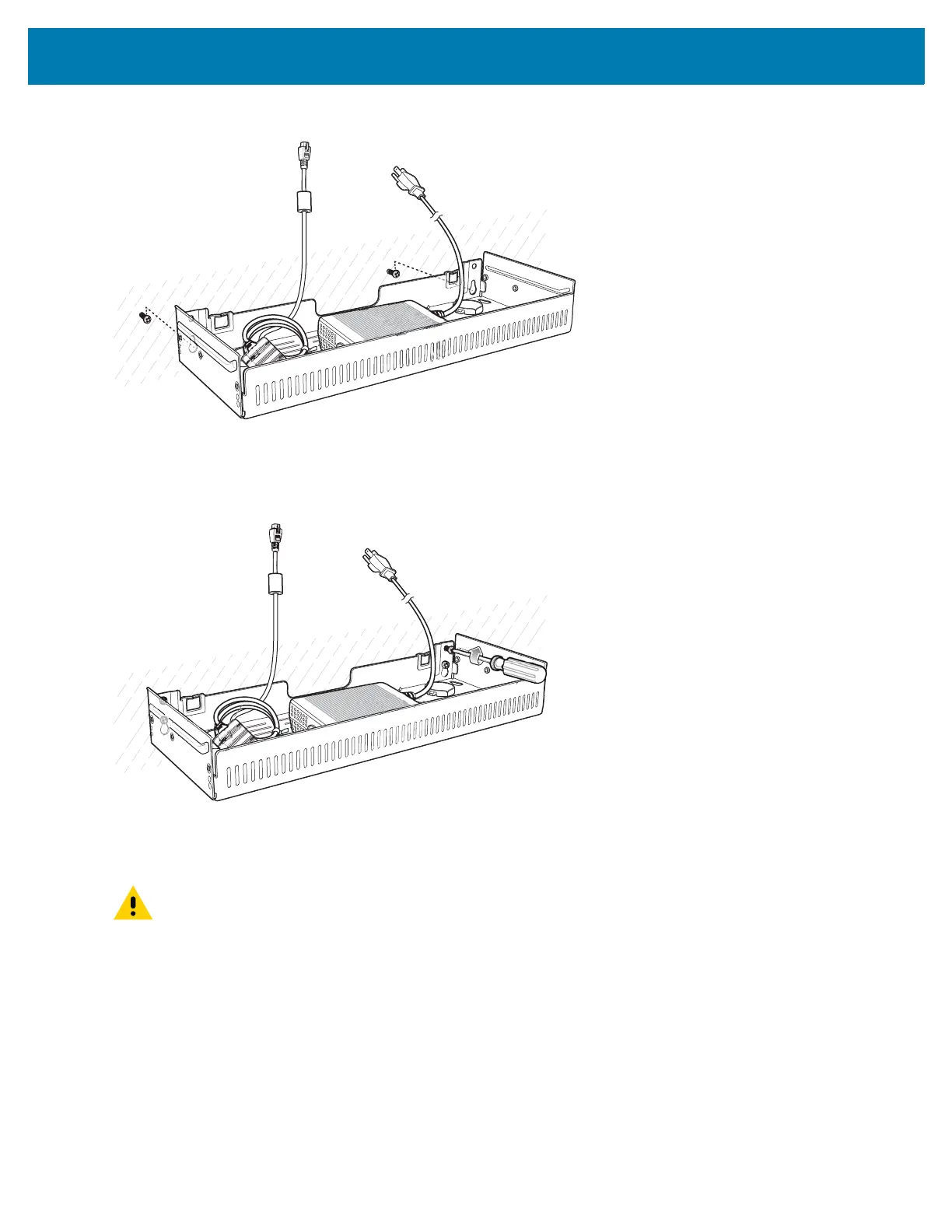

Figure 62 Horizontal Installation
5. Install two top screws.
6. Tighten all screws.
Figure 63 Horizontal Installation - Tighten Screws
7. Assembly the 5-Slot Charge Only cradle onto the bracket. See steps 7 through 11 on page 58.
8. Route cables and connect to power source.
While installing the brackets, power supplies and cables:
• Use tie wraps to secure cables to the bracket and rails.
• Coil cables wherever possible.
• Route power cables along the rails.
• Route inter-cradle cables to the side rails and then from the rails to the bracket.
CAUTION Installer should ensure that all building codes are followed when connecting the power supplies to an
AC power source.
