Rack Mount Installation
1. Secure mounting brackets to both sides of top tray with four M5 screws (two on each side).

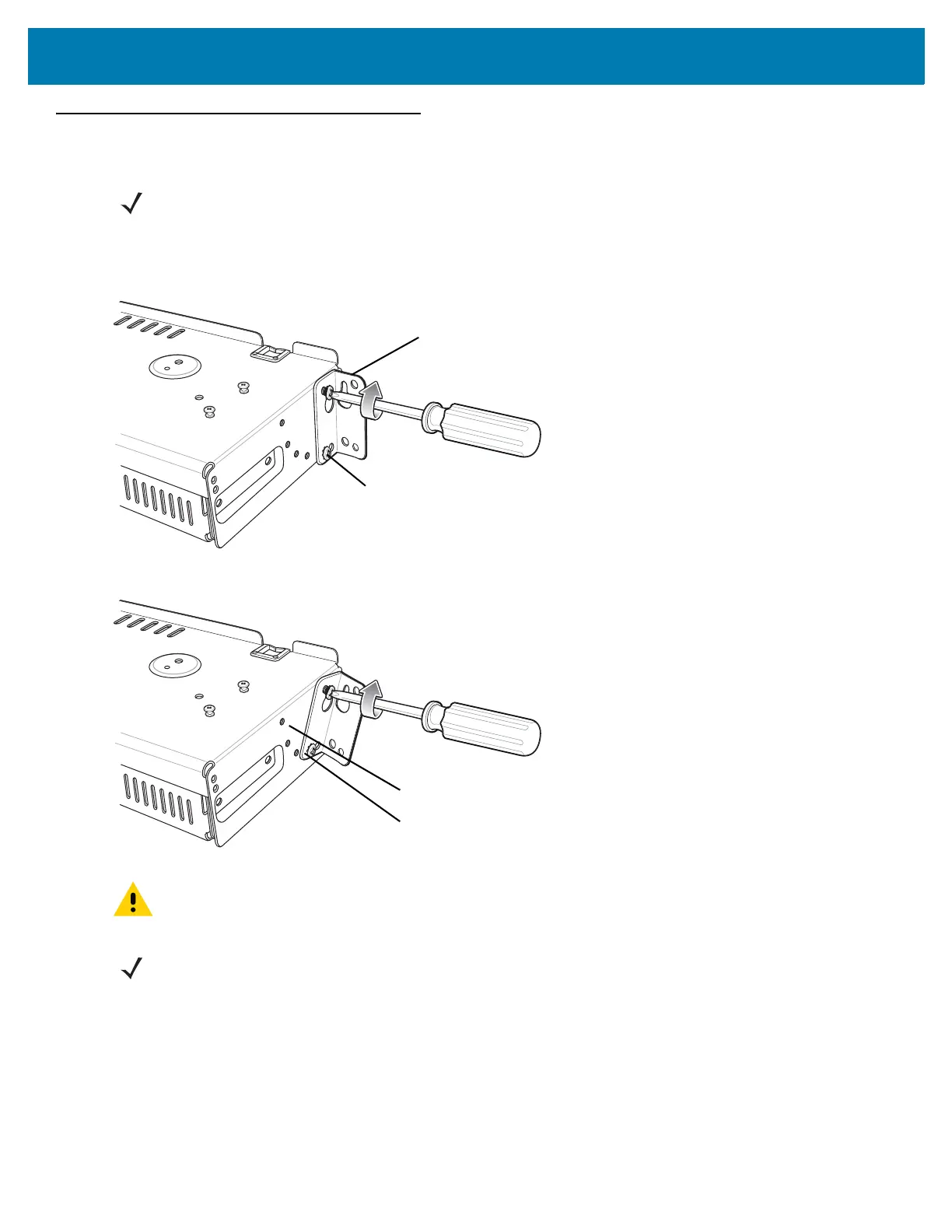

Figure 57 Flange Horizontal Position
Figure 58 Flange 25° Position
2. Install two rack system screws for top of mounting brackets. The screw heads should protrude half way from
the rail.
NOTE Use screws provided with rack system. Refer to rack user documentation for instructions.
CAUTION Install mounting bracket with 5-Slot cradle at a maximum height of four feet from ground.
NOTE Distance between two horizontal mounted brackets should be at least 14.5” apart (from top of one flange to
the top of the next flange).
Distance between two 25° mounted brackets should be at least 12” apart (from top of one flange to the top of
the next flange).
