Zebra TC25 User Manual

Data Capture
102
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the RS507 at a barcode.

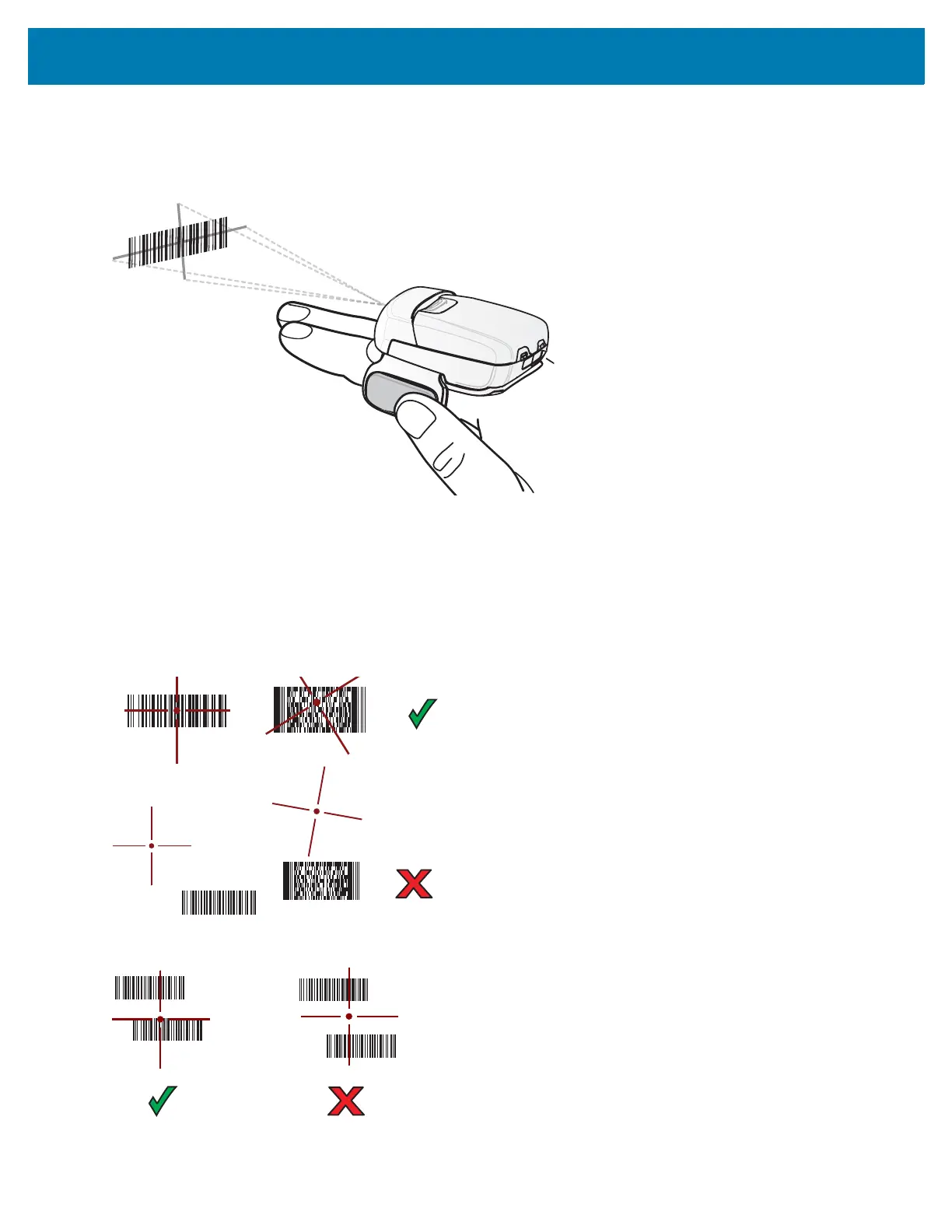

Figure 93 barcode Scanning with RS507
3. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed by the
cross-hairs in the aiming pattern. The aiming dot is used for increased visibility in bright lighting conditions.
The RS507 LEDs light green, a beep sounds to indicate the barcode was decoded successfully. Note that
when the RS507 is in Pick List Mode, the RS507 does not decode the barcode until the center of the crosshair
touches the barcode.
Figure 94 Aiming Pattern
Figure 95 Pick List Mode with Multiple barcodes in Aiming Pattern
4. The captured data appears in the text field.
