Zebra TC25 User Manual

Getting Started
14
Features

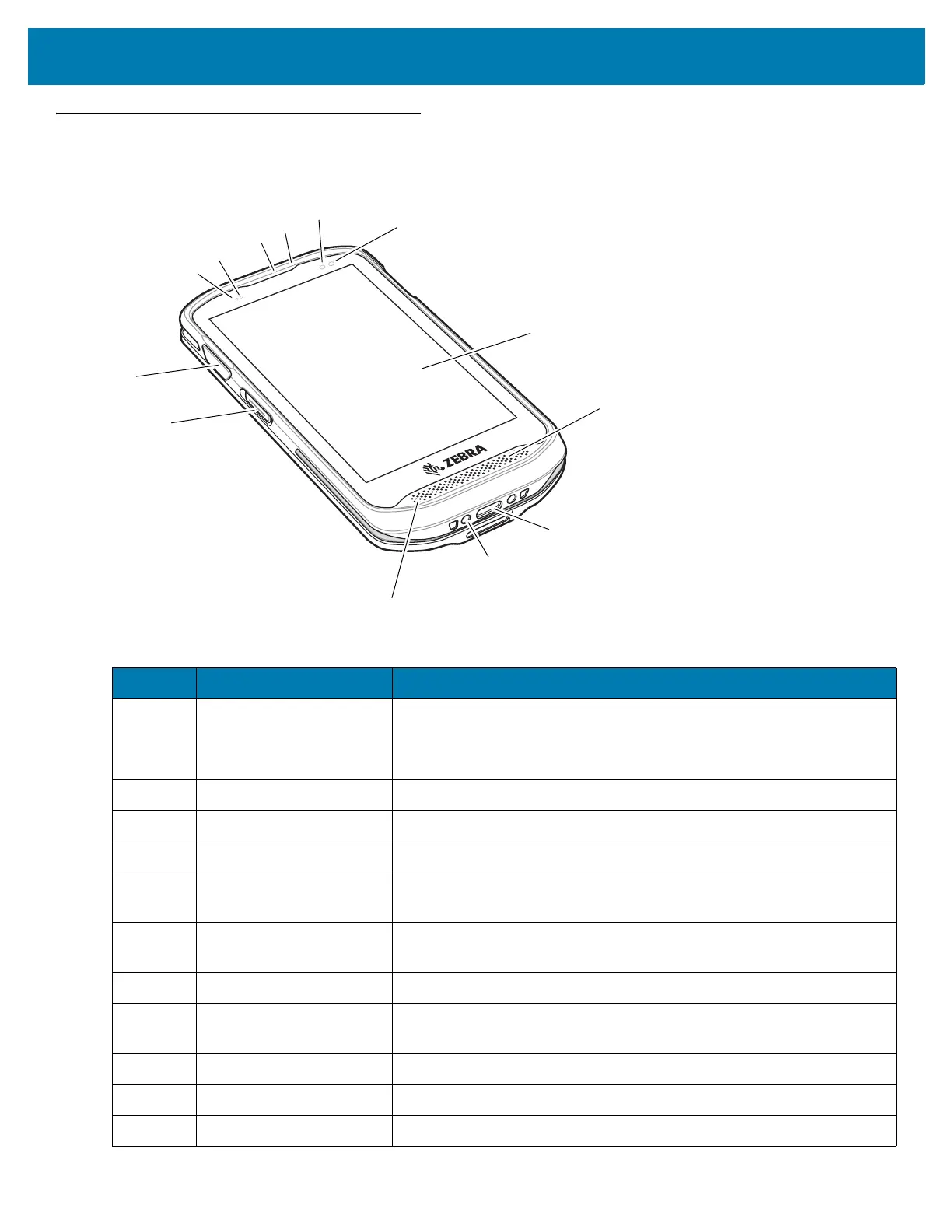

Figure 1 TC25 Front View
Table 2 Front View Features
Number Item Function
1 Scan Button Initiates data capture (programmable).
Yellow button: TC25 with SE4710 imager.
Gray button: TC25 with SE2100 imager.
2 PTT Button Initiates push-to-talk communications (programmable).
3 Microphone Use for communications in Handset mode.
4 Power Contacts Provides power for charging the TC25.
5 USB-C Connector Provides USB host and client communications, and device charging via
cables and accessories.
6 Speaker Provides audio output for video and music playback. Provides audio in
speakerphone mode.
7 Touch Screen Displays all information needed to operate the TC25.
8 Charging/Notification LED Indicates battery charging status while charging and application
generated notifications.
9 Data Capture LED Indicates data capture status.
10 Microphone Use for communications in Speakerphone mode.
11 Receiver Use for audio playback in Handset mode.
7
1
2
3
4
5
8
9
11
12
10
6
13
