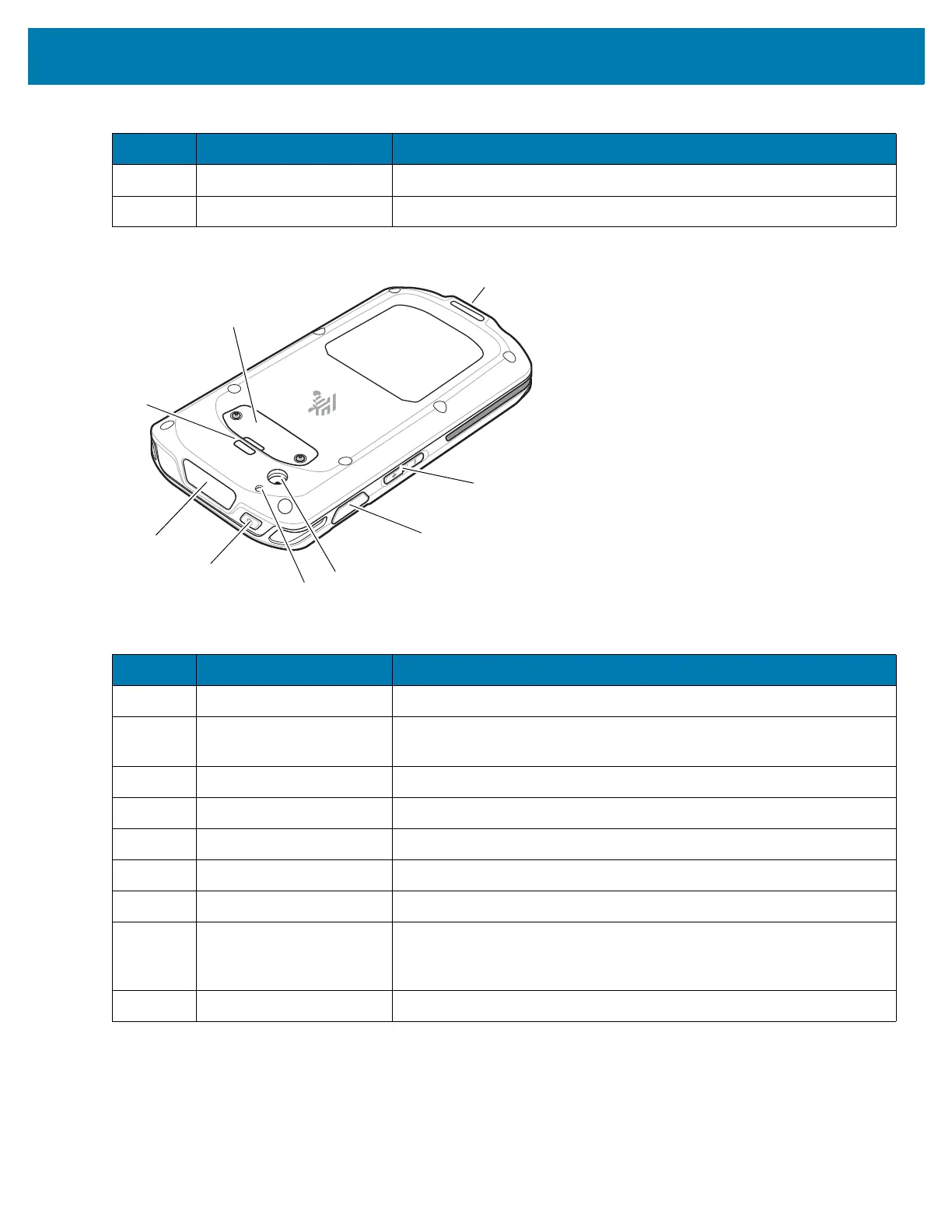

Figure 2 TC25 Rear View
12 Light Sensor Determines ambient light for controlling display backlight intensity.
13 Proximity Sensor Determines proximity for turning off display when in handset mode.
Table 3 Back View Features
Number Item Function
1 Imager Window Provides data capture using the imager.
2 Power Button Turns the display on and off. Press and hold to reset the device or
power off the device.
3 Camera Flash Provides illumination for the camera.
4 Camera Takes photos and videos.
5 Scan Button Initiates data capture.
6 Volume Up/Down Button Increase and decrease audio volume.
7 Hand Strap Mount Point Provides latching point for the hand strap.
8 Access Door Provides access to microSD card slot and SIM card slot. Optional 2-Pin
Access Door is available on device with the SE4710 imager for use with
the Trigger Handle.
9 Hand Strap Mount Point Provides latching point for the hand strap.
Table 2 Front View Features (Continued)
Number Item Function
5
4
1
2
8
6
3
9
7
