Pairing the Bluetooth Imager
To connect the RS507 or RS6000 imagers to the TC25, use one of the following methods:
• Simple Serial Interface (SSI)
• Bluetooth Human Interface Device (HID) Mode.
Pairing Using Simple Serial Interface
To pair the RS507/RS6000 with the TC25 using SSI:
1. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
2. Install the battery into the RS507/RS6000.
3. On the TC25, swipe up from the bottom of the Home screen and touch .

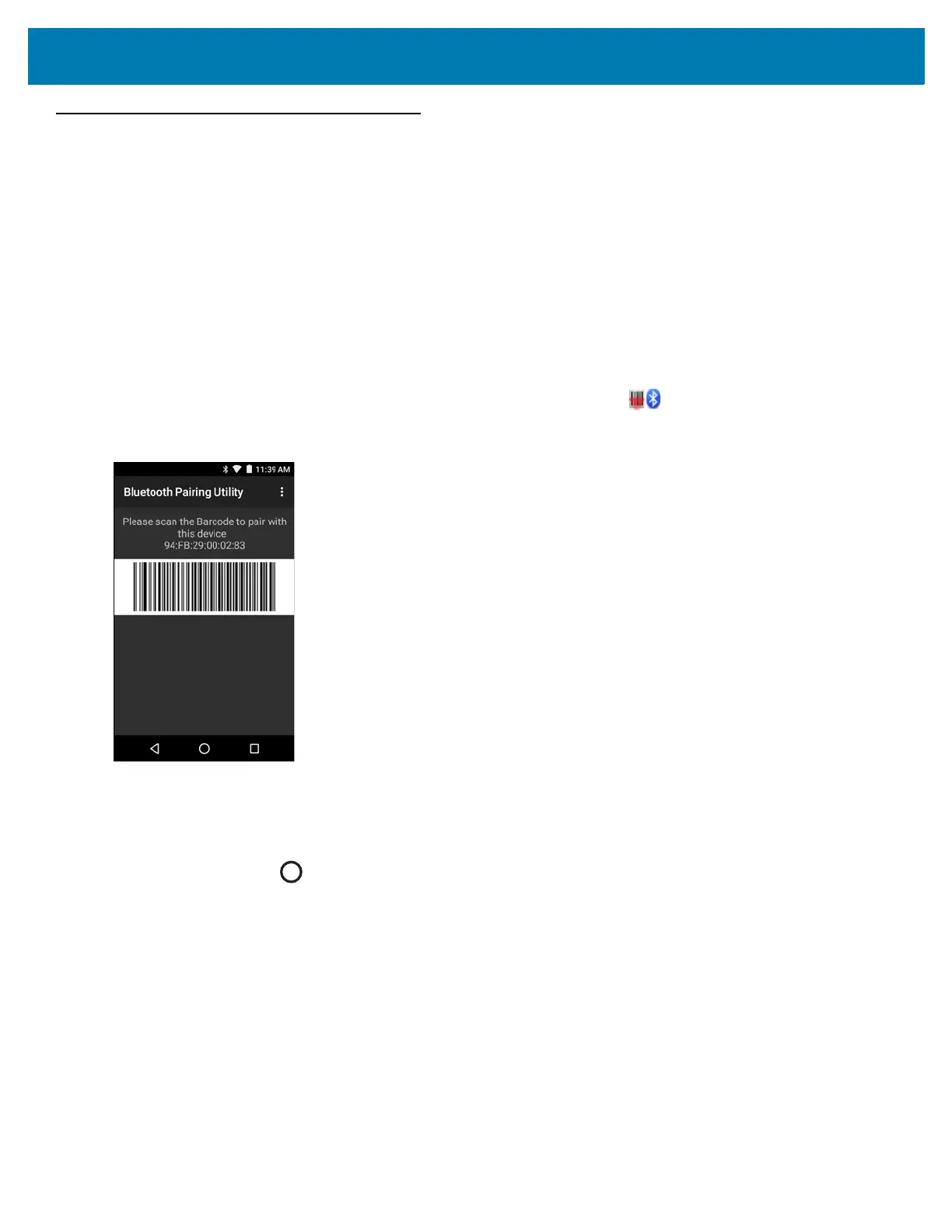

Figure 96 Bluetooth Pairing Utility
4. Using the RS507/RS6000, scan the barcode on the screen.
The RS507/RS6000 emits a high/low/high/low beeps. The Scan LED flashes green indicating that the
RS507/RS6000 is attempting to establish connection with the TC25. When connection is established, the Scan
LED turns off and the RS507/RS6000 emits one string of low/high beeps.
5. On the TC25, touch .
Pairing Using Bluetooth Human Interface Device
To pair the RS507/RS6000 with the TC25 using HID:
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable mode.
3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
4. Place the RS507/RS6000 in Human Interface Device (HID) mode. If the RS507/RS6000 is already in HID
mode, skip to step 5.
a. Remove the battery from the RS507/RS6000.
b. Press and hold the Restore key.
To Next Page
