Zebra TC25 User Manual

Data Capture
101

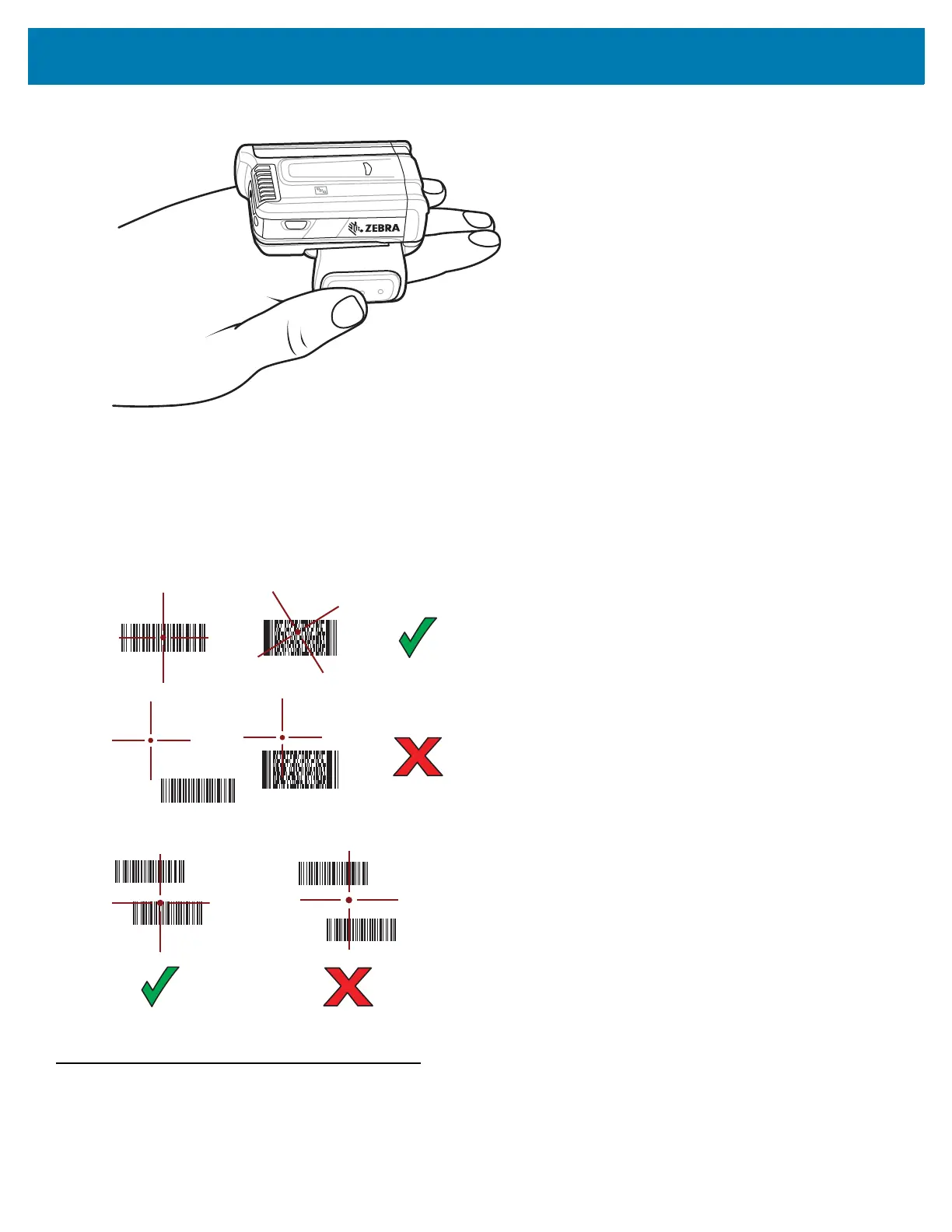

Figure 90 Barcode Scanning with RS6000
3. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed by the
cross-hairs in the aiming pattern. The aiming dot is used for increased visibility in bright lighting conditions.
The RS6000 LEDs light green, a beep sounds to indicate the barcode was decoded successfully. Note that
when the RS6000 is in Pick List Mode, the RS6000 does not decode the barcode until the center of the
crosshair touches the barcode.
Figure 91 Aiming Pattern
Figure 92 Pick List Mode with Multiple barcodes in Aiming Pattern
4. The captured data appears in the text field.
Barcode Capture with RS507 Hands-Free Imager
Pair the RS507 with the TC25. See Pairing the Bluetooth Imager on page 103 for more information.
