Zebra TC25 - Inserting the Device into the Trigger Handle

Accessories
134

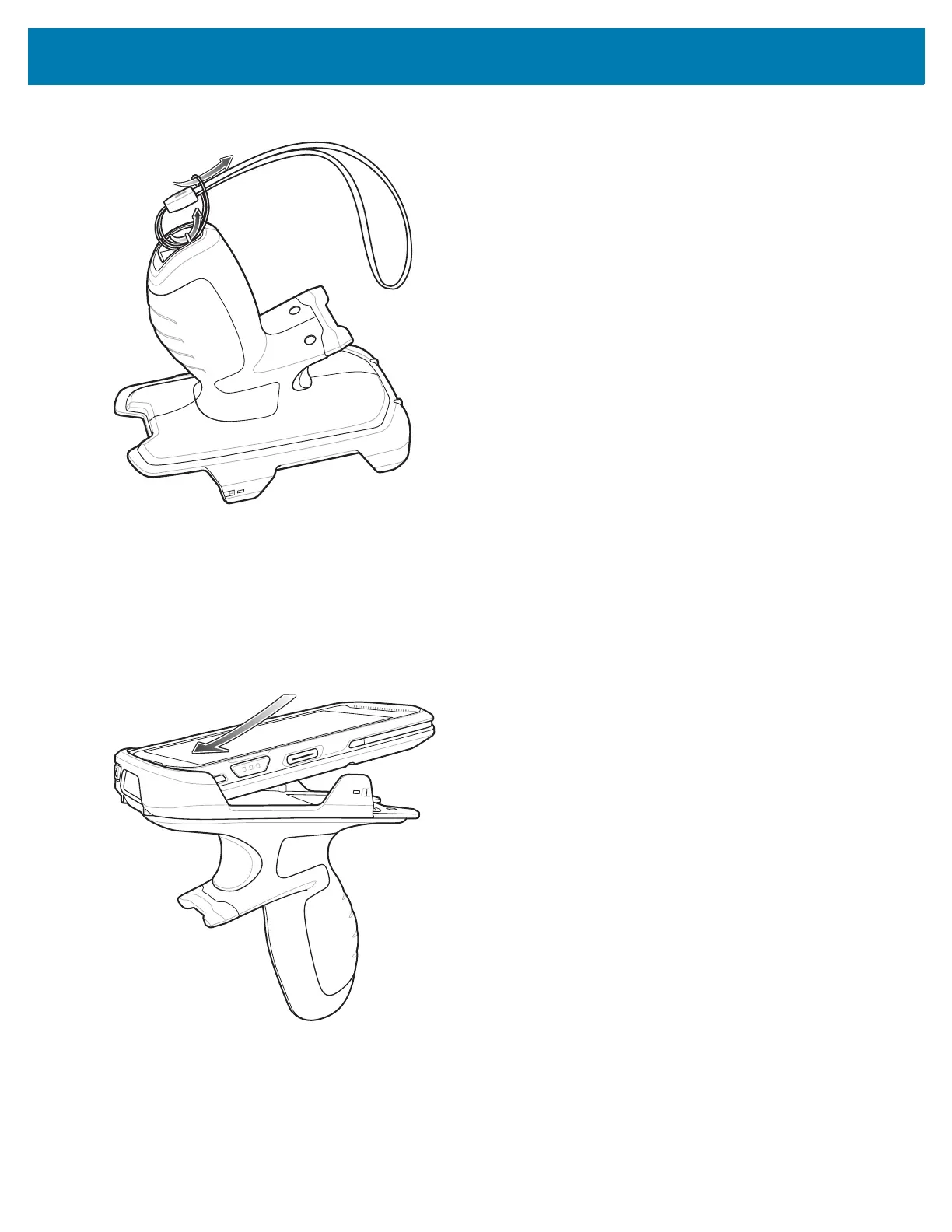

Figure 120 Install Attachment Plate to Handle
3. Pull the lanyard until the loop tightens.
Inserting the Device into the Trigger Handle
To install the device onto the Trigger handle:
1. Align and insert the top of the TC25 into the front of the Trigger Handle.
Figure 121 Insert Device into Trigger Handle
2. Rotate the device down and press down until it snaps into place.
1
2
