Ensure the battery is seated properly.
USB and Ethernet Communication
The 2–Slot USB/Ethernet Cradle provides both Ethernet communication with a network and USB
communication with a host computer. Prior to using the cradle for Ethernet or USB communication. Ensure
that the switch on the USB/Ethernet module is set properly.
Turn the cradle over to view the module.

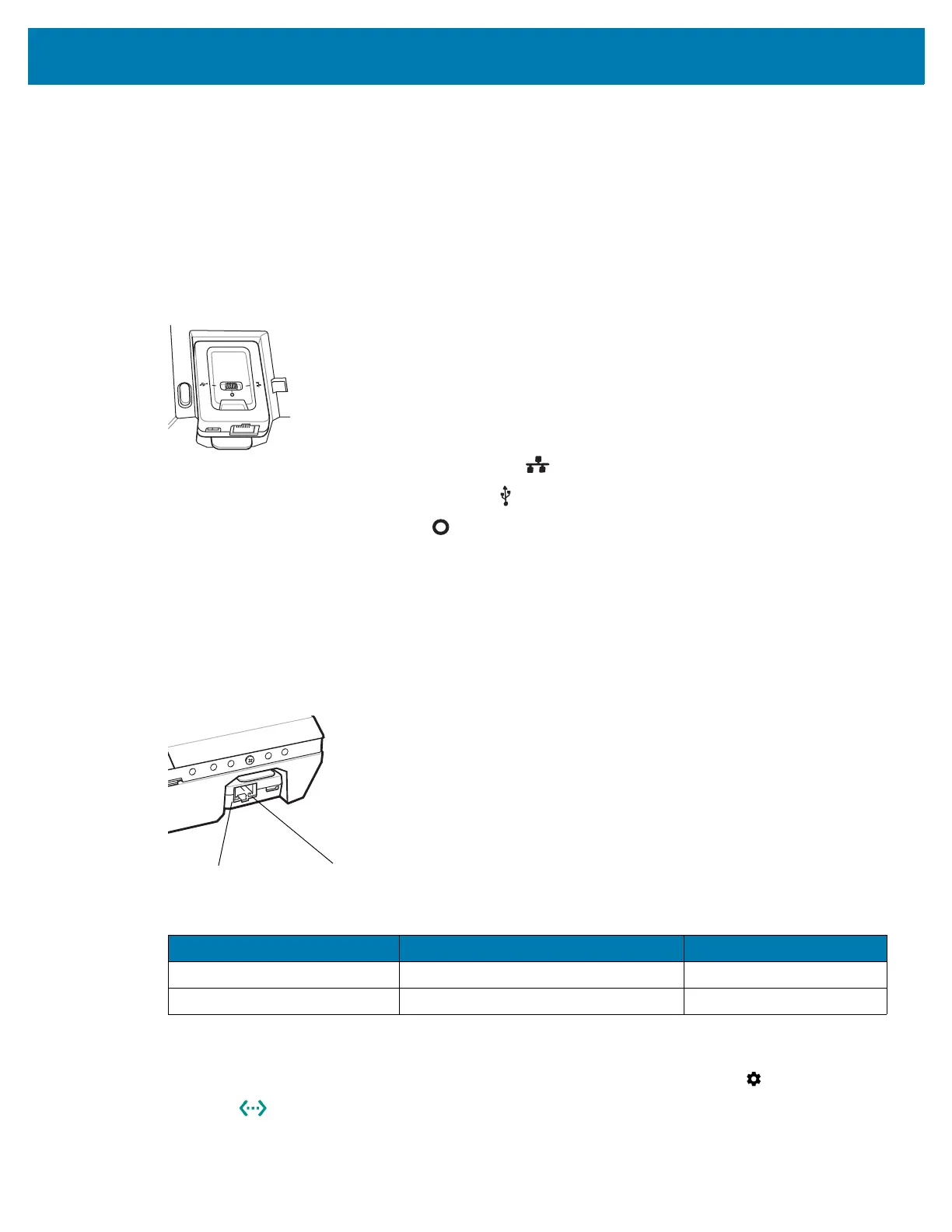

Figure 32 2–Slot USB/Ethernet Cradle Module Switch
For Ethernet communication, slide the switch to the position.
For USB communication, slide the switch to the position.
Place the switch in the center position to disable communications.
Ethernet LED Indicators
There are two LEDs on the USB/Ethernet Module RJ-45 connector. The green LED lights to indicate that
the transfer rate is 100 Mbps. When the LED is not lit the transfer rate is 10 Mbps. The yellow LED blinks
to indicate activity, or stays lit to indicate that a link is established. When it is not lit it indicates that there is
no link.
Figure 33 LED Indicators
Establishing Ethernet Connection
1. Swipe down from the Status bar to open the Quick Access panel and then touch .
2. Touch Ethernet.
3. Slide the Ethernet switch to the ON position.
Table 15 USB/Ethernet Module LED Data Rate Indicators
Data Rate Yellow LED Green LED
100 Mbps On/Blink On
10 Mbps On/Blink Off
