Pairing in HID Mode Using Near Field Communication
The device provides the ability to pair the RS6000 in HID mode using NFC.
NOTE: RS6000 Only.
To pair in HID mode using NFC:
1. Ensure that NFC is enabled on the device.
2. Ensure that Bluetooth is enabled on the device.
3. Place the RS6000 in Human Interface Device (HID) mode. If the RS6000 is already in HID mode, skip
to step 4.
a. Remove the battery from the RS6000.
b. Press and hold the Restore key.
c. Install the battery onto the RS6000.
d. Keep holding the Restore key for about five seconds until a chirp is heard and the Scan LEDs flash
green.
e. Scan the barcode below to place the RS6000 in HID mode.
4. Remove the battery from the RS6000.
5. Re-install the battery into the RS6000.

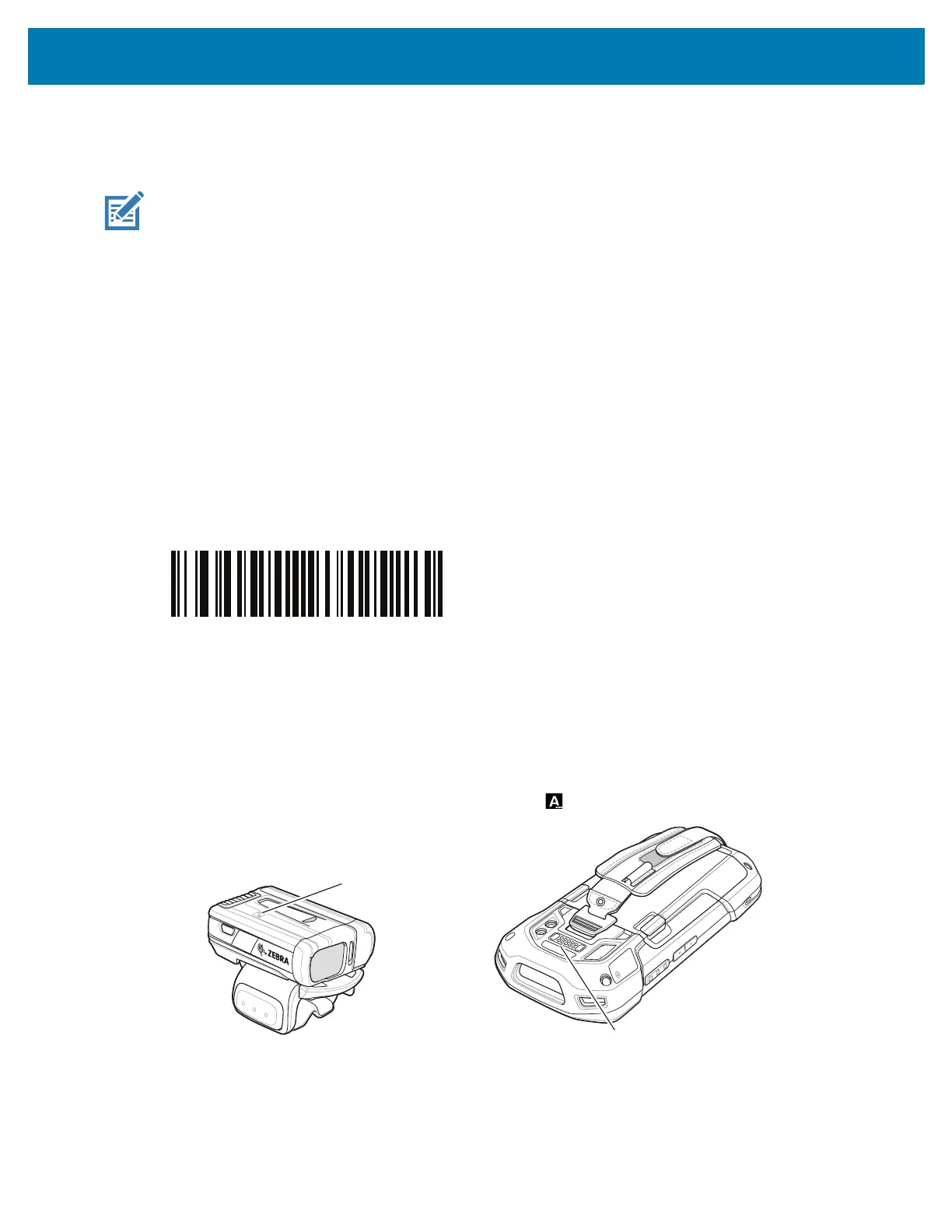

6. Align the NFC icon on the RS6000 with the NFC antenna on the device.
The RS6000 Status LED blinks blue indicating that the RS6000 is attempting to establish connection
with the device. When connection is established, the Status LED turns off and the RS6000 emits a
single string of low/high beeps.
A notification appears on Notification panel and the icon appears in the Status bar.
Pairing Using Simple Serial Interface (SSI)
To pair the RS507/RS507X or RS6000 with the device using SSI.
NFC Logo
NFC Antenna Area
