Zebra TC72 User Manual

Data Capture
45

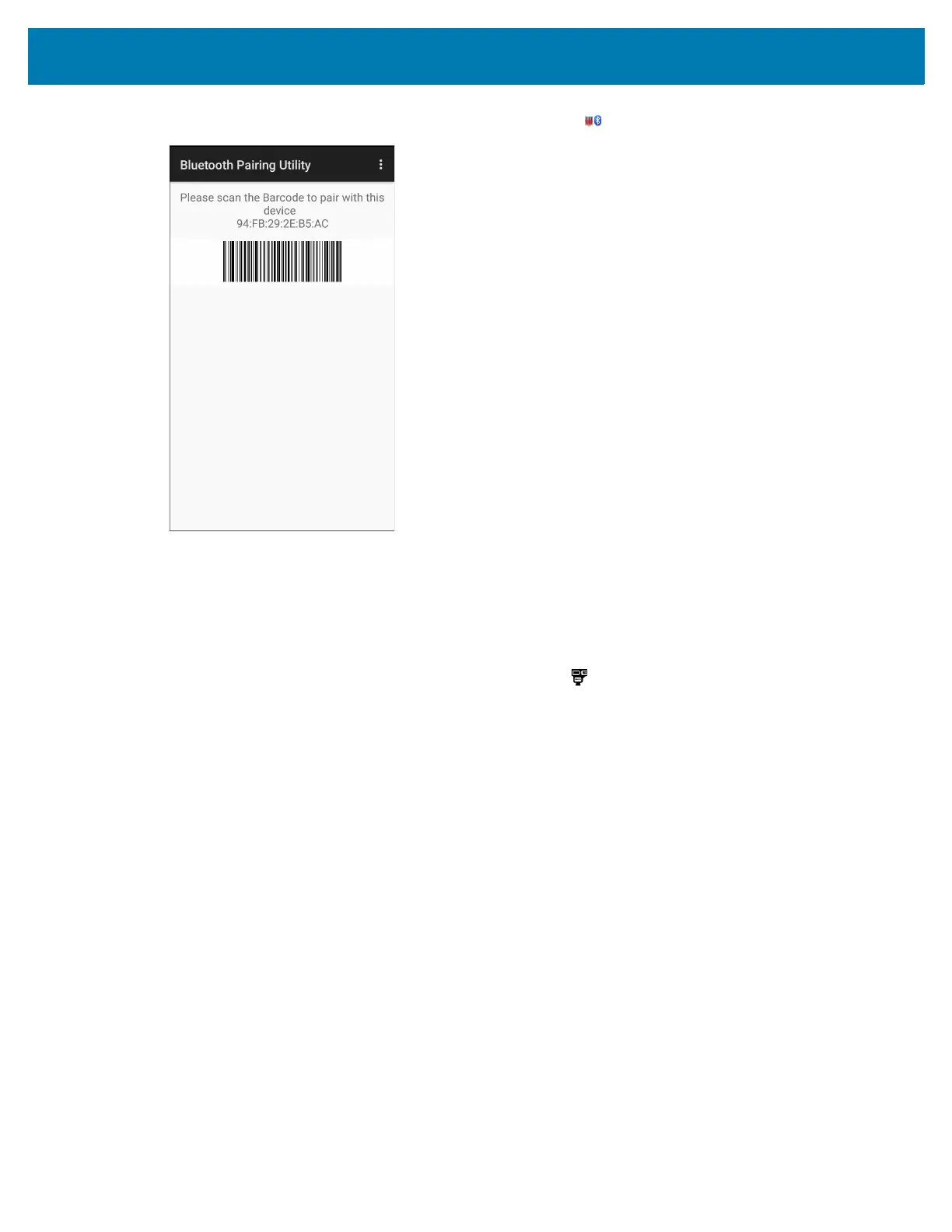

1. Swipe up from the bottom of the Home screen and touch .
2. Using the RS507/RS507X or RS6000, scan the barcode on the screen.
The RS507/RS507X or RS6000 emits a string of high/low/high/low beeps. The Scan LED flashes green
indicating that the RS507/RS507X or RS6000 is attempting to establish connection with the device.
When connection is established, the Scan LED turns off and the RS507/RS507X or RS6000 emits one
string of low/high beeps.
A notification appears on the Notification panel and the icon appears in the Status bar.
Pairing Using Bluetooth Human Interface Device
To pair the RS507/RS507X or RS6000 with the device using Human Interface Device (HID):
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable mode.
3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
4. Place the RS507/RS507X or RS6000 in HID mode. If the RS507/RS507X or RS6000 is already in HID
mode, skip to step 5.
a. Remove the battery from the RS507/RS507X or RS6000.
b. Press and hold the Restore key.
c. Install the battery onto the RS507/RS507X or RS6000.
d. Keep holding the Restore key for about five seconds until a chirp is heard and the Scan LEDs flash
green.
e. Scan the barcode below to place the RS507/RS507X or RS6000 in HID mode.

Zebra TC72 Specifications

General

Display diagonal	4.7 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Internal memory	4 GB
Internal memory type	-
Total storage capacity	32 GB
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
Operating system installed	Android
Rear camera aperture number	2.4
Rear camera resolution (numeric)	13 MP
Front camera resolution (numeric)	5 MP
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Scanner type	1D/2D
Product color	Black, Silver
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
