Zebra TC72 User Manual

Data Capture
43

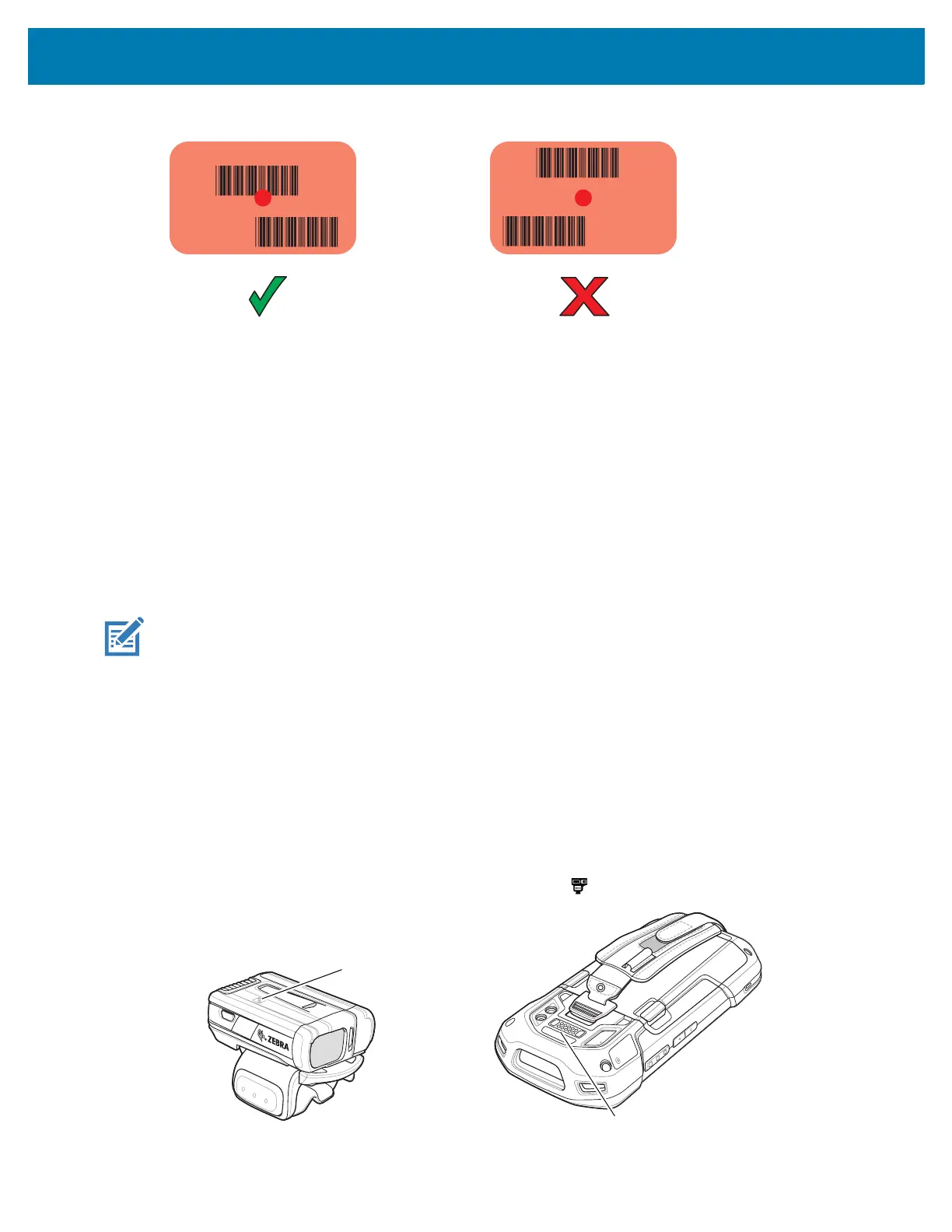

Figure 20 DS3608/DS3678 Pick List Mode with Multiple Barcodes in Aiming Pattern
5. The captured data appears in the text field.
Pairing the RS507/RS507X/RS6000 Hands-Free Imager
To connect the RS507/RS507X or RS6000 imager to the device, use one of the following methods:
• Near Field Communication (NFC) (RS6000 only)
• Simple Serial Interface (SSI)
• Bluetooth Human Interface Device (HID) Mode.
Pairing Using Near Field Communication
The device provides the ability to pair the RS6000 using NFC.
NOTE: RS6000 Only.
To pair using NFC:
1. Ensure that the RS6000 is in SSI mode. Refer to the RS6000 User Guide for more information.
2. Ensure that NFC is enabled on the device.
3. Align the NFC icon on the RS6000 with the NFC antenna on the device.
The RS6000 Status LED blinks blue indicating that the RS6000 is attempting to establish connection
with the device. When connection is established, the Status LED turns off and the RS6000 emits a
single string of low/high beeps.
A notification appears on the Notification panel and the icon appears in the Status bar.
NFC Logo
NFC Antenna Area

Zebra TC72 Specifications

General

Display diagonal	4.7 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Internal memory	4 GB
Internal memory type	-
Total storage capacity	32 GB
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
Operating system installed	Android
Rear camera aperture number	2.4
Rear camera resolution (numeric)	13 MP
Front camera resolution (numeric)	5 MP
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Scanner type	1D/2D
Product color	Black, Silver
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
