Zebra TC72 User Manual

Technical Specifications
115

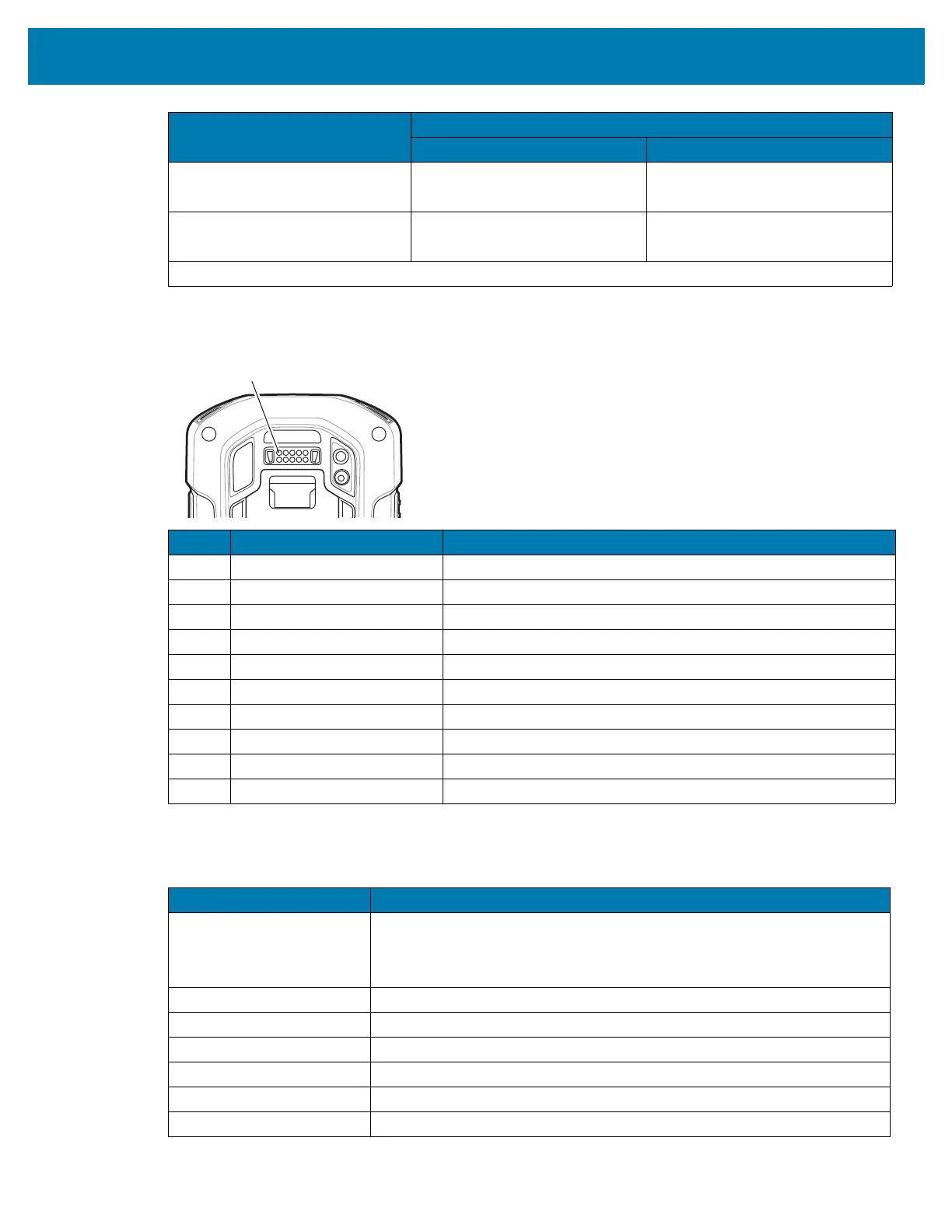

I/O Connector Pin-Outs
2-Slot Charge Only Cradle Technical Specifications
15 mil Code 128 2.6 in.
6.06 cm
19.8 in.
50.29 cm
20 mil Code 39 1.8 in.
4.57 cm
27.0 in.
68.58 cm
Note: Photographic quality bar code at 18° tilt pitch angle under 30 fcd ambient illumination.
Symbol Density/ Bar Code
Type
Typical Working Ranges
Near Far
Pin Signal Description
1 GND Power/signal ground.
2 RXD_MIC UART RXD + Headset microphone.
3 PWR_IN_CON External 5.4 VDC power input.
4 TRIG_PTT Trigger or PTT input.
5 GND Power/signal ground.
6 USB-OTG_ID USB OTG ID pin.
7 TXD_EAR UART TXD, Headset ear.
8 USB_OTG_VBUS USB VBUS
9 USB_OTG_DP USB DP
10 USB_OTG_DM USB DM
Pin 1
Item Description
Dimensions Height: 10.6 cm (4.17 in.)
Width: 19.56 cm (7.70 in.)
Depth: 13.25 cm (5.22 in.)
Weight 748 g (26.4 oz.)
Input Voltage 12 VDC
Power Consumption 30 watts
Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Charging Temperature 0 °C to 40 °C (32 °F to 104 °F)

Zebra TC72 Specifications

General

Display diagonal	4.7 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Internal memory	4 GB
Internal memory type	-
Total storage capacity	32 GB
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
Operating system installed	Android
Rear camera aperture number	2.4
Rear camera resolution (numeric)	13 MP
Front camera resolution (numeric)	5 MP
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Scanner type	1D/2D
Product color	Black, Silver
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
