Getting Started
17

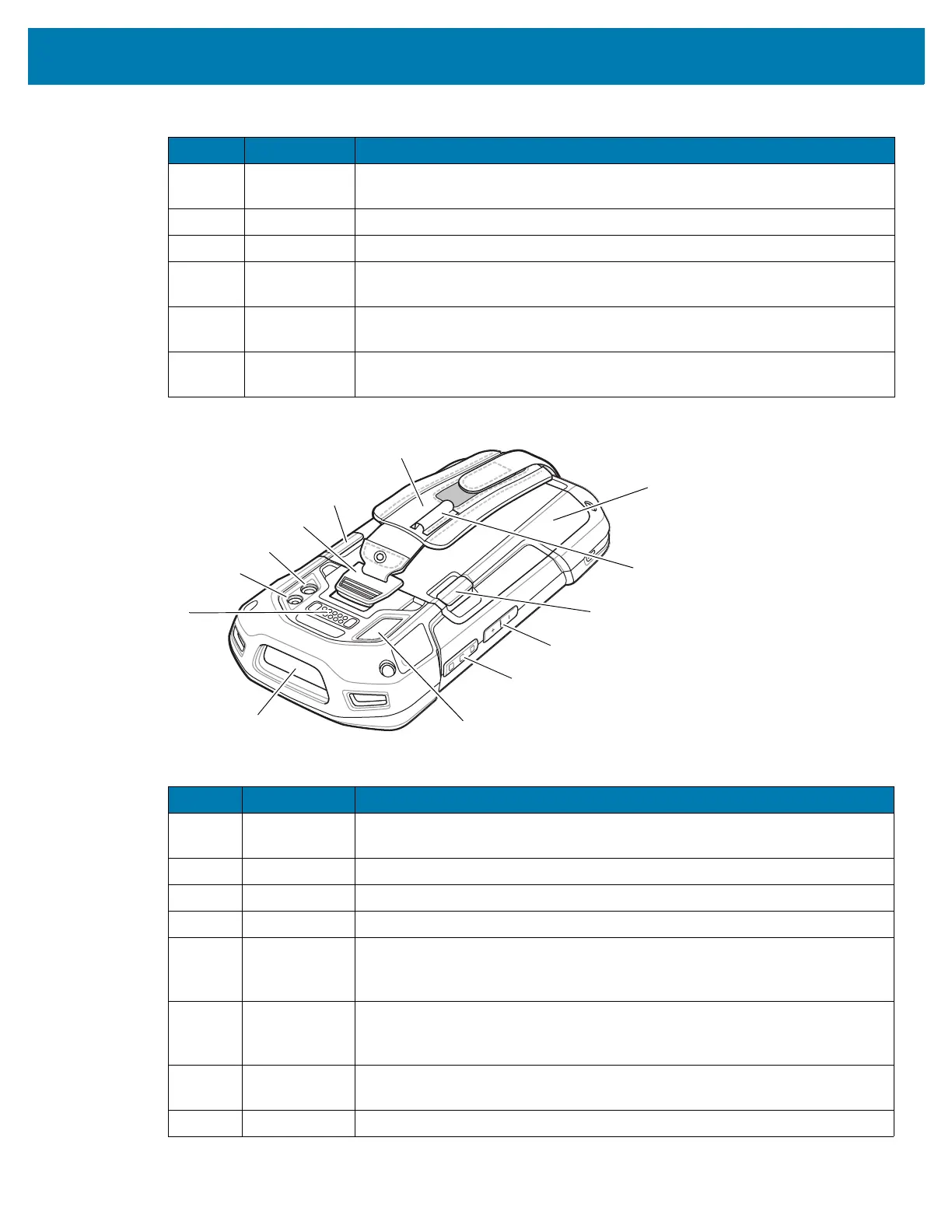

Figure 2 Rear View
13 Power Button Turns the display on and off. Press and hold to reset the device, power off or
swap battery.
14 Microphone Use for communications in Speakerphone mode.
15 Receiver Use for audio playback in Handset mode.
16 Charging/Not
ification LED
Indicates battery charging status while charging and app generated
notifications.
17 Data Capture
LED
Indicates data capture status.
18 Front Facing
Camera
Use to take photos and videos (optional).
Table 2 Back View Features
Number Item Function
19 Interface
Connector
Provides USB host and client communications, audio and device charging
via cables and accessories.
20 Exit Window Provides data capture using the imager.
21 Microphone Use during video recording and for noise cancellation.
22 Scan Button Initiates data capture (programmable).
23 Volume
Up/Down
Button
Increase and decrease audio volume (programmable).
24 Battery
Release
Latches
Press to remove the battery.
25 Elastic
Sleeve
Use to hold optional stylus.
26 Battery Provides power to the device.
Table 1 Front View Features (Continued)
Number Item Function
19
29
25
24
22
26
21
30
20
28
24
27
22
23
