Front outlets of the external hydraulic circuit
Control of the external hydraulic circuit front outlets
On request, the tractor can be equipped with external
hydraulic circuit outlets located in the front.

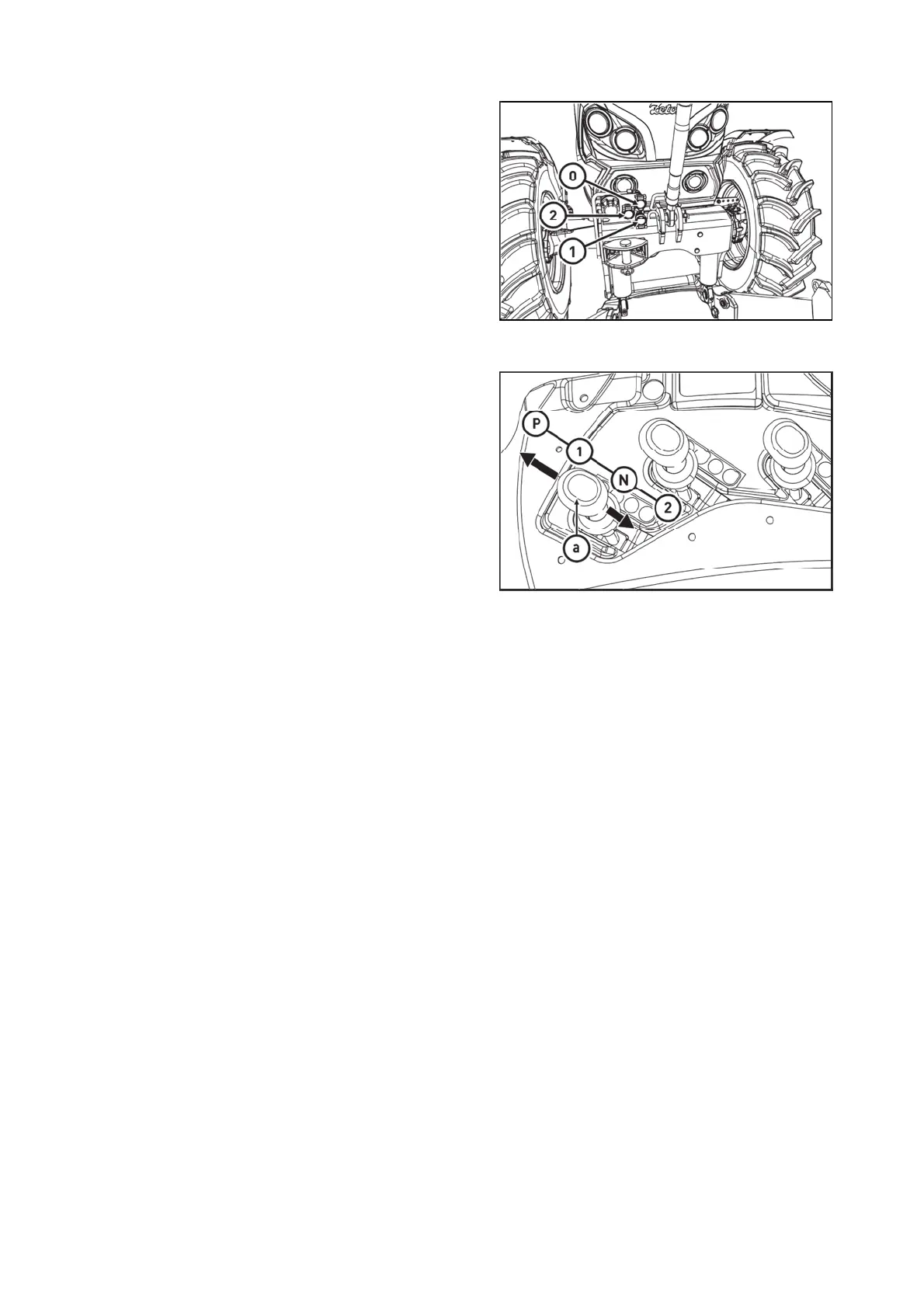

The quick couplings (1) and (2) are the pressure
couplings, the quick coupling (0) is directly connected to
the space of the axle final drive housing and is designed
so that the return oil can flow back from the external
hydraulic appliances.
The quick couplings sockets with the 12.5 mm inside
diameter comply with the international ISO
recommendations.
PGPPN035
The front outlets of the external hydraulic circuit are
controlled by a lever (a) which has four positions:
N - Neutral position. Quick coupler drives (1) and (2) are
closed and oil in the hydraulic appliance connected is
blocked. Lever
a
is locked in this
osition
1 - Pressure in quick coupler (1). Quick coupler (2) is
connected with the drain. Lever (a) is locked in this
position. In case pressure exceeds 16.5 MPa when
connected to quick coupler (1), lever (a) automatically
returns to (N) position - 'kick-out' function.
2 - Pressure in quick coupler (2). Quick coupler (1) is
connected with the drain. Lever (a) is locked in this
position. In case pressure exceeds 16.5 MPa when
connected to quick coupler (2), lever (a) automatically
returns to
N
osition - 'kick-out' function
P - Floating position. Both quick couplers (1) and (2) are
connected with the drain and oil is free to flow in both
directions. Lever (a) is locked in this position.
PGPPN165
