Rear three-point hitc
Serves for connecting carrier-mounted or semi mounted
agriculture machines and tools with linkage points of
category I. or II. pursuant to ISO. The categories differ
based on the length of linkage axis, which is the distance
of the centre of balls of lower linkage joints with connected
tool.

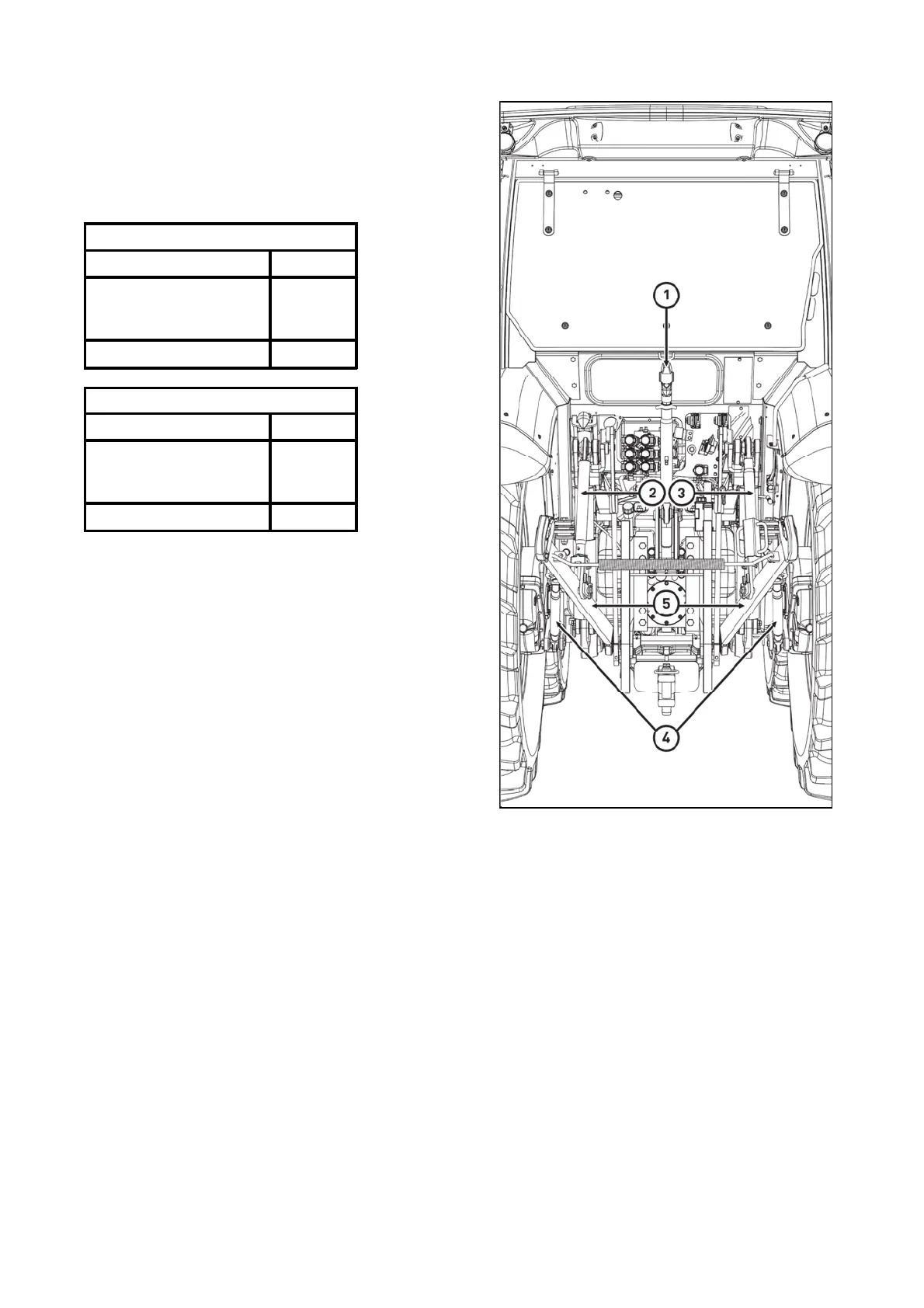

1. Upper draw bar
2. Lift rod left
3. Lift rod right
4. Limiting draw bars
5. Lower draw bars
Category I.
Length of linkage axis 728 mm
Ø of holes of connecting
balls of lower draw bars
pursuant to ISO
28 mm
Ø of upper draw bar hole
25 mm
Category II.
Length of linkage axis 870 mm
Ø connecting balls holes
of lower draw bars
pursuant to ISO
28 mm
Ø of upper draw bar hole
25 mm
PGPPN085
