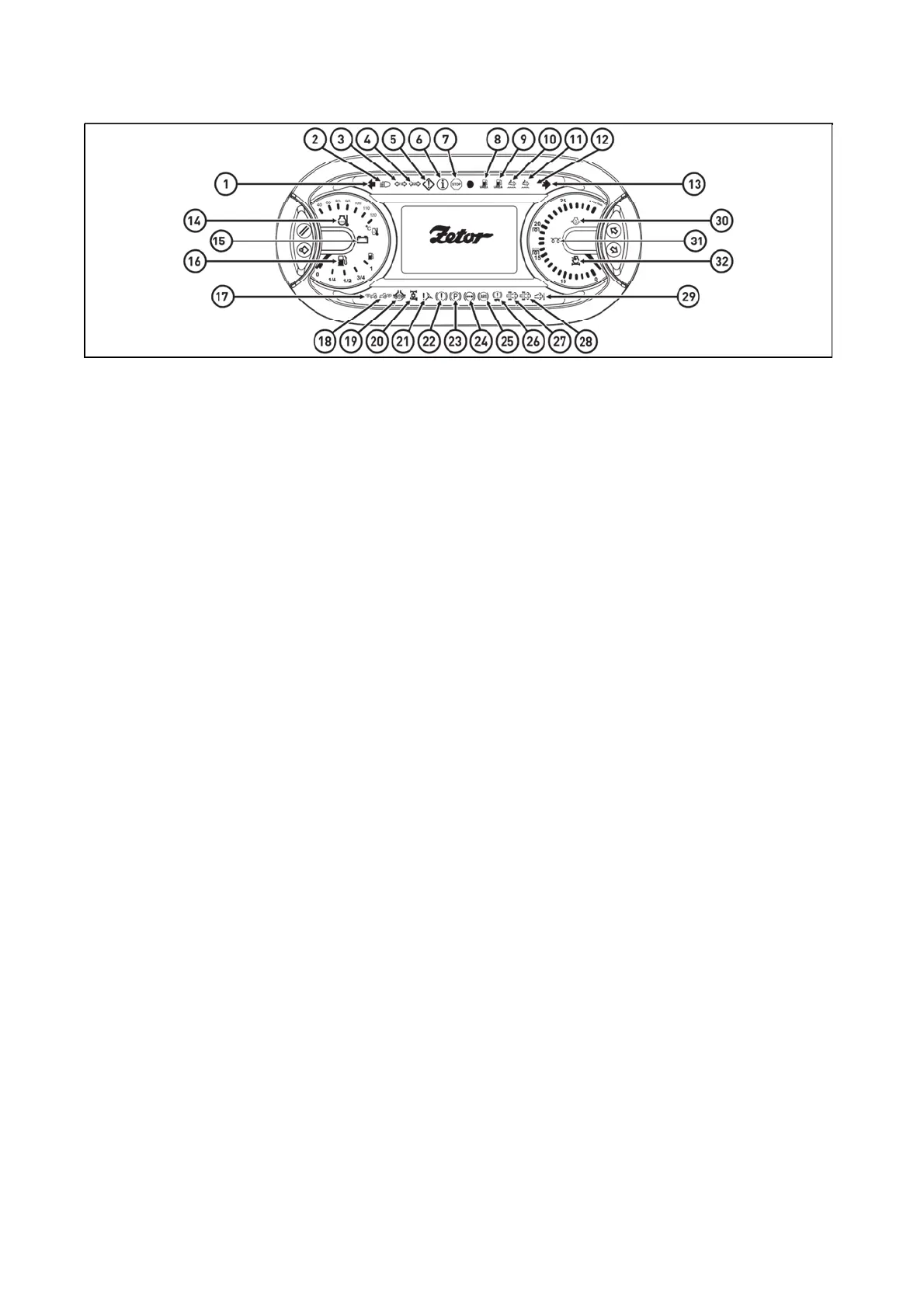

Instrument panel - signal lamps
P18N039
1 - green - left turn signal indicator
2 - blue - high beam indicator. Illuminated when the high beam is lit.
3 - green - 1st trailer turn signal light indicator
4 - green - 2nd trailer turn signal light indicator
5 - orange - warning light
6 - blue - operating protection indicator. Illuminated when the operating values of the tractor groups are not
compliant.
7 - red - STOP indicator
8 - orange - empty position
9 - red - empty position
10 - orange - empty position
11 - red - empty position
12 - empty position
13 - green - right turn signal indicator
14 - red - coolant temperature indicator. Illuminated when the engine overheats.
15 - red - alternator indicator. While the engine is running it illuminates when the charging failure occurs.
16 - orange - fuel level indicator. Illuminated when the fuel balance is between 0 - 1/4 of the tank volume.
17 - empty position
18 - empty position
19 - orange - differential lock indicator. More in the chapter RUNNING OPERATION.
20 - green - front axle drive indicator. More in the chapter RUNNING OPERATION.
21 - red - fault in the hydrostatic control system signalization indicator
22 - red - brake fault signalization indicator
23 - red - handbrake indicator
24 - red - minimum air pressure in the braking system indicator. Illuminated when the air pressure drops
below the critical limit.
25 - empty position
26 - orange - trailer brake fault indicator, illuminated when the trailer braking system fails in case the trailer is
equipped with ABS.
27 - orange - DPF filter clogging indicator. More in the chapter RUNNING OPERATION.
28 - red - empty position
29 - green - indicator signaling sufficient exhaust pipe temperature. Illuminated when the temperature of the
exhaust gas is higher than 250 ° C. Flashes when DPF filter regeneration is in progress. More in the chapter
RUNNING OPERATION.
30 - red - lubrication indicator. While the engine is running it illuminates when the engine oil pressure drops
below the critical limit.
31 - orange - glow indicator.
32 - orange - air cleaner clogging indicator. While the engine is running it is illuminated when the engine air
cleaner is clogged, indicating the need to maintain the engine air cleaner.
