Display - display of air pressure in the air-pressure system of the tractor
P18N075

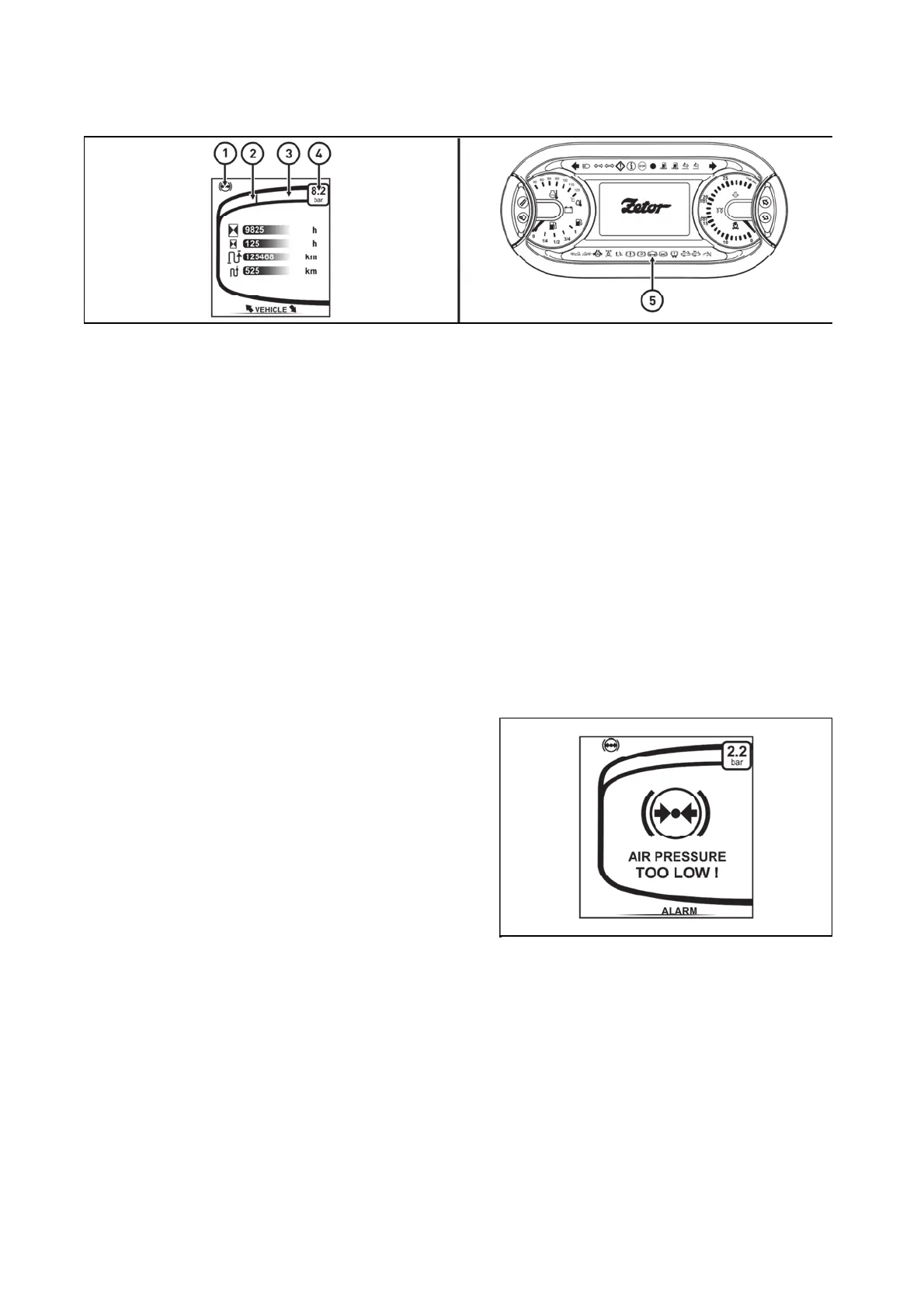

The air pressure in the tractor's air system is displayed on the instrument panel display.
1 - Air pressure symbol, white light, has no signaling function.
2 - Red display field, gradual filling of the field with red color indicates the increase of air pressure in the
tractor's air-pressure system in the range from 0 bar to 4.5 bar. At 0 bar, the field is black.
3 - Green display field, gradual filling of the field with green color indicates the increase of air pressure in the
tractor's air-pressure system in the range from 4,5 bar to the maximum pressure set. At a pressure lower
than 4.5 bar, the field is red.
4 - Field showing the numerical value of the air pressure in the tractor's air pressure system. If the air
pressure is lower than 4.5 bar, the field background is red; if the air pressure is higher than 4.5 bar, the
background is green.
5 - Low air pressure warning light is on, when the air pressure in the tractor's air system is less than 4.5 bar.
Signaling low air pressure in the air-pressure system of the tractor.
field (2) is filled in red according to the current air pressure in the tractor's air-pressure system,
field (3) is black,
the background of the field (4) is red,
indicator (5) is on
Display - warning of low air pressure in the air-pressure system of the tractor
If the air pressure in the air-pressure system of the tractor
drops below 4.5 bar, a warning is shown on the display
and an acoustic signal is generated.
Interrupt your work and wait until the air pressure in the
air-pressure system of the tractor increases.
