Pin of couplin

switchin

Reversion lever pin

Technical maintenance of the tractors after a general overhaul of the main groups

Run in the tractor after a general overhaul in accordance with the instructions for running in a new tractor.

Perform the maintenance in the same way as with a new tractor.

Pos.

No.

Name Number of

lubr. points

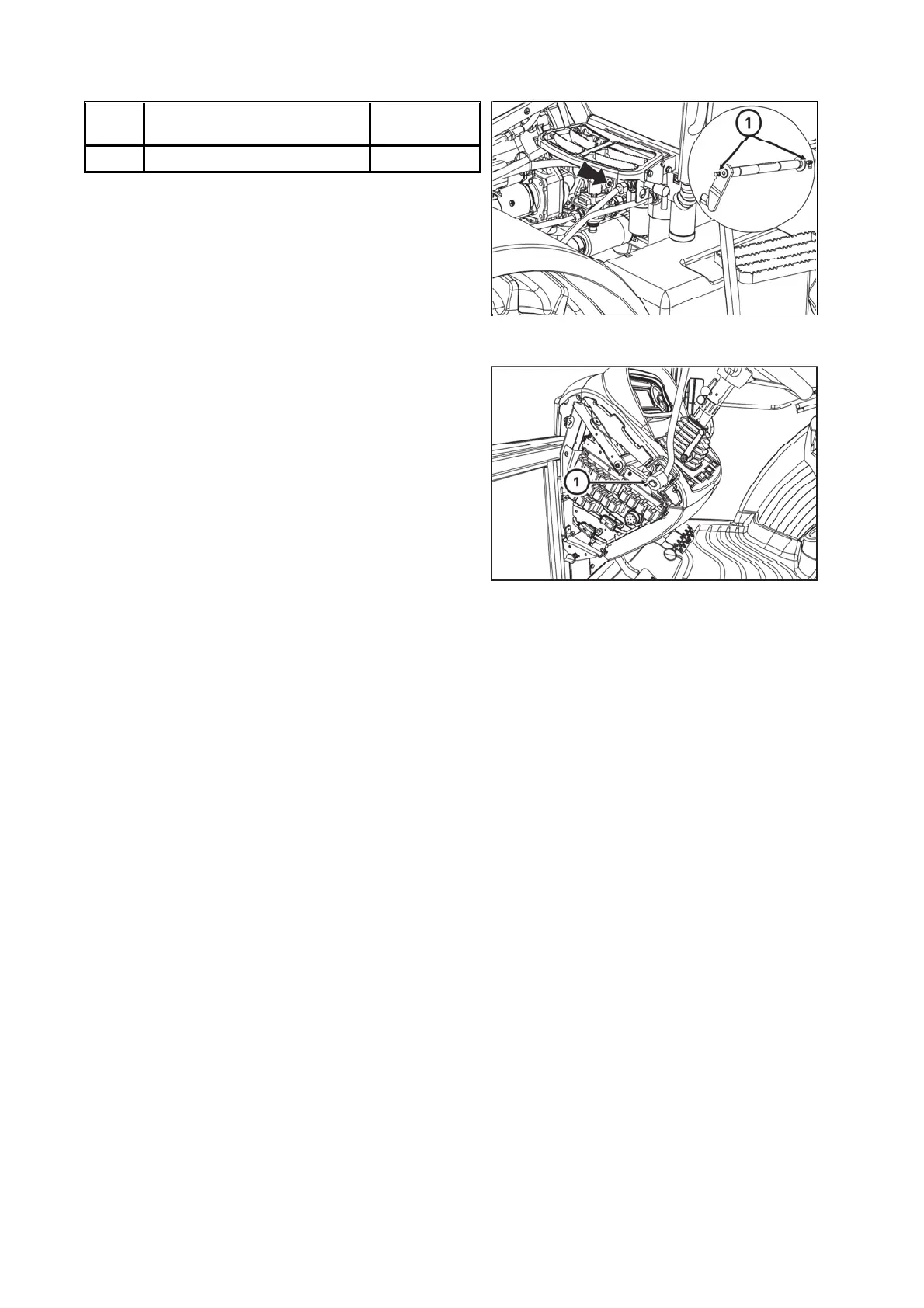

1 Pin of coupling switching off 2

PCLPN093

Disassemble the left side cover of the control panel.

Disassemble the lock ring (1) of the reversion lever pin.

Partly push out the reversion lever towards the instrument

panel.

Lubricate reversion lever pin with lubricating oil.Push the

reversion lever back and secure with the lock ring (1).

PCLPN094

TRACTOR MAINTENANCE

181
