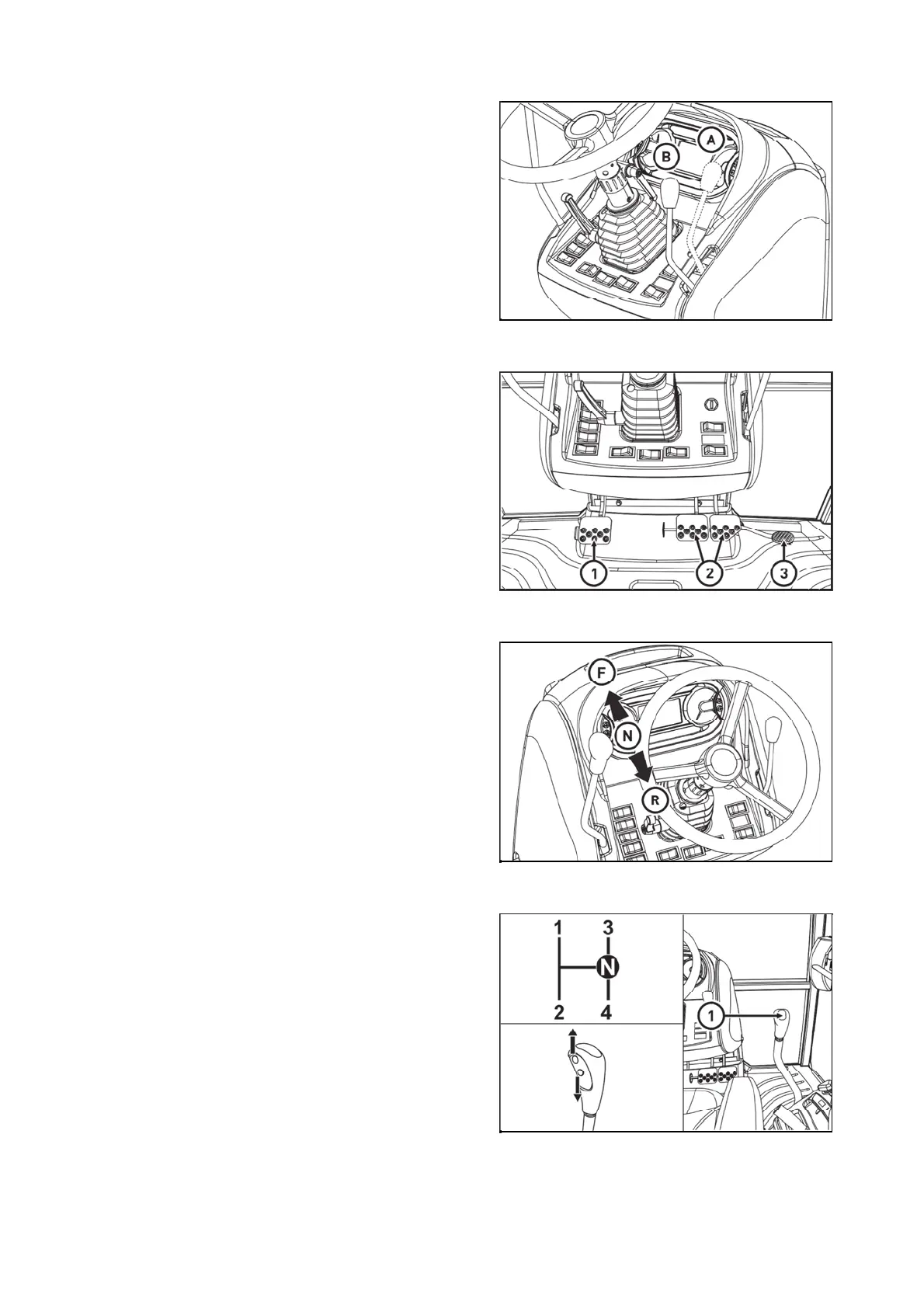

Manual throttle
Pedals and levers
Reversing lever
Gear shifting lever
- Maximum speed of the engine
B - Idle run
The lever allows setting of speed of the engine within
range A to B.
PGPP014
1. Travel clutch pedal
2. Foot operated service brake pedals connected by latch
3. Foot throttle pedal
PGPPN023
F - drive forward; gear shift at the front
N - neutral gear
R - reverse; gear shift at the rear
Gear shift is done with the tractor stationary and the clutch
pedal depressed.
PGPPN025
The tractors are equipped with a four-speed synchronized
transmission, a two-speed torque multiplier, a reverser
and a two-speed reduction.
The four-speed transmission is operated by the main
gearshift lever (1) with buttons for the torque multiplier
control.
The gearshift scheme is located on the gearshift knob
label and on the sticker on the right bottom windshield.
Reverse gear can only be shifted using the reverse shift
lever.
PGPPN018
ACQUAINTANCE WITH TRACTOR
