Heating control panel, * ai
-conditio
Heating valve control (A)
Ventilator control (B)
Switch air-condition (C)

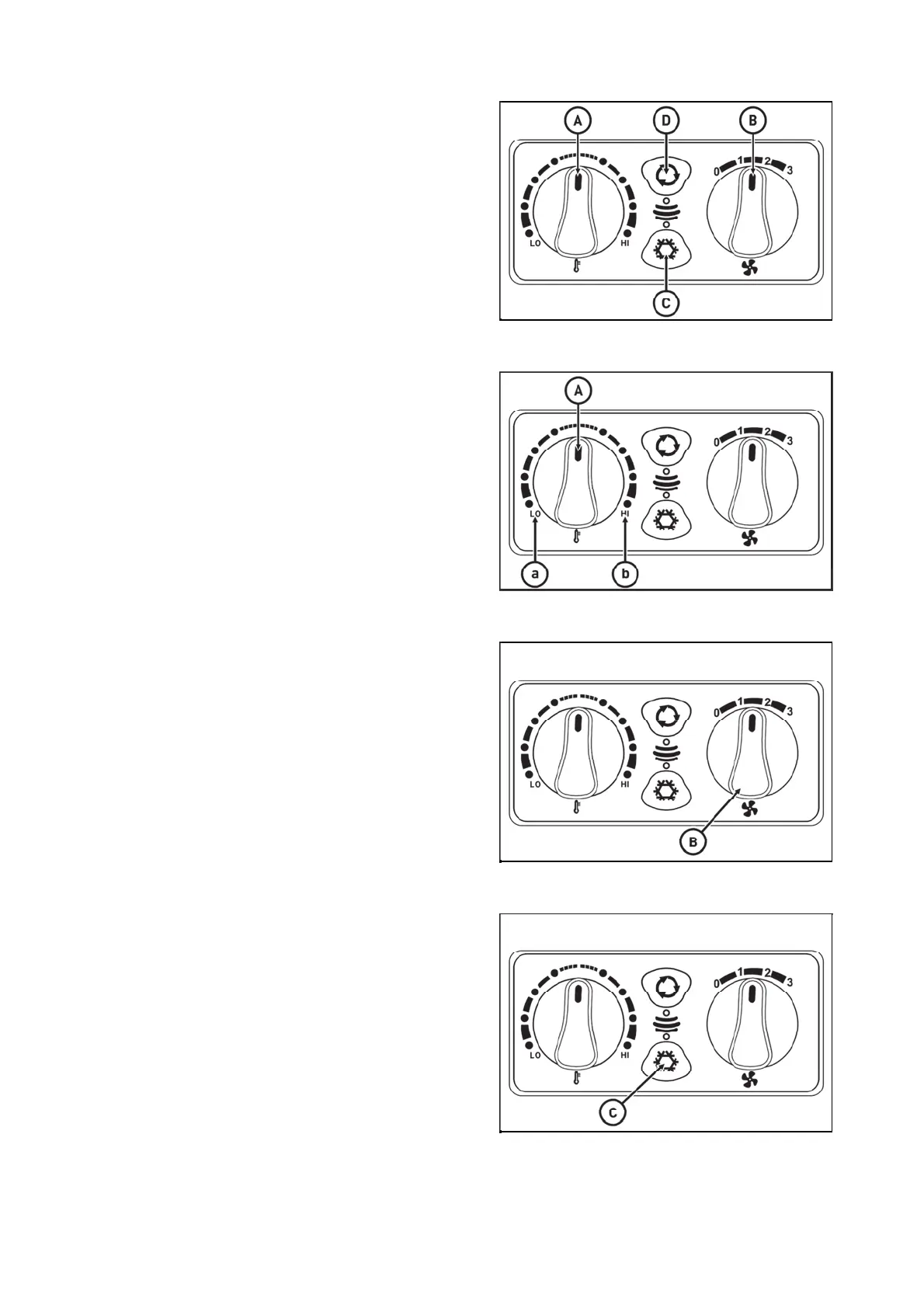

The heating and air conditioning control panel is located
on the right side of the roof ceiling of the cab.
A - Heating valve control
A - Fan control
C - Air conditioning switch
D - Cab air circulation switch
PGPPN125
a - heating valve closed
b - heating valve opened
PGPPN126
0 - ventilator off
1 - slowly run of ventilator
2 - medium run of ventilator
3 - maximum run of ventilator
PGPPN127
To switch the air conditioning system on and off, use the
snowflake symbol switch (C).
Press the switch to activate the air conditioning system
(the diode above the switch is on).
Press the switch again to turn off the air conditioning
system (the diode above the switch turns off).
PGPPN128
ACQUAINTANCE WITH TRACTOR
