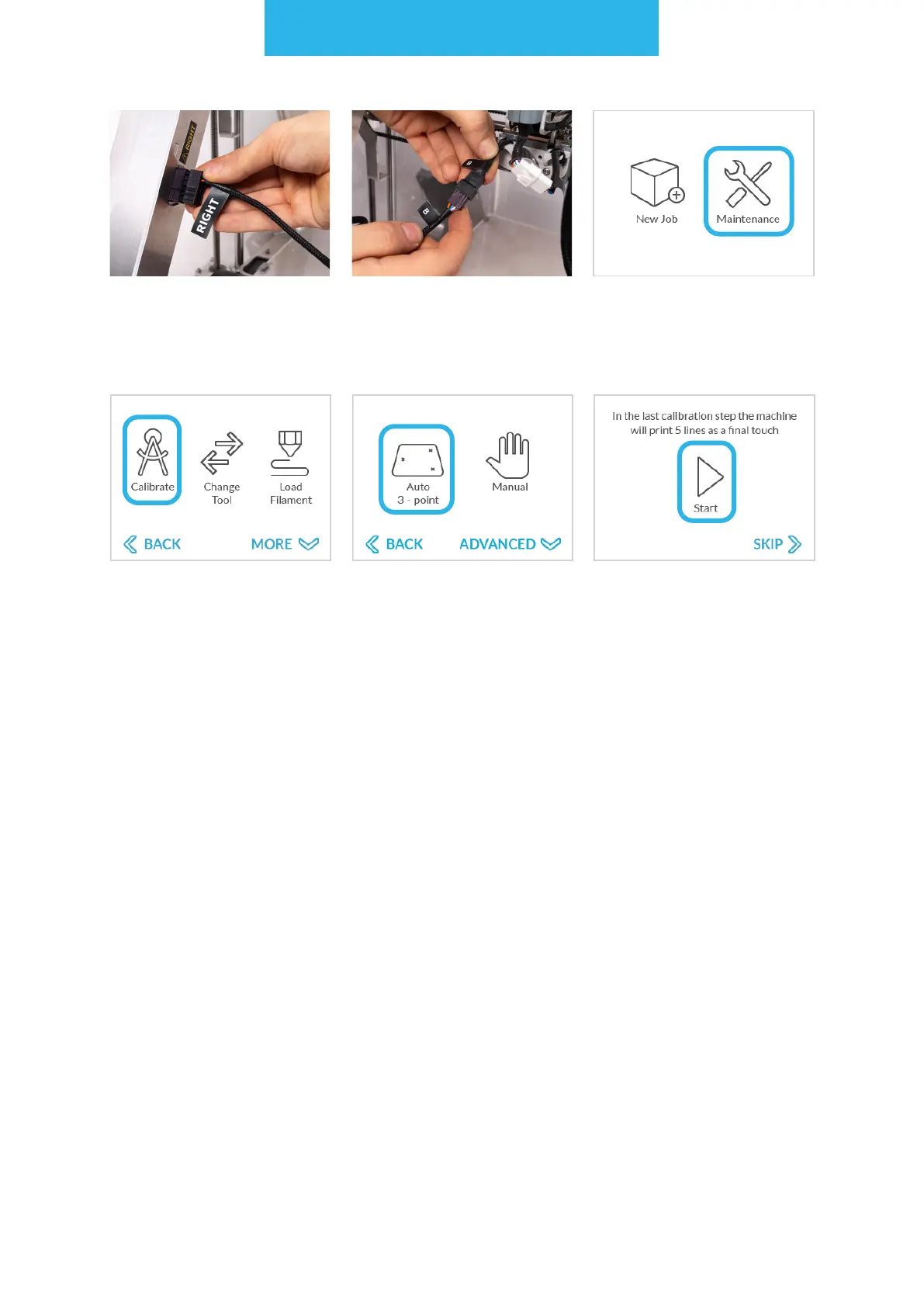

Setting up ZMorph
VX
31
Choose "Calibrate
".
Choose "
Auto 3-point".
Wait for the machine t
o
heat up and nish the
probing.
T
o ensure best calibr
a-
tion result print calibr
a-
tion pattern. Choose
"Star
t".
T
ake the calibr
ation cable
and connect the wider
end to the RIGH
T fr
ame
socket.
Connect the narrow end
of the calibration cable t
o
X
-carriage B socket.
Choose "Maintenance".
30
32
Table of Contents
Default Chapter
2
Table of Contents
2
1 Manual Guide
6
Introduction
6
Markings Contained in the Instructions Guide and on the Device
6
2 Health and Safety at Work
7
General Safety Information
7
Occupational Hygiene
8
Electrical Safety and Risk
8
Safety and Mechanical Risks
9
Risk of Burns
9
Instructions for Safe Storage and Transport
9
Electromagnetic Compatibility (EMC)
11
Laser Radiation
11
3 Manufacturer's Warranty and Liability
12
Scope of the Warranty
12
Acceptance of Warranty Claim
13
Claim Processing Period
13
Zmorph's Liability
14
4 Certificates
15
5 What Is Zmorph VX
16
6 How to Use Your Zmorph VX 3D Printer
17
7 Sets
19
Types of Sets and Their Content
19
8 Machine Specification
20
Overview
20
Components
22
Functionalities
24
Technical Specification
25
9 Setting up Zmorph VX
28
Location Requirements
28
Safety Features Removal
29
Assembling the Spool Holder
29
First Use
30
10 Maintenance
32
Toolheads Maintenance
32
Changing Worktable
35
Removing Covers
36
Communication and File Delivery
39
11 Voxelizer
42
Installation and System Requirements
42
Creating Voxelizer Account
42
License
43
Files Maintenance and Preparation
43
Presets
46
500 D Printing Workflow
49
Toolheads
49
Printing Materials
52
Loading the Filament
53
Material Exchanging
60
Filament Replacement During Printing
63
Autocalibration
66
Manual Calibration Process
73
Calibration - Additional Functions
74
Preparing the Worktable
76
Files Preparation
77
Starting the Print
99
Editing Parameters During Printing
101
Pause and Resume Printing
103
Printing Stopping
104
Removing a Printout from the Platform
104
Support Removal
105
Hibernation
105
13 CNC Milling
107
CNC PRO Milling Toolhead
107
Materials Compatible with CNC PRO Toolhead
108
Material Fixturing
108
Milling Cutter Fastening
110
CNC Milling File Preparation
112
CNC Milling File Starting (with Calibration)
120
Tool Changing Process
124
CNC PRO Toolhead Safety Rules
125
14 Laser Cutting and Engraving
128
Laser PRO Toolhead
128
Materials Compatible with Laser Pro Toolhead
129
Material Fixturing
129
Laser Engraving File Preparation
131
Laser Engraving/Cutting File Starting (with Calibration)
135
Laser PRO Safety Rules
138
15 Thick Paste Extruder
142
Materials
143
Material Application
143
Calibration
145
File Preparation
146
File Starting
149
Safety Instruction for Thick Paste Extruder
150
16 Machine Maintenance and Operation
151
Basic Maintenance
151
General Procedures
151
Worktable Procedures
152
Printing Toolhead Procedures
152
X,Y,Z Axes Procedures
153
17 Spare Parts
155
