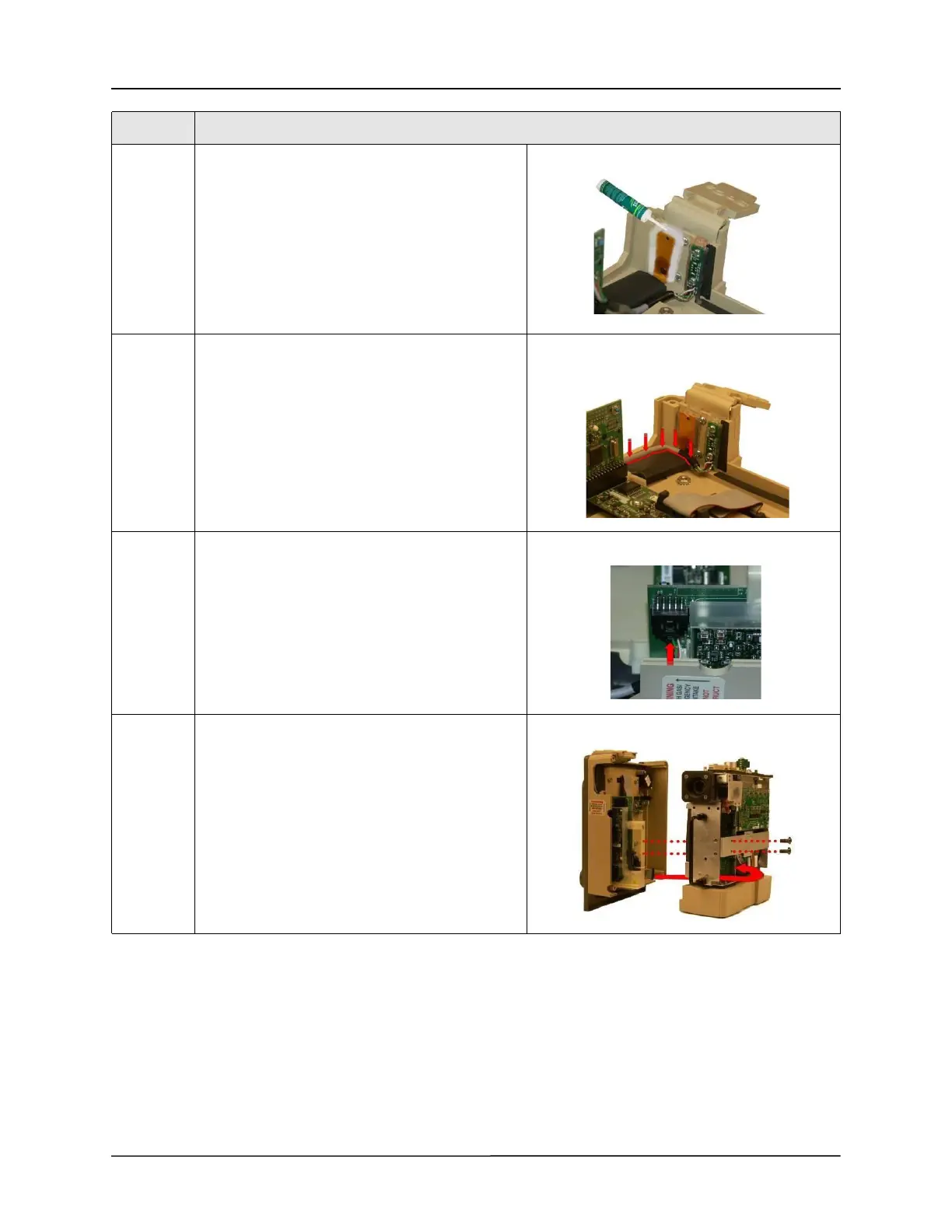

Service Kit Installation Procedures
4–60 www.zoll.com 906-0731-04-01 Rev. C
12 Apply RTV Sealant around the SpO
2
Flex Cable and
allow to dry.
13 Dress the USB Connector cable along the case and
over the SpO
2
flex cable.
14 Attach USB Connector cable to its mating
connector on the CPU board.
Make sure tab locks the cable in place.
15 Place the front case assembly over the ventilator
module and tighten the two 4-40 x 1/4 screws unto
the dovetail mounting bracket.
Reconnect the ribbon cable unto the PIM board.
Make sure the two ejector latches are secured.
