Service Kit Installation Procedures
4–84 www.zoll.com 906-0731-04-01 Rev. C

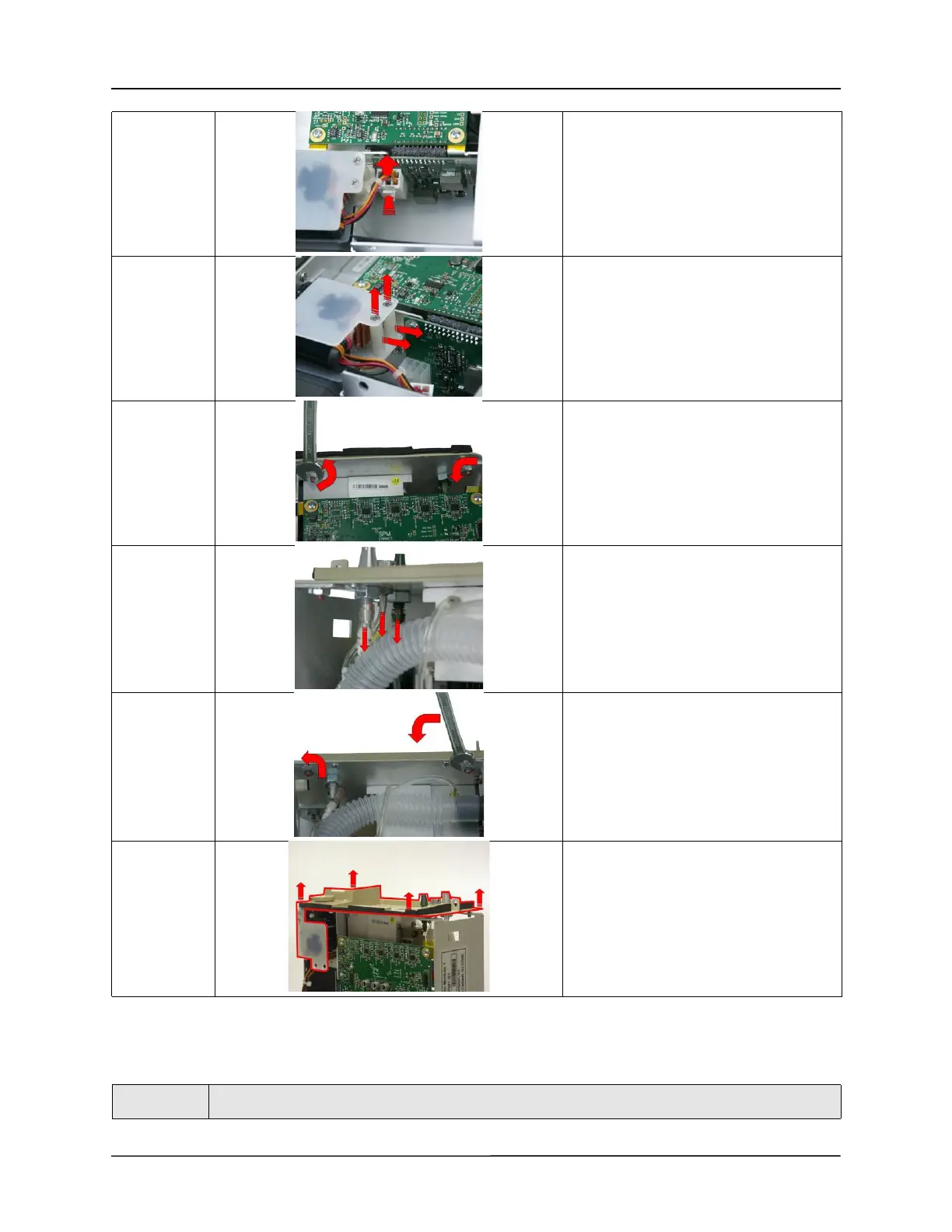

Remove the Compressor Intake Corrugated Hose
3
Disconnect the Power Input cable by
pressing on the locking latch and pulling
the cable straight up from the connector.
4
Loosen and remove the (2) 4-40 X 1 ¼
Screws and nylon spacers supporting the
Power Input assembly unto the chassis.
Save the screws & spacers.
5
Loosen and remove the (2) 6-32 Keps
nuts using a 5/16 open-end wrench.
6
Using smooth jaw needle nose pliers,
carefully remove the 3 tubing on the
“Transducer”, “Exhaust Do not Occlude”,
and “Exhalation Valve” fittings.
7
Loosen and remove the (2) 6-32 Keps
nuts using a 5/16 open-end wrench.
8
Lift the damaged connector panel
assembly out from the SPM.
