ZOLL EMV+ - Page 141

Service Kit Installation Procedures
4–86 www.zoll.com 906-0731-04-01 Rev. C

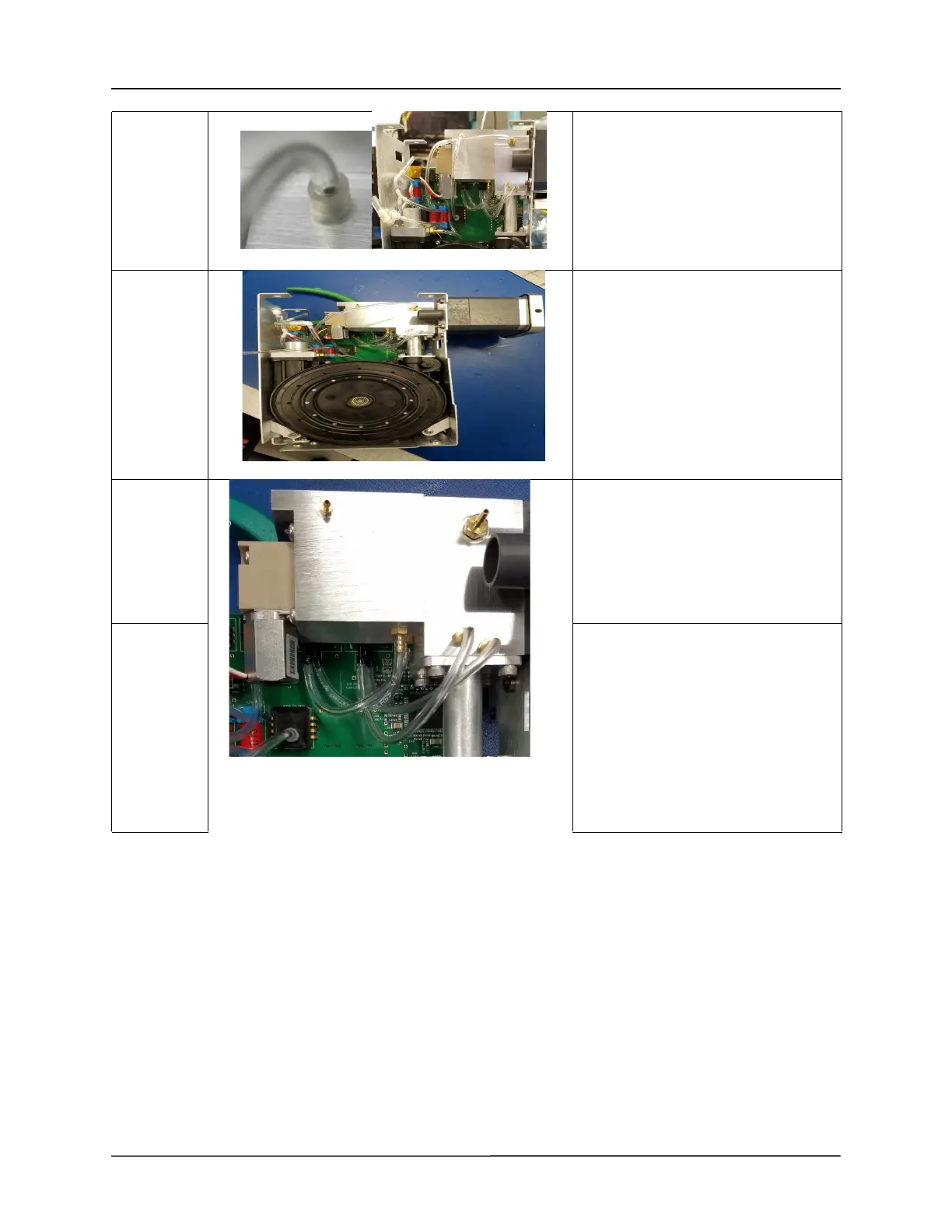

1
Raise sleeve clamp and disconnect
tubing from the Oxygen Inlet Manifold.
For re-assembly: Connect tubing and
sleeve clamp. Push both all the way down
on hose barb.
2
Disconnect tubing from the Mix Manifold
Pressure fitting.
For re-assembly: Connect tubing from
Exhalation Control Valve to Mix Manifold
Pressure fitting.
3
Disconnect tubing from the O2 Inlet
Manifold (+).
For re-assembly: Connect tubing from
XDCR_O2_FLOW (-) to the O2 Inlet
Manifold (-).
4
Disconnect tubing from the O2 Inlet
Manifold (-).
For re-assembly: Connect tubing from
XDCR_O2_FLOW (+) to the O2 Inlet
Manifold (+).
O2
