Service Kit Installation Procedures
906-0731-04-01 Rev. C ZOLL Ventilator Service Manual 4–87

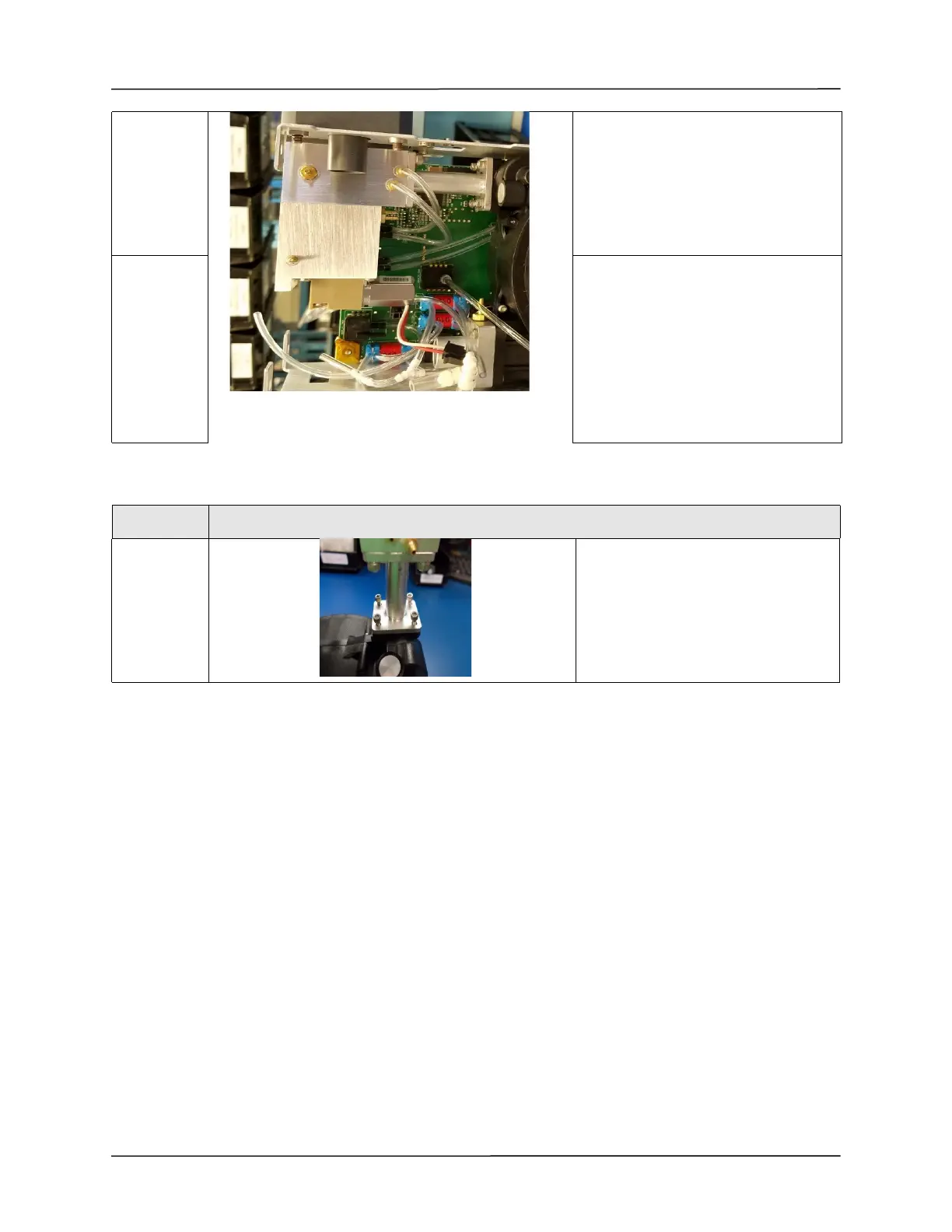

Disconnect the Flow Manifold from the Compressor
5
Disconnect tubing from the Mix Manifold
(-).
For re-assembly: Connect tubing from
XDCR_COMP_FLOW (-) to the Mix
Manifold (-).
6
Disconnect tubing from the Mix Manifold
(+).
For re-assembly: Connect tubing from
XDCR_COMP_FLOW (+) to the Mix
Manifold (+).
STEP
ACTION
1
Loosen and remove the 4 hex screws (with
washers) holding the Flow Manifold to the
Compressor outlet.
Mix
To Next Page
