Service Kit Installation Procedures
906-0731-04-01 Rev. C ZOLL Ventilator Service Manual 4–89

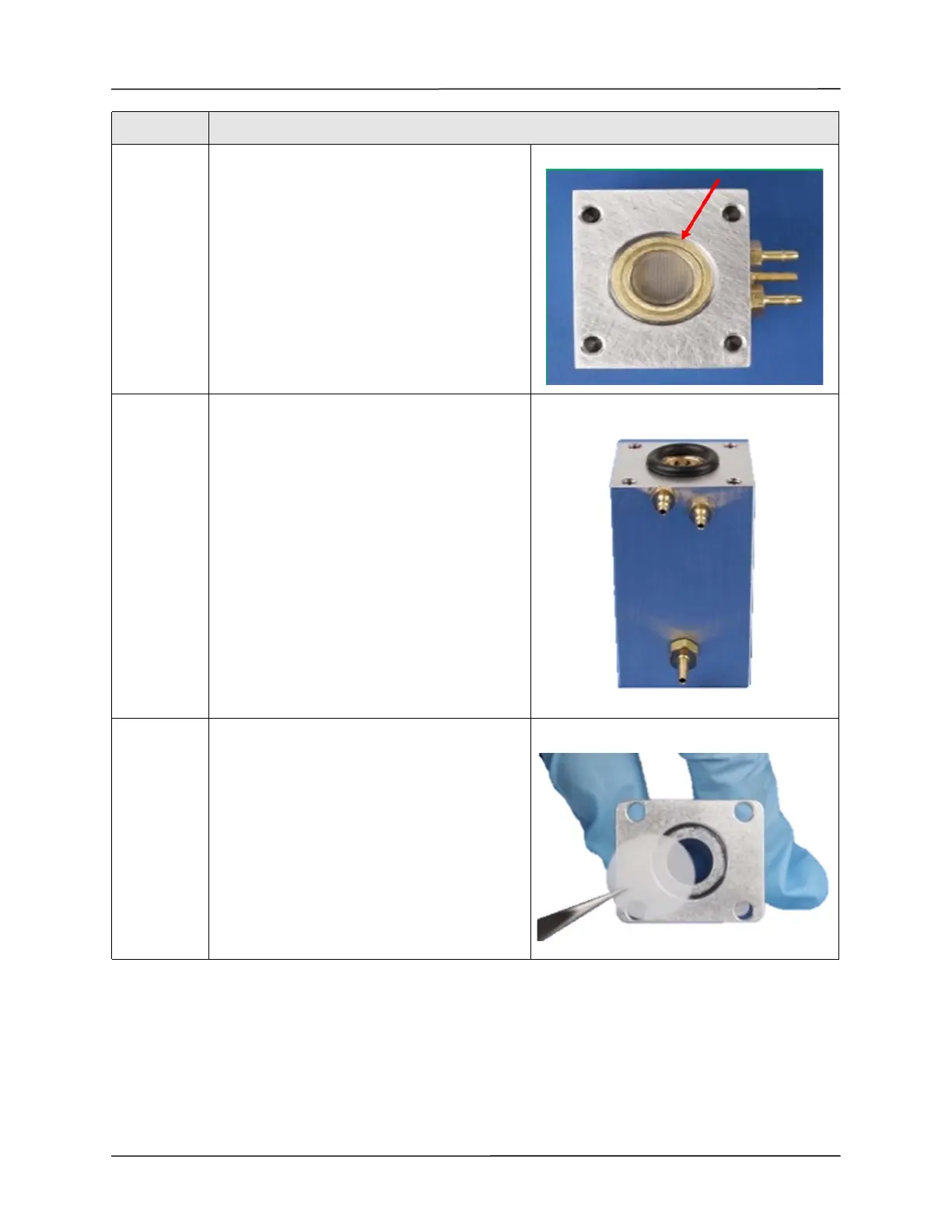

3 Insert the Transducer, Screen, 400 Mesh (P/N
804-0006-00) with smaller diameter into the
SPM Mix Manifold.
NOTE: Ensure that it sits properly in the counter
bore.
4 Insert the larger O-Ring, 5/8" OD X 7/16" ID (P/N
340-0061-00) on top of the 400 Mesh Screen
Transducer and into the SPM Mix Manifold.
NOTE: Ensure that it sits properly in the counter
bore.
5 Insert the Filter, Diffuser, .615 DIA (P/N 465-
0029-00) into the shoulder of the Compressor-
SPM Connector.
NOTE: Ensure that it sits properly and flat on the
shoulder.
