Service Kit Installation Procedures
4–90 www.zoll.com 906-0731-04-01 Rev. C

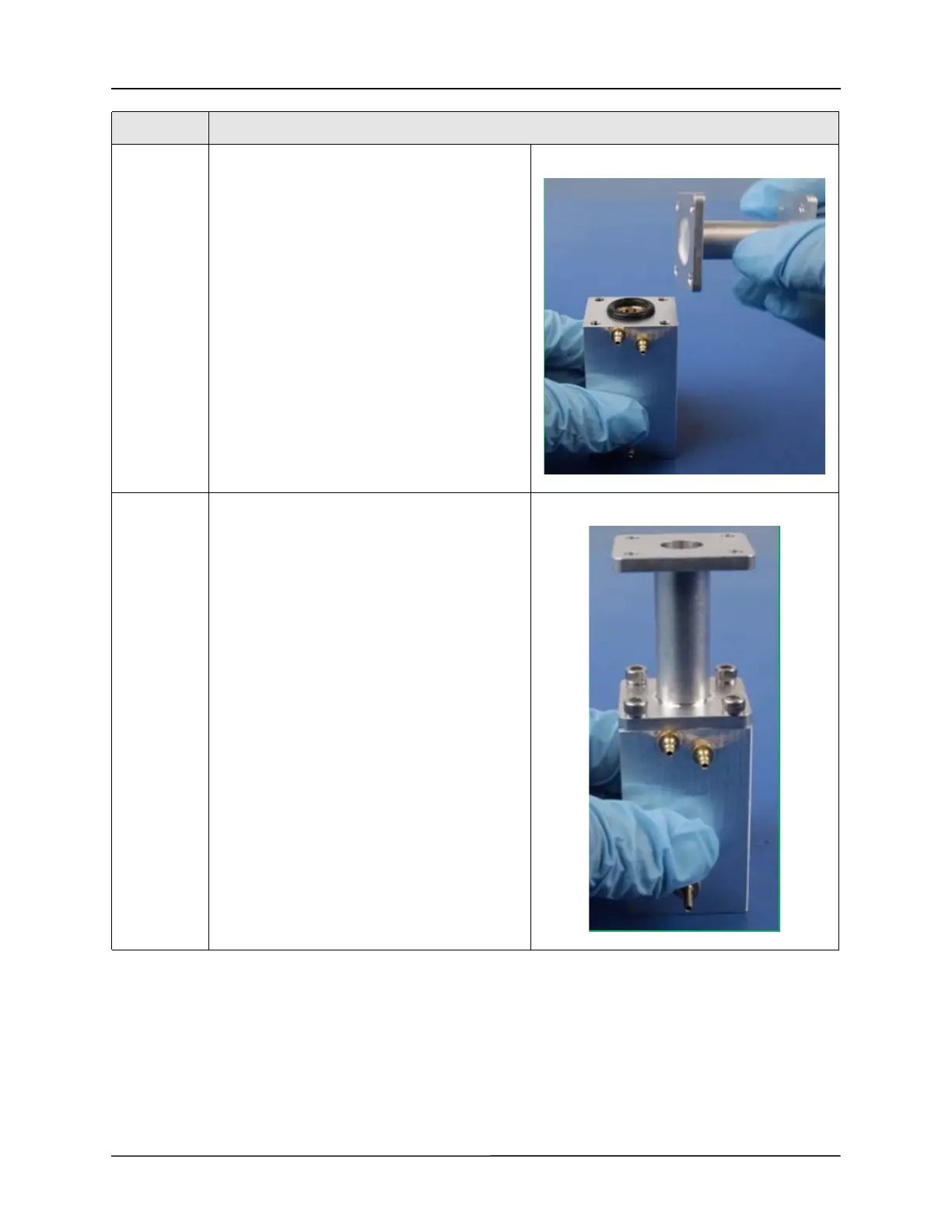

6 Secure the bottom of Compressor-SPM
Connector to the SPM Mix Manifold.
NOTE: Ensure the .615 Diffuser Filter and O-Ring
do not move during this operation. Failure to do
so will cause the device to fail.
7 Insert four of Screw, Cap, Socket, 6-32 X 5/16 (P/N
360-0632-05) through the Compressor-SPM
Connector into the SPM Mix Manifold.
NOTE: Ensure the thread does not get stripped.
Torque four screws in a crossing pattern to 9 in-
lbs with a 7/64 ball driver hex bit.
Step Action
