Service Kit Installation Procedures
906-0731-04-01 Rev. C ZOLL Ventilator Service Manual 4–91

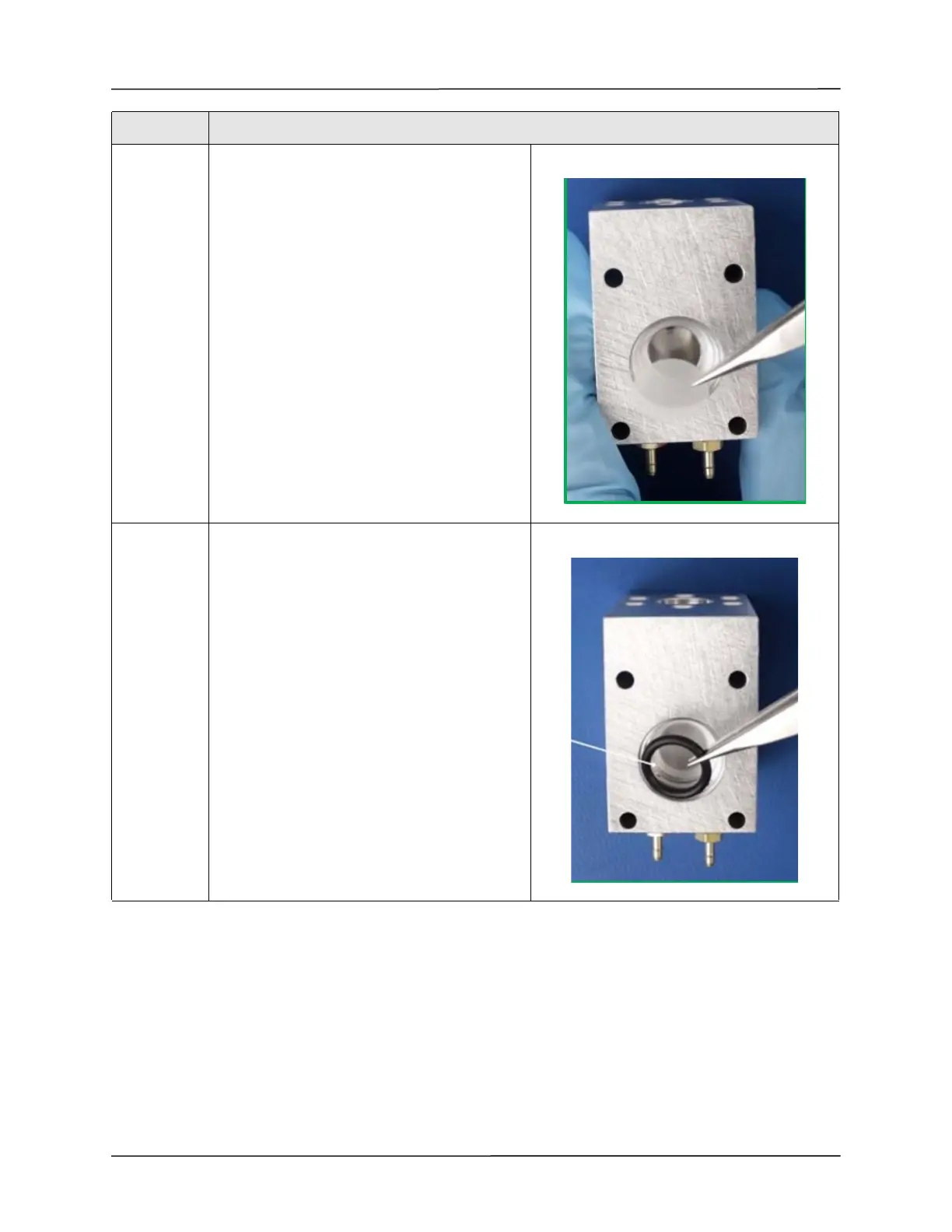

8 On the SPM Oxygen Inlet Manifold, insert the
Filter, Diffuser, .484 Dia. (P/N 465-0013-00).
NOTE: Ensure that it sits properly and flat on the
shoulder.
9 Insert the O-Ring ½" OD X 3/8" ID (P/N 340-0023-
00) into the SPM Oxygen Inlet Manifold with
tweezers.
NOTE: Ensure that it sits properly in the counter
bore.
