Service Kit Installation Procedures
4–104 www.zoll.com 906-0731-04-01 Rev. C

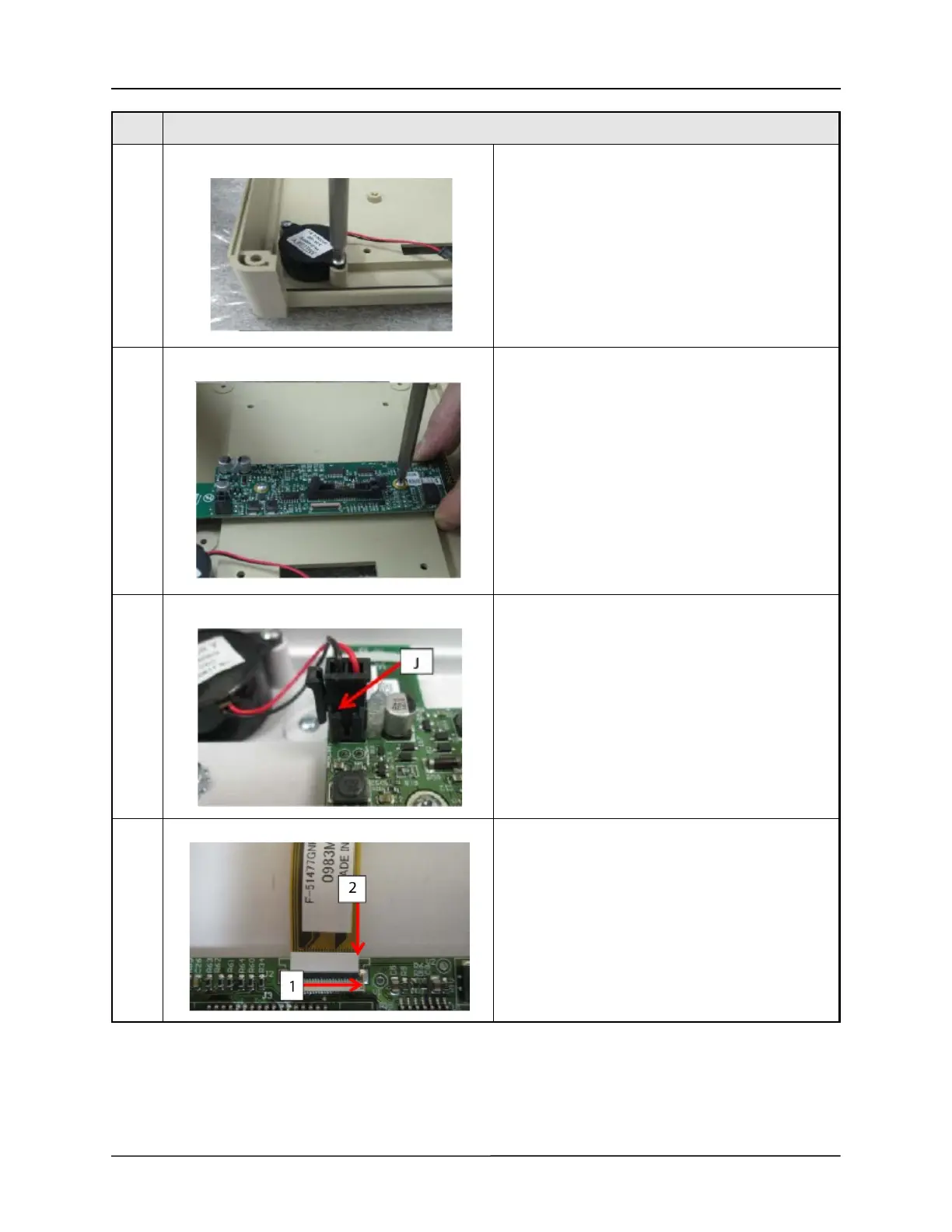

17 Install buzzer using two 4-40 X ¼ screws.
18 Install UIM adapter using two 4-40 X ¼ screws.
19 Ensure proper connector key orientation and attach
buzzer cable to connector J4 of UIM adapter.
20 1.) Make sure flex cable is aligned with the right side
of J2 on UIM adapter board.
2.) Insert flex cable into J2.
Step Procedure
