Service Kit Installation Procedures
906-0731-04-01 Rev. C ZOLL Ventilator Service Manual 4–105

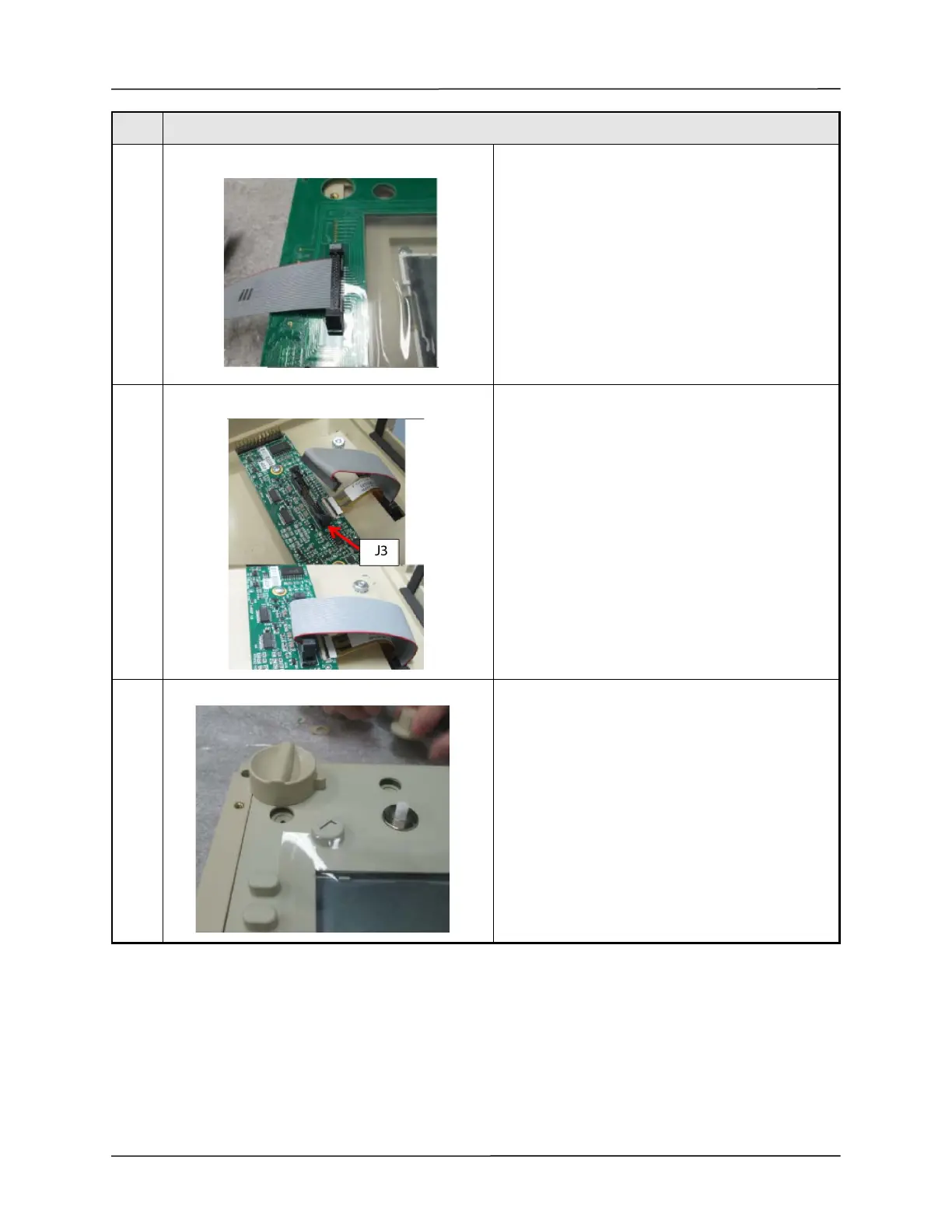

21 Paying attention to key orientation, Attach ribbon
cable to back of membrane panel assembly.
22 Ensure proper key orientation and attach membrane
panel ribbon cable to J3 connector on UIM adapter.
Ensure that the ribbon cable is pushed down to be
flattened as shown in the photo. Do not allow any
bulging of the ribbon cable, as it may interfere with
tubing.
23 Ensure proper key orientation and install power knob
to assembly.
Step Procedure
To Next Page
