Service Kit Installation Procedures
906-0731-04-01 Rev. C ZOLL Ventilator Service Manual 4–107

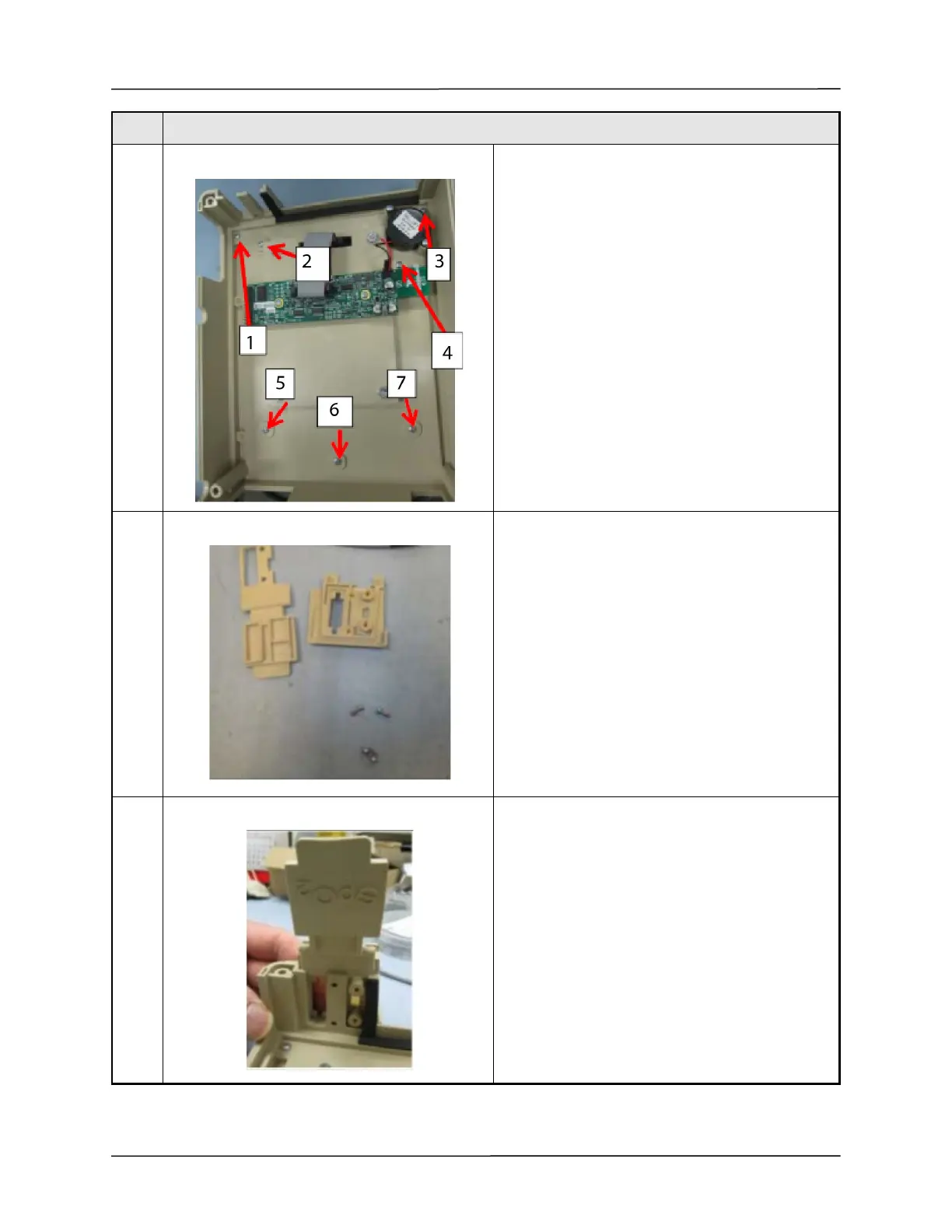

27 Fasten the Front Bezel to the front case using
quantity 7 of 4-40 X ¼" screws in locations indicated.
28 Prepare connector plate assembly for installation.
29 Hold cap and plate together and insert into case as
shown.
