Service Kit Installation Procedures
906-0731-04-01 Rev. C ZOLL Ventilator Service Manual 4–109

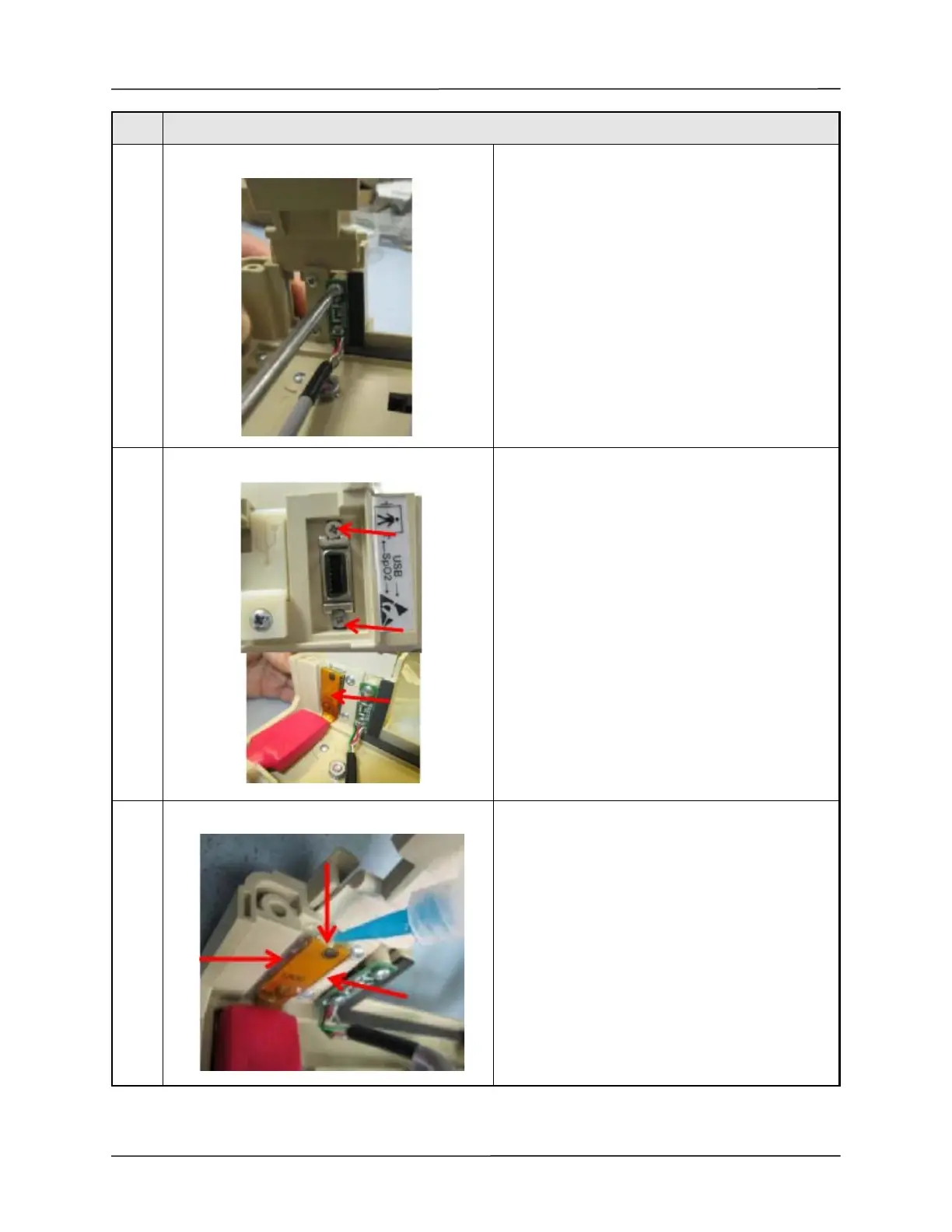

33 Fasten USB connector board onto case using quantity
(2) 4-40 x 3/16" Philips
34 Install Masimo plug into recess on Front Case as
indicated.
Fasten the Masimo plug to Front Case using quantity
(2) M2.5 x 5mm Philips flat head screws.
35 Perform after successful Pre-Test (#35)
Apply a bead of RTV around the perimeter of the
Masimo connector board to create a seal between
Front Case and board.
Step Procedure
