Service Kit Installation Procedures
906-0731-04-01 Rev. C ZOLL Ventilator Service Manual 4–29

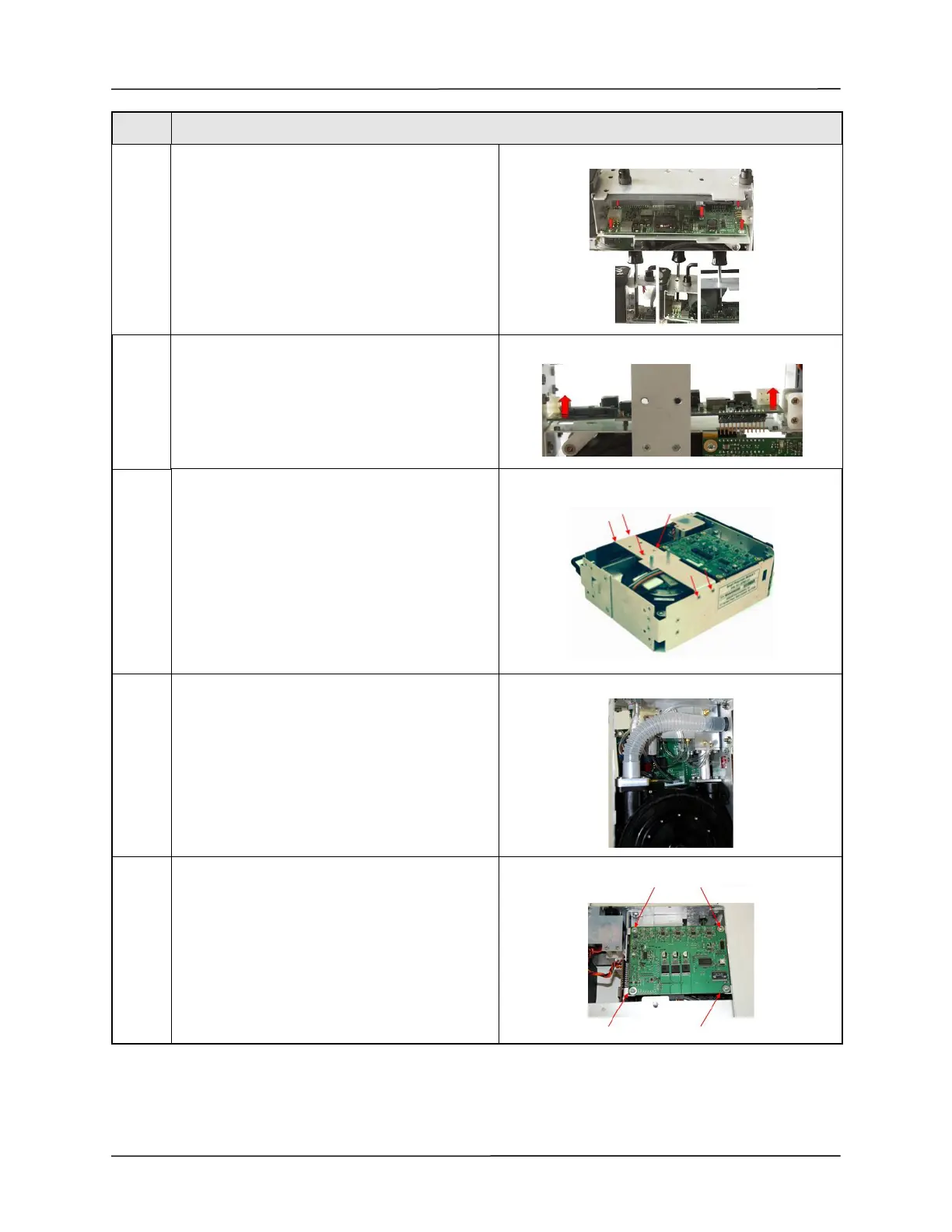

8 Loosen and remove the five 4-40 x 1/4 screws
holding the PIM board to the ventilator module.
Save these screws.
Move SpO
2
Insulator out of the way and insert
screwdriver through the holes to aid in removing
screws.
Note: Do not fold the SpO
2
Insulator.
9 Lift the PIM Board out of the ventilator module.
10 Remove the Dovetail Mounting Bracket (Loosen
and remove the 4 6-32 x 1/4" flathead screws on
the ends and 2 4-40 x ¼" flathead located towards
the middle of the bracket.
11 Remove the corrugated hose connecting the
Compressor Air Intake Base to the Compressor
intake port.
12 Remove the 4 4-40 x ¼" screws holding the SPM
PCB to the SPM.
Step Procedure
