343D SYSTEMS, INC.

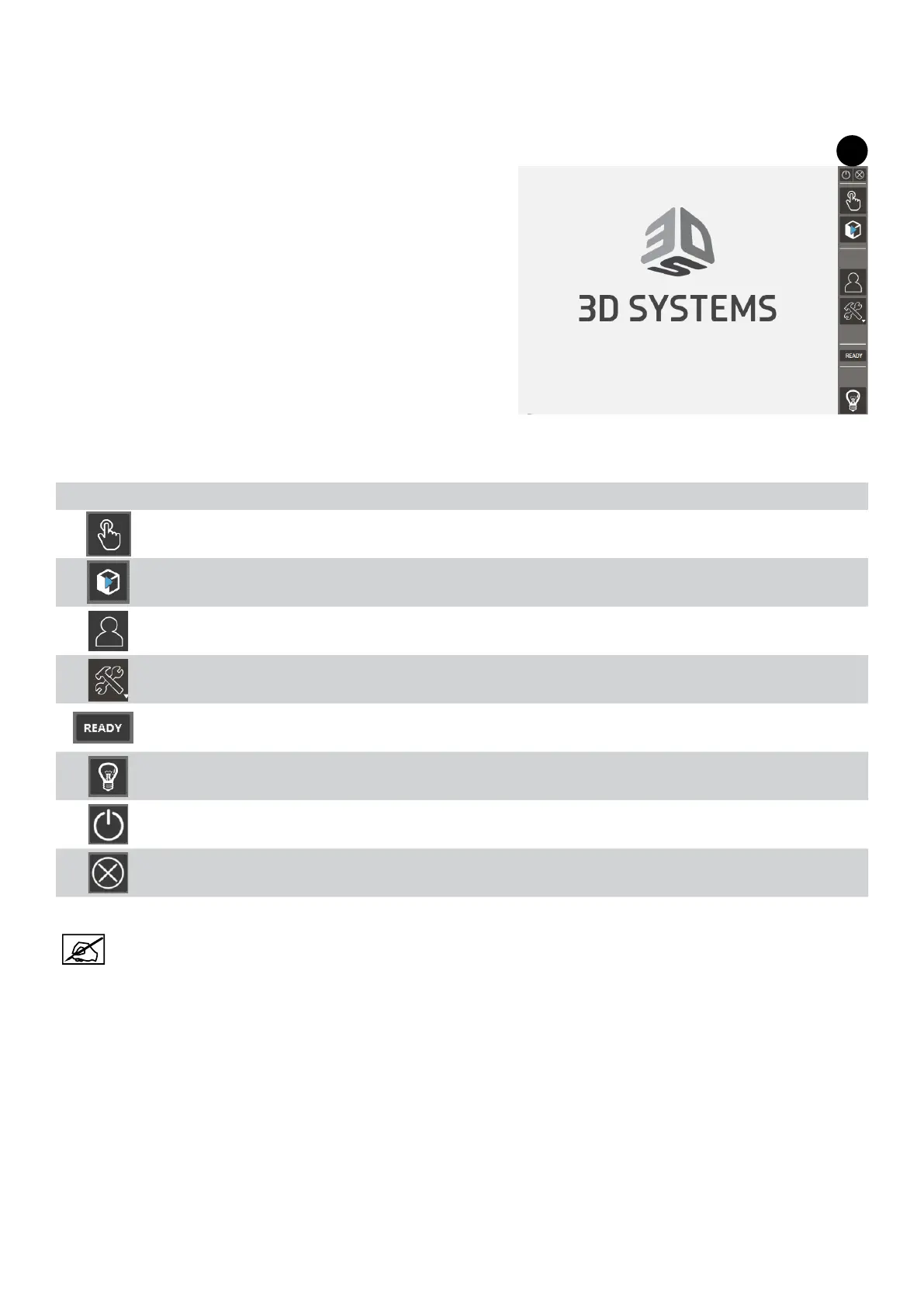

USER INTERFACE
At the start of the printer, the Operator level (of PX Control V2) is logged by default. Only Operator functions are available
from the main tool bar (1).
The main tool bar (1) consists of :
Icon Description
Access button for Preparation Menu (see section "Preparation menu" on page 35)
Access button for Manufacturing Menu (see section "Manufacturing menu" on page 43)
Access button for User Level Selection (see section "User level selection" on page 47)
Access button for Setting Menu (see section "Setting menu" on page 47)
Access button for the Machine Status page (see section "Machine Status menu" on page 54)
This button enables chamber lighting. It is always available for use
Machine off button (see section "Shutting printer down" on page 69)
Close Application button (see section "Closing / opening PX Control application" on page 69)
NOTE: The text displayed on the Machine Status access button indicates the current status of the
machine:
• INIT : the machine is initializing (during start-up or after an emergency shutdown),
• READY : the machine is operational,
• UNLOCK : the machine is in unlocked mode (front doors or sas door opened, or unlocked),
• RESET : the machine is reinitializing (after a STOP button, or a relock of the doors),
• MANUF : the machine is manufacturing,
• C.B. : the machine is on a cycling break, during manufacturing,
• PREPA : the machine is on a preparation cycling,
• MAINT : the machine is in maintenance mode.
PX Control 2.X.X.2
