Pannoramic SCAN II 2.2.0 User’s Guide 6.4 Maintenance
6.4 Maintenance
This section describes the most common maintenance solutions that can be performed by the user of
the product. For maintenance solutions not described in this manual, contact the service personnel.
6.4.1 Removing the protective covers
The protective covers of the Pannoramic® SCAN II must be opened in order to perform any
maintenance work, and also to eliminate errors, for example slide or magazine jamming.
Before removing the covers, exit the control software, switch off the 24 V power supply and
disconnect the power cables.
Warning!
Avoid leaning over the device when opening it.

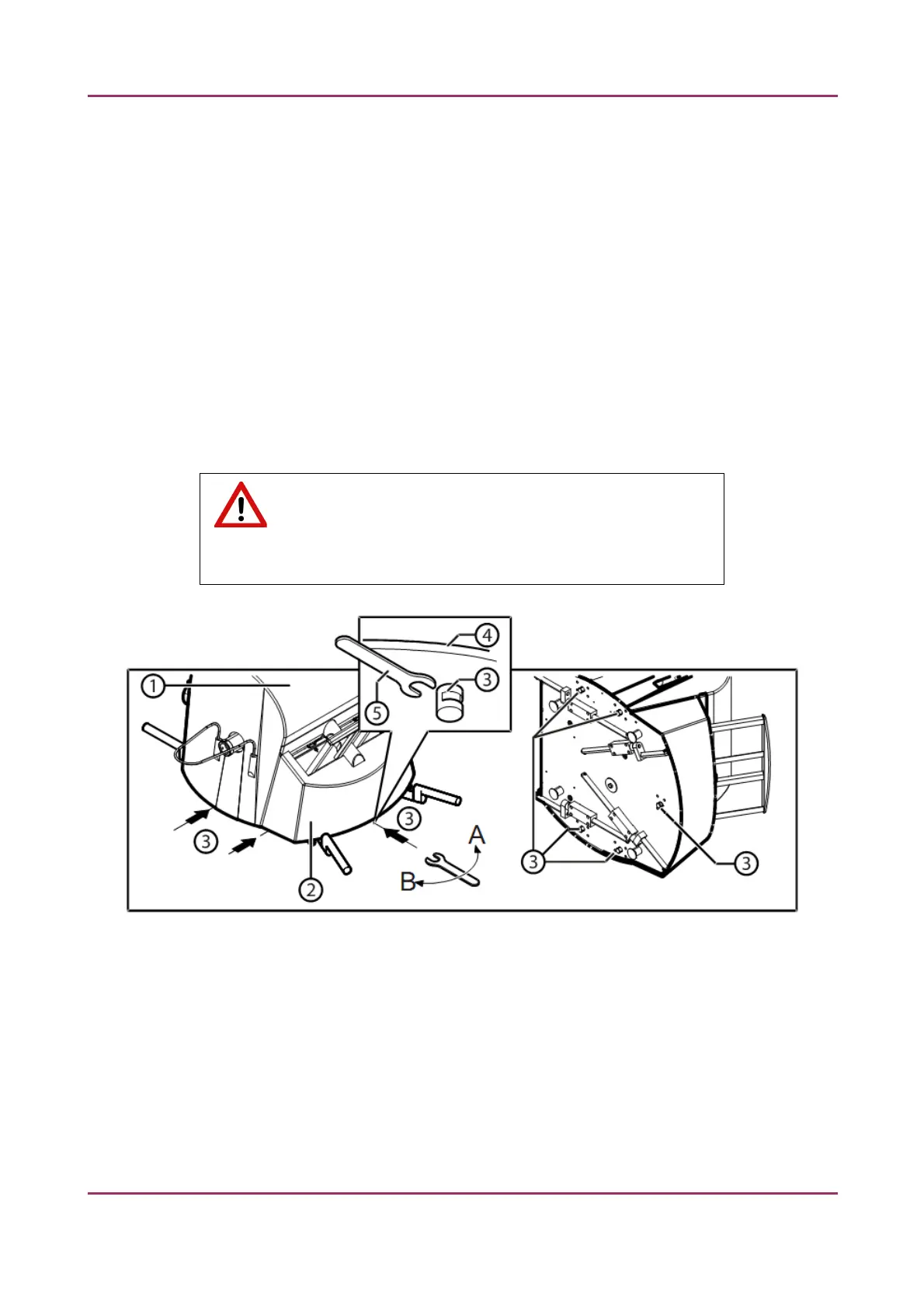

Figure 81 – Removal of covers
Five eccentric screws (3) are located on the bottom face of the base plate (4). They attach the covers
to the base plate.
1. Use an open-end wrench (W/F 10) (5) to turn the screws (3) on the lateral sides of the
Pannoramic® SCAN II by 90° anticlockwise, proceeding pair-wise (B). Use both hands to take
cover (1) carefully off upwards.
January 24, 2020 - Rev. 2 3DHISTECH Ltd. 138(156)
