Pannoramic SCAN II 2.2.0 User’s Guide 1.1.4 Base Unit
1.1.4 Base Unit
The following figure shows the main parts of the base unit.

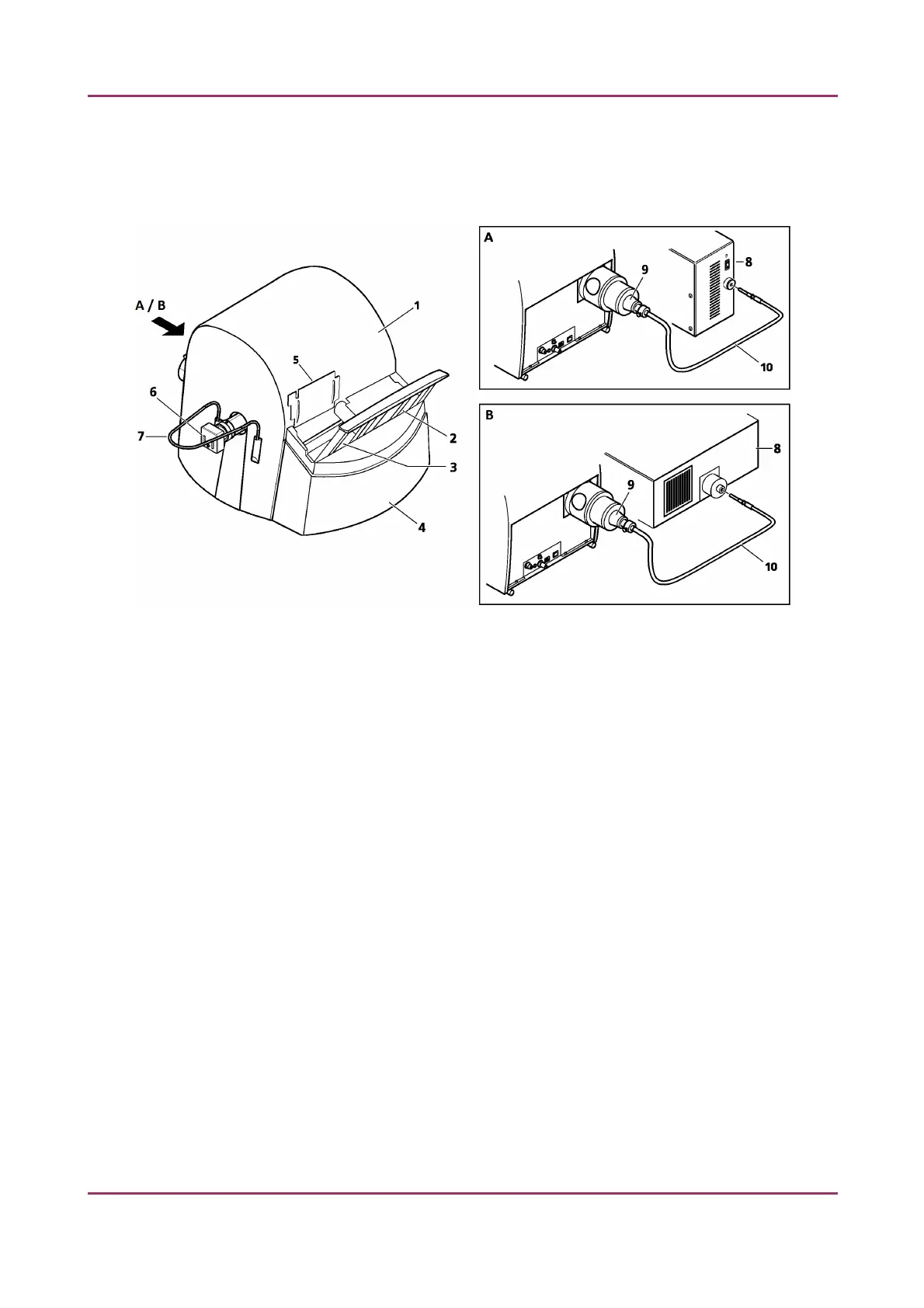

Figure 2 – Main parts of base unit
1. Protective cover
2. Output stack for magazines
3. Input stack for magazines
4. Protective cover for magazine loader
5. Magazine feeder door/cover
6. Point Grey Grasshopper 3 or pco.edge 5.5 camera
7. Protective rails
Fluorescent option A
8. Lumencor SOLA SM II fiber-coupled illumination unit (can be used with Point Grey Grasshopper 3
camera only)
9. Lumencor illumination adapter
10. Lumencor illumination cable
Fluorescent option B
8. Lumencor SPECTRA 6 Light Engine fiber-coupled illumination unit
9. Lumencor illumination adapter
10. Lumencor illumination cable
January 24, 2020 - Rev. 2 3DHISTECH Ltd. 17(156)
