Pannoramic SCAN II 2.2.0 User’s Guide 1.2 System Overview
1.2 System Overview
The standard scope of delivery of the product includes the following hardware and software
components.
1.2.1 Pannoramic® SCAN II system
The following figure shows the main parts of the Pannoramic® SCAN II system.

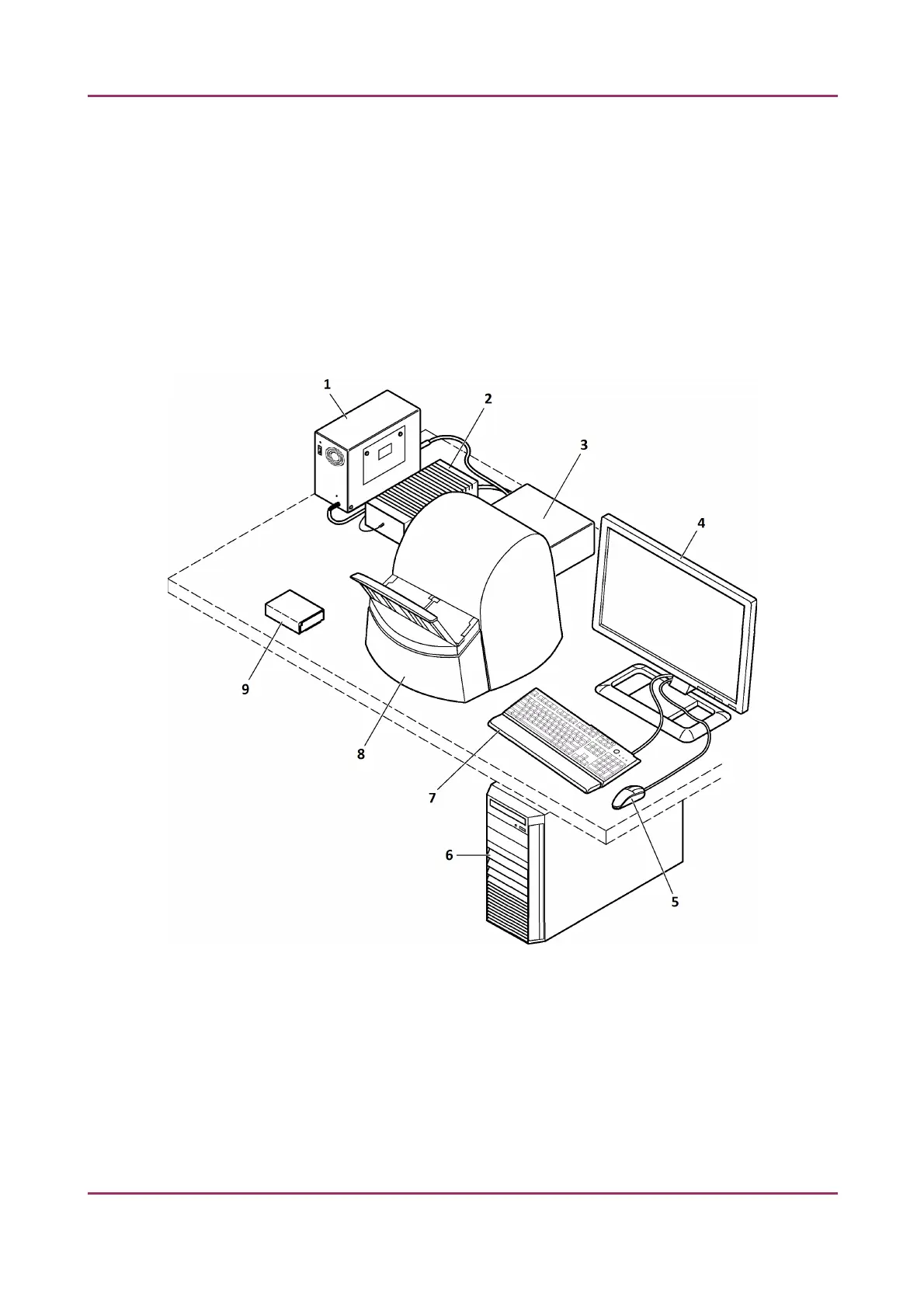

Figure 3 – Pannoramic® SCAN II system overview
1. Lumencor SOLA SM II fiber-coupled illumination unit (optional)
2. 24 V external power supply unit
3. Lumencor SPECTRA 6 Light Engine (optional)
4. Monitor
5. Mouse
January 24, 2020 - Rev. 2 3DHISTECH Ltd. 18(156)
