90 Parameters

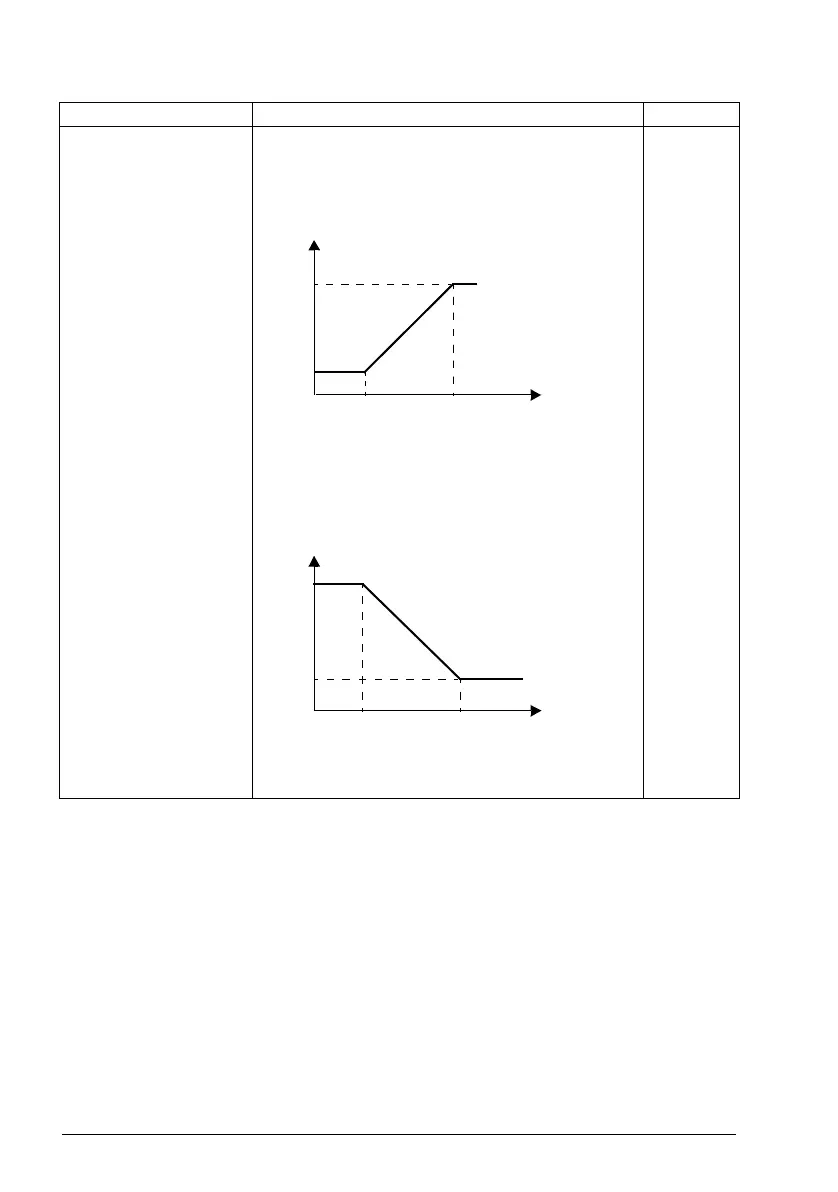

13.17 AO1 source min Defines the real minimum value of the signal (selected by
parameter 13.12 AO1 source) that corresponds to the
minimum required AO1 output value (defined by parameter
13.19 AO1 out at AO1 src min).
Programming 13.17 as the maximum value and 13.18 as the
minimum value inverts the output.
0.0
No. Name/Value Description Def/FbEq16
13.1813.17
13.20
13.19
I
AO1
(mA)
Signal (real)
selected by
13.12
I
AO1
(mA)
13.20
13.19
13.18 13.17
Signal (real)
selected by
13.12
