157

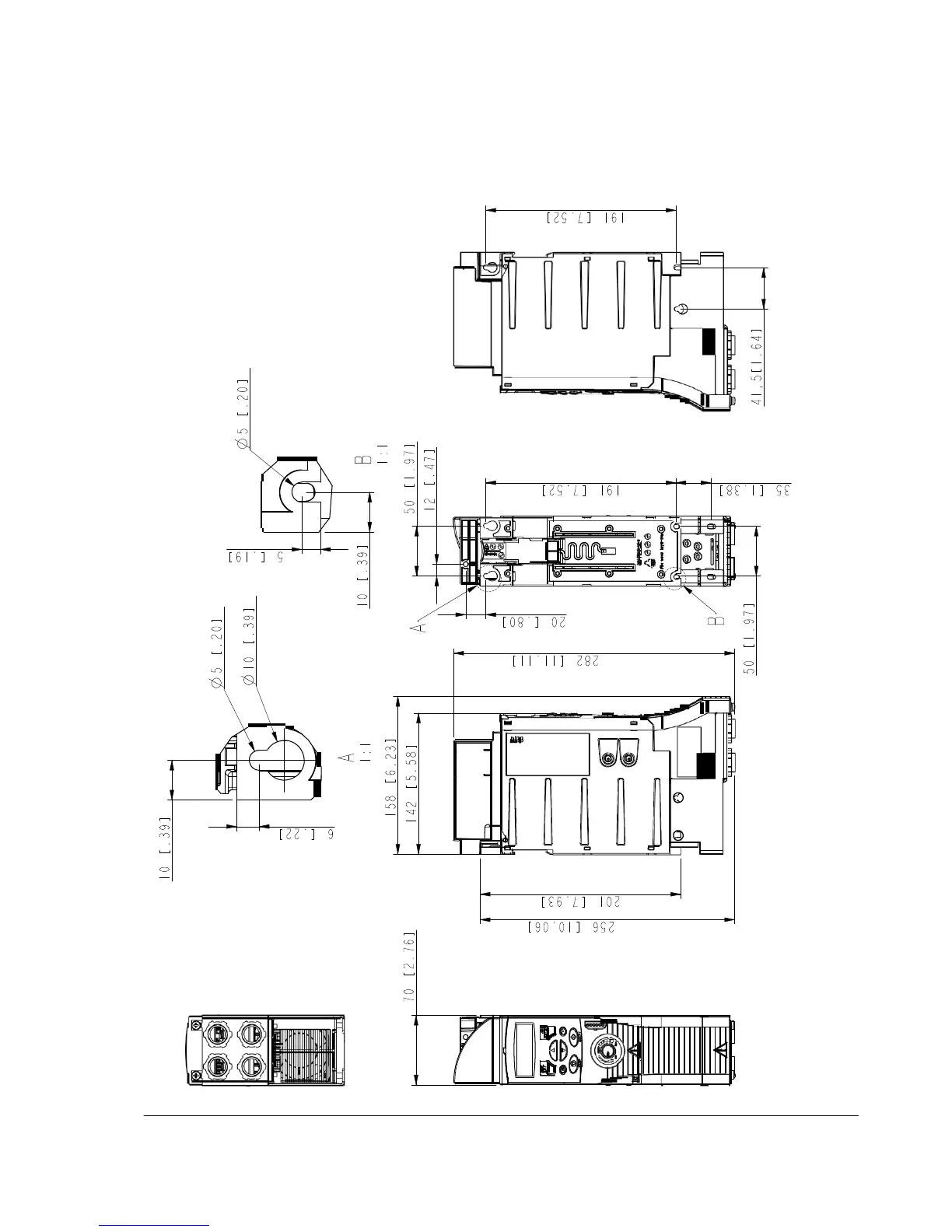

Dimension drawings
Frame sizes R0 and R1, IP20 / NEMA 1
3AFE68637929-A
Frame sizes R0 and R1, IP20 / NEMA 1
R1 and R0 are identical except for the fan at the top of R1.
EMC VAR
