ABB ACS150 series

22
Operation principle and hardware description
YWWRXXXX
3AFE 68581818
Ro HS
1
Type designation, see section Type designation key on
page 22
2
Degree of protection by enclosure (IP and UL/NEMA)
3
Nominal ratings, see section Ratings on page 137.
4
Serial number of format MYYWWRXXXX, where
M: Manufacturer
YY: 09, 10, 11, … for 2009, 2010, 2011, …
WW: 01, 02, 03, … for week 1, week 2, week 3, …
R: A, B, C, … for product revision number
XXXX: Integer starting every week from 0001
5
ABB MRP code of the drive
6
CE marking and C-Tick, C-UL US and RoHS marks
(the label of your drive shows the valid markings)
Al l

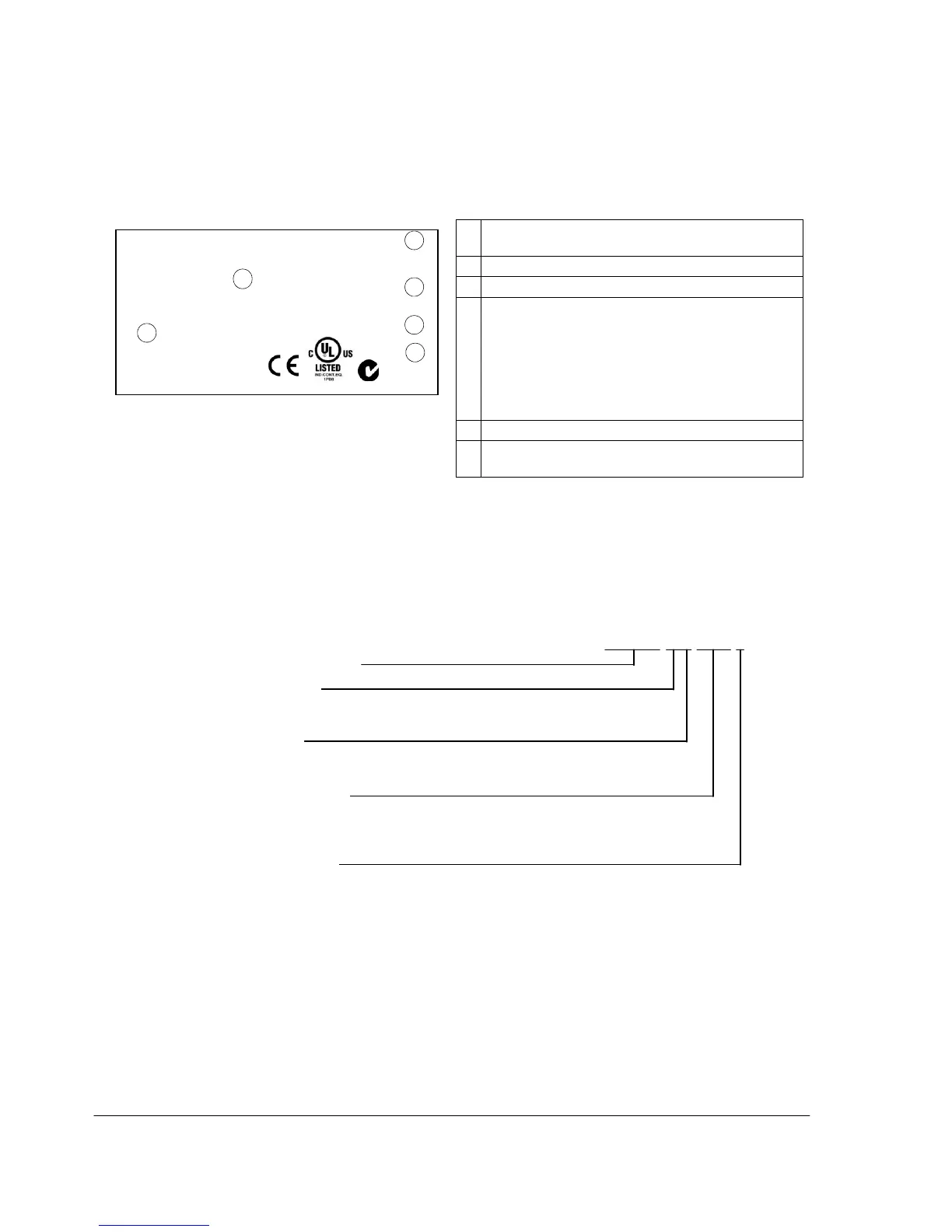

Type designation label
The type designation label is attached to the left side of the drive. An example label
and explanation of the label contents are shown below.
1
AC S150-03E -08A 8-4
1 P20 / UL Open type
2
111111111111111111111111111111111111111
4
4 kW (5 HP) S/N M YY WWR XXXX
U1 3 -380.480 V 11111 111111111111 111 111111 1111 1111111111
11
3
13.6 A
68581818
5
f1 4 8.63 Hz
RoHS
U2 3 -0. U1 V
6
12 8.8 A (150% 1/10 m in )
f 2 0 . 500 Hz
Type designation label
Type designation key
The type designation contains information on the specifications and configuration of
the drive. You find the type designation label attached to the drive. The first digits
from the left express the basic configuration, for example ACS150-03E-08A8-4. The
explanations of the type designation label selections are described below.
ACS150-03E-08A8-4
ACS150 product series
1-phase/3-phase
01 = 1-phase input
03 = 3-phase input
Configuration
E = EMC filter connected, 50 Hz frequency
U = EMC filter disconnected, 60 Hz frequency
Output current rating
In format xxAy, where xx indicates the integer part and y the fractional part,
for example, 08A8 means 8.8 A.
For more information, see section Ratings on page 137.
Input voltage range
2 = 200…240 V AC
4 = 380…480 V AC
